3721
Over wrapping machine
A highly functional solution for complete over wrapping of parallelepiped products such as cosmetic and toiletry items, the 3721 wraps with cellophane, PVC, PP and all reel-fed, heat-sealable film types, even extremely thin.
A highly functional solution for complete over wrapping of parallelepiped products such as cosmetic and toiletry items, the 3721 wraps with cellophane, PVC, PP and all reel-fed, heat-sealable film types, even extremely thin.
High quality individual or multiple wrapping for regular product.
Complete with a device to lift the film-driving rollers during product elevation, these machines enable the use of extremely thin films and avoid the film sliding around the product, thus obtaining the perfect over wrapping finish.
Designed to facilitate cleaning procedures, the equipment uses standard Siemens electrical componentry and a Siemens PLC. The oil-tight steel frame contains all motions and lubrication is by means of oil bath. Production for the 3721 stands at 80 cycles/min.
Changeover procedures are fast and easy, so as to avoid unwanted downtime.
settings_applications
Production Plant
IMA BFB
3721 Highlights
1.
Film print unit available.
2.
Automatic reel splicing device
3.
Tear tape unit available
4.
Biggest reel range on the market.
5.
Film unwinding by driven drums to move film under guillotine knife.
6.
Several different sealing unit available.
- Technical Data

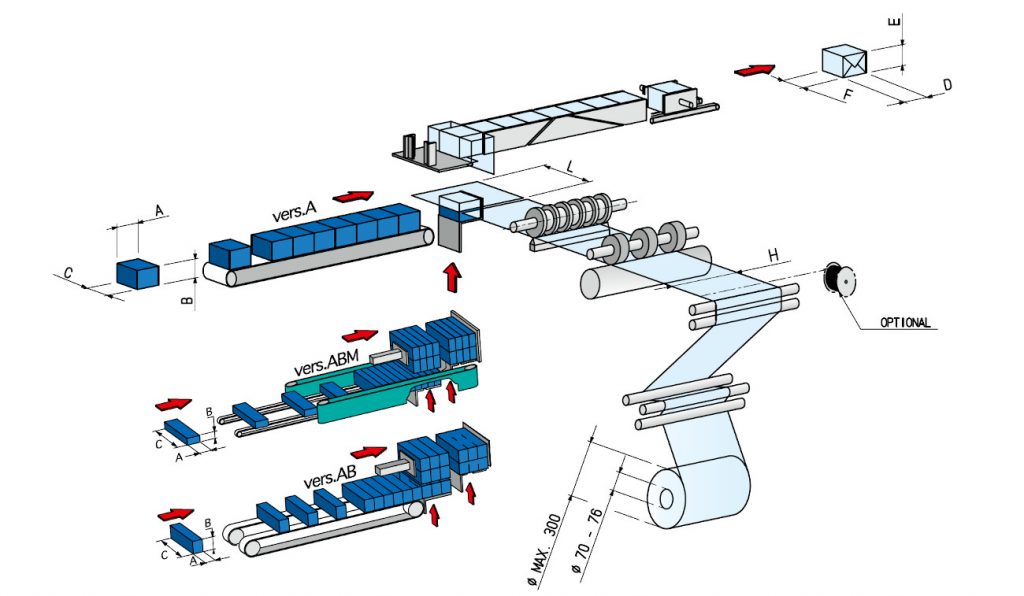

- Machine Layout
| TECHNICAL DATA 3721 | ||||
| Wrapping film | CELLOPH.PVC.PE.PP.KRAFT | |||
| Product dimension | A | B | C | |
| 3721 | Min. | 65 | 23 | 60 |
| Max. | 300 | 150 | 400 | |
| Speed | 80 cycles/min. | |||
