HIGH SPEED ASSEMBLY AND PACKAGING LINE FOR INJECTABLES
Standard and customised machines that assemble pens and autoinjectors, complete with carton labelling, secondary packaging and end-of-line equipment.
MADE-TO-MEASURE TURNKEY LINES
A smart combination of dedicated machines tailored to customer needs.
Integrated solutions that are adjusted according to production targets and configured to achieve short lead times as well addressing specific requirements in terms of assembly and packaging.
Where integration accounts for a variety of requirements, there is always an answer delivering top performance.
Comprising different assembly and packaging stages, the solutions provided are set to work as a turnkey line in which variables are considered and parameters defined to suit the overall objective. The ASSEMBLA line is both robust and reliable. It ensures seamless process integration, handling outputs up to 400 parts per minute (ppm). The lean design incorporates efficient material handling, requires minimal maintenance, and consumes low energy, making it an optimal solution for modern manufacturing needs. Cartoning solutions are selected according to line speeds with continuous or intermittent motion and subsequent carton labelling on our labeller for tamper-evident and bollino labels. Case-packing machines end the line together with integrated or stand-alone palletizing systems.
IMA MED-TECH is the business unit of IMA AUTOMATION dedicated exclusively to designing and building turn-key assembly solutions for the medical device industry. Leveraging innovative technologies and deep process knowledge, we deliver engineered solutions at every stage of medical device assembly projects. With a global team of over 600 professionals, we provide essential support, from proof of principle studies to design-for-manufacturing evaluations.
We assist in the design and development of devices from the initial stages, right through the implementation of high-output, fully automated assembly lines. As devices progress from low to high-output automation, we take an analytical approach to risk assessment, helping to avoid costly redesigns and significantly reducing lead times.
Established as part of IMA AUTOMATION’s strategy to strengthen its leadership in the MedTech industry, IMA MED-TECH offers state-of-the-art assembly systems for a range of applications, from drug delivery injectors and inhalers, wearables, diagnostics to contact lens packaging, ensuring full regulatory compliance.

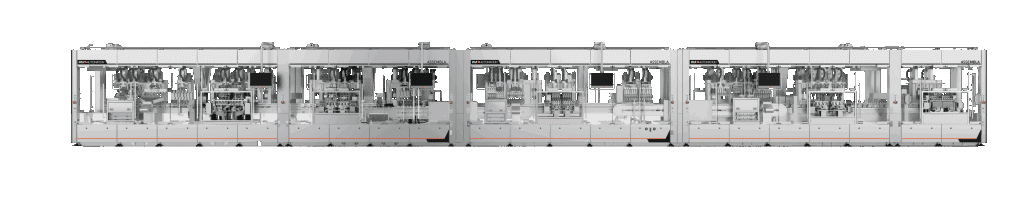

ASSEMBLA up to 400ppm
The ASSEMBLA delivers high-volume production (up to 400 ppm) with a linear magnetic transport system. Its lean design ensures minimal setup and maintenance, while its modular, compact footprint provides flexibility. Low noise, no particle generation, and CFR Part 11 compatible for regulatory compliance.
Discover our Machines
Array
(
[cover_macro] => 32930
[cover_name_type] => txt
[cover_name] => X
[cover_descriptor] => Intermittent motion cartoner
[cover_focus_on] => 1
[cover_focus_content] => X Series multipurpose intermittent motion cartoner, is the best price/performance ratio solution in its product range. Thanks to the use of both mechanical and robotized feeding systems, it can handle the widest product variety in the market.
[buttons_on] =>
[cover_focus_buttons] => Array
(
[buttons_on] =>
[view_default] =>
[buttons_items] =>
)
[news] =>
[thumbnail] => 28705
[tag_line] => X, love at first sight
[overview] => X Series is available in four versions:
- X1 and XL1
- X2 and XL2, servo-driven versions
The maximum versatility, in terms of products to be packed and carton dimension sizes, is a key feature of this Series. Moreover, with its compact footprint and balcony design, X offers to you also a huge flexibility in the organizing of lines. The compactness of the machine is also demonstrated with the integrated T&T solution inside the frame, keeping the same standard length.
X is also very intuitive: no special training are needed for the operators. It has very low maintenance costs, central issue in the current marketing strategies of pharmaceutical companies, and a fast changeover thanks to a number of size parts reduced to the minimum.
[overview_buttons] => Array ( [buttons_on] => [view_default] => [buttons_items] => ) [sustainability] =>
This system allows the use of recycled cardboards.
[highlights_on] => 1 [highlights] => Array ( [0] => Array ( [highlight] => Multi-purpose. ) [1] => Array ( [highlight] => Best performance price ratio in its class. ) [2] => Array ( [highlight] => Compact foot print. ) [3] => Array ( [highlight] => Feeding systems for a wide range of solutions. ) [4] => Array ( [highlight] => IMA Safe Roll-One, leaflet folding unit. ) [5] => Array ( [highlight] => Easy to handle. ) [6] => Array ( [highlight] => Low maintenance costs. ) ) [focus_on] => 1 [focus] => Array ( [image] => 1101 [content] => Cost effective and flexible feeding systems are available at IMA Safe, which offer a wide range of solutions for both pharma and extra pharma fields. [buttons] => Array ( [buttons_on] => 1 [view_default] => [buttons_items] => Array ( [0] => Array ( [acf_fc_layout] => file [button_id] => [button_class] => [text] => DOWNLOAD BROCHURE [icon] => description [link] => 21537 [tab] => ) [1] => Array ( [acf_fc_layout] => video [button_id] => [button_class] => [text] => Watch and Discover our feeding systems [icon] => play_circle_outline [link] => zWyrR5uTcDg [autoplay] => 1 ) ) ) ) [technical_data] =>| X SERIES – TECHNICAL DATA | ||
| MODEL | X1 – X2* | XL1 – XL2* |
| Production output | Up to 90 cartons/min. | Up to 60 cartons/min. |
| Carton dimensions | ||
| Width (A) | min. 15-105 max. | min. 15-165 max. |
| Height (B) | min. 12-90 max. | min. 12-100 max. |
| Length (H) | min. 65-220 max. | min. 65-220 max. |
| A+B | 195 max. | 240 max. |
*Servo-driven version
[layouts] => Array ( [0] => Array ( [image] => 17856 ) ) [technical_video] => [technical_video_image] => [brochure] => Array ( [ID] => 28483 [id] => 28483 [title] => X SERIES_EN [filename] => X-SERIES_EN-1.pdf [filesize] => 2433291 [url] => https://ima.it/pharma/wp-content/uploads/sites/2/2016/12/X-SERIES_EN-1.pdf [link] => https://ima.it/pharma/machine/x1/x-series_en-2/ [alt] => [author] => 19 [description] => [caption] => [name] => x-series_en-2 [status] => inherit [uploaded_to] => 371 [date] => 2024-02-28 09:29:29 [modified] => 2024-02-28 09:29:36 [menu_order] => 0 [mime_type] => application/pdf [type] => application [subtype] => pdf [icon] => https://ima.it/pharma/wp-includes/images/media/document.png ) [main_video] => JMCrbpE0xtc [gallery] => Array ( [0] => Array ( [image] => 1105 [description] => Carton magazine ) [1] => Array ( [image] => 1106 [description] => Carton pick-up and opening ) [2] => Array ( [image] => 1110 [description] => Product insertion into the carton ) [3] => Array ( [image] => 1107 [description] => Coding unit ) [4] => Array ( [image] => 1103 [description] => Carton closing ) [5] => Array ( [image] => 1104 [description] => Carton outfeed and rejection ) ) [related] => no [versions_on] => [addon_on] => 1 [technologies] => Array ( [0] => 96 [1] => 87 [2] => 88 [3] => 120 [4] => 121 ) [rel_market] => Array ( ) [clone_list] => Array ( [0] => 4 ) [contact] => marketing.safe@ima.it [no_index] => [tile_description] => Intermittent motion cartoner. X Series multipurpose intermittent motion cartoner, is the best price/performance ratio solution in its product range. Thanks to the use of both mechanical and robotized feeding systems, it can handle the widest product variants range in the market. [tile_speed] => Up to 90 cartons/min [line_step] => Array ( [0] => 11 ) [aseptic] => both [market_products] => Array ( [0] => 15 [1] => 602 [2] => 613 [3] => 622 [4] => 603 [5] => 618 [6] => 615 [7] => 616 [8] => 627 [9] => 625 [10] => 617 [11] => 621 [12] => 624 [13] => 620 [14] => 626 [15] => 628 [16] => 619 [17] => 2624 [18] => 623 ) [market_packs] => Array ( [0] => 2176 [1] => 2177 ) [market_brands] => Array ( [0] => 3861 ) [market_plants] => Array ( [0] => 3861 ) [thread_tag] => [market_packs_specs] => Array ( ) [addon_items] => Array ( [0] => Array ( [image] => 2478 [description] => Roll-One - The IMA patented leaflet folding unit is designed to fold flat sheets using a simple but innovative technology indipendent from the leaflet thickness. To change the leaflet size is just a matter of one simple and fast part replacement. ) [1] => Array ( [image] => 3806 [description] => Track & Trace - X Series allows a perfect integration inside the frame of the machine, without any extension, with: printing system, camera and gluing system (tamper evident closure) ) ) [output_on] => [addon_title] => Good To Know [embed_iframe] => [seo_title] => X1: Intermittent motion cartoner [seo_description] => X1 Series multipurpose intermittent motion cartoner, is the best price/performance ratio solution in its product range. [no_follow] => [seo_image] => 11893 [form_price] => [body_class] => [canonical_url] => )
X
Intermittent motion cartoner.
X Series multipurpose intermittent motion cartoner, is the best price/performance ratio solution in its product range. Thanks to the use of both mechanical and robotized feeding systems, it can handle the widest product variants range in the market.
X, love at first sight
Array
(
[cover_macro] => 2675
[cover_name_type] => txt
[cover_name] => SENSITIVE AP400 3T
[cover_descriptor] => Labelling machine for cartons
[cover_focus_on] => 1
[news] =>
[thumbnail] => 29060
[tag_line] => Sensitive to serialisation
[overview] => Versatile by design, the SENSITIVE AP400 3T can be supplied in many different configurations according to customer requirements: one labelling head for vignette application, two for tamper-evident sealing or three for both vignette and tamper-evident implementation.
User-friendliness is a hallmark of this machine. Easy operation and quick maintenance are guaranteed.
[overview_buttons] => Array
(
[buttons_on] =>
[view_default] =>
[buttons_items] => Array
(
[0] => Array
(
[acf_fc_layout] => file
[button_id] =>
[button_class] =>
[text] => download brochure
[icon] => description
[link] => 325
[tab] =>
)
[1] => Array
(
[acf_fc_layout] => video
[button_id] =>
[button_class] =>
[text] => watch the video
[icon] => play_arrow
[link] =>
[autoplay] => 1
)
)
)
[sustainability] =>
[highlights_on] => 1
[focus_on] => 1
[technical_data] => | TECHNICAL DATA SENSITIVE AP400 3T | |
| Maximum output (cartons/minute) | 400 |
| Installed power (kW) | 3.5 (depending on machine configuration) |
| Standard voltage | 400 V – 50 Hz – 3PH + PE |
| A (mm)* | 400 – 600 – 800 – 1100 |
| Weight (kg) – approximate value | 1,000 |
| Vignette label size (mm) |
Length 15 – 60 |
| Vignette reel diameter (mm) | Up to 400 |
| Tamper-evident label size (mm) |
Length 15-35 |
| Tamper-evident reel diameter (mm) | Up to 400 |
| Labelling accuracy (mm) | ± 1 |
| * Depending on carton size | |
| CARTON DIMENSIONS | |
| A (mm) | 20 to 130* |
| B (mm) | 12 to 100 |
| C (mm) | 50 to 210 |
| * Larger dimension will be managed by customer configurations | |
When product protection from damage and tampering is mandatory, the carton labels play a fundamental role. Conceived with this “must” in mind, the SENSITIVE AP400 3T ensures accurate and precise label application while reaching a high production speed.
[buttons_on] => [buttons_items] => Array ( [0] => Array ( [acf_fc_layout] => file [button_id] => [button_class] => [text] => download brochure [icon] => description [link] => 325 [tab] => ) [1] => Array ( [acf_fc_layout] => video [button_id] => [button_class] => [text] => watch the video [icon] => play_arrow [link] => [autoplay] => 1 ) ) [cover_focus_buttons] => Array ( [buttons_on] => [view_default] => [buttons_items] => Array ( [0] => Array ( [acf_fc_layout] => file [button_id] => [button_class] => [text] => download brochure [icon] => description [link] => 325 [tab] => ) [1] => Array ( [acf_fc_layout] => video [button_id] => [button_class] => [text] => watch the video [icon] => play_arrow [link] => [autoplay] => 1 ) ) ) [highlights] => Array ( [0] => Array ( [highlight] => Positive carton transport system ensuring smooth transfer throughout the working area. ) [1] => Array ( [highlight] => Brushless technology offering maximum labelling precision. ) [2] => Array ( [highlight] => Easy access to the working area. ) [3] => Array ( [highlight] => Automatic rejection of cartons with non-conforming labels or faultily printed data. ) [4] => Array ( [highlight] => No need to change parts even when handling different carton sizes. ) [5] => Array ( [highlight] => Inkjet or laser printers can be fitted to print Data Matrix code and human readable data on the carton. ) [6] => Array ( [highlight] => Intuitive HMI for machine monitoring and supervision of data collection. ) ) [focus] => Array ( [image] => 2677 [content] => Track & Trace already starts inside the SENSITIVE AP400 3T where the label dispensing and application unit works perfectly in sync with the carton transport system and with the optical fibre positive rejection system. [buttons] => Array ( [buttons_on] => [view_default] => [buttons_items] => ) ) [rel_market] => Array ( [0] => 7 ) [clone_list] => Array ( ) [contact] => marketing.life.it@ima.it [no_index] => [versions_on] => [addon_on] => [technologies] => Array ( [0] => 119 [1] => 120 [2] => 122 [3] => 121 ) [tile_description] => When product protection from damage and tampering is mandatory, the carton labels play a fundamental role. Conceived with this “must” in mind, the SENSITIVE AP400 TE 3T ensures accurate and precise label application while reaching a high production speed. [tile_speed] => Up to 400 cartons/minute [line_step] => Array ( [0] => 11 ) [aseptic] => non_aseptic [market_products] => Array ( [0] => 15 [1] => 602 [2] => 613 [3] => 622 [4] => 603 [5] => 618 [6] => 615 [7] => 616 [8] => 627 [9] => 625 [10] => 617 [11] => 621 [12] => 624 [13] => 620 [14] => 626 [15] => 628 [16] => 619 [17] => 2624 [18] => 623 ) [market_packs] => Array ( [0] => 2176 [1] => 2177 [2] => 2178 ) [market_brands] => Array ( [0] => 3860 ) [market_plants] => Array ( [0] => 3860 ) [thread_tag] => [market_packs_specs] => Array ( ) [output_on] => [seo_image] => [seo_title] => SENSITIVE AP400 TE 3T: Labelling Machine for Cartons [seo_description] => SENSITIVE AP400 TE 3T ensures accurate and precise label application when product protection from damage and tampering is mandatory. [embed_iframe] => [form_price] => [no_follow] => [body_class] => )
SENSITIVE AP400 3T
When product protection from damage and tampering is mandatory, the carton labels play a fundamental role. Conceived with this “must” in mind, the SENSITIVE AP400 TE 3T ensures accurate and precise label application while reaching a high production speed.
Sensitive to serialisation
Array
(
[embed_iframe] =>
[form_price] =>
[contact] => info.eol@ima.it
[no_index] =>
[thread_tag] =>
[tile_description] => SIDE LOADING CASE PACKING MACHINE. Medium speed case packer designed to handle the widest range of products and materials used in the pharmaceutical industry.
[tile_speed] => 10 cycles/min.
[cover_macro] => 14803
[cover_name_type] => txt
[cover_name] => CPH2
[cover_descriptor] => Side loading case packing machine
[cover_focus_on] => 1
[cover_focus_content] => Medium speed case packer designed to handle the widest range of products and materials used in pharmaceutical, with maximum ease of use and total control of the packaging process
[buttons_on] =>
[cover_focus_buttons] => Array
(
[buttons_on] =>
[view_default] =>
[buttons_items] =>
)
[news] =>
[thumbnail] => 27927
[tag_line] => Fit for the future
[overview] => Fully automatic side loading case packer designed to satisfy all of your current and future case packing requirements.
The machine has been built to maximize efficiency and ease of use in an ever increasingly demanding work place, to guarantee complete line clearance and to ensure total access to all modules.
The CPH2 is designed to ensure total control throughout all stages of the serialization process.
Flexibility, maximum efficiency, total access and total control make the CPH2 a casepacker of new generation.
[overview_buttons] => Array
(
[buttons_on] =>
[view_default] =>
[buttons_items] =>
)
[sustainability] =>
[highlights_on] => 1
[highlights] => Array
(
[0] => Array
(
[highlight] => The new 830 mm high case magazine ensures easy loading of cases. Correct case feeding to the
picking area is guaranteed by a bottom driven belt.
)
[1] => Array
(
[highlight] => Designed to ensure total access to all machine modules: all parts of the machines can be reached from the operator’s side.
)
[2] => Array
(
[highlight] => Forced opening of the case through two arms allows reliable operations even in case of square shippers or low quality material.
)
[3] => Array
(
[highlight] => Simple design servo driven stacking unit with easy access to cartons collating area. Stacking operation is carried out right in front of the erected case.
)
[4] => Array
(
[highlight] => A servo driven movable hopper follows the cartons collation up into the case and guarantees security of case content.
)
[5] => Array
(
[highlight] => Quick tool-free size changeover with limited amount of adjustments. Fast release system by means of clip switches (on/off): no parts need to be unscrewed with keys.
)
)
[focus_on] => 1
[versions_on] => 1
[addon_on] =>
[output_on] => 1
[technical_data] => | CPH2 TECHNICAL DATA | |||
| Case dimensions | A | B | C |
| Min. | 220 | 100 | 90 |
| Max. | 600 | 400 | 400 |
| Product dimensions | a | b | c |
| Min. | 25 | 22 | 60 |
| Max. | 590 | 70/150 | 220 |
| Speed | 10 cases/min. | ||
[layouts] => Array ( [0] => Array ( [image] => 28738 ) ) [technical_video] => [technical_video_image] => [brochure] => Array ( [ID] => 28561 [id] => 28561 [title] => CPH2_EN [filename] => CPH2_EN-1.pdf [filesize] => 1854235 [url] => https://ima.it/pharma/wp-content/uploads/sites/2/2019/03/CPH2_EN-1.pdf [link] => https://ima.it/pharma/machine/cph2/cph2_en-2/ [alt] => [author] => 29 [description] => [caption] => [name] => cph2_en-2 [status] => inherit [uploaded_to] => 14719 [date] => 2024-03-05 21:56:21 [modified] => 2024-03-05 21:56:38 [menu_order] => 0 [mime_type] => application/pdf [type] => application [subtype] => pdf [icon] => https://ima.it/pharma/wp-includes/images/media/document.png ) [main_video] => TP2JLN5I_rY [gallery] => Array ( [0] => Array ( [image] => 14732 [description] => Case magazine ) [1] => Array ( [image] => 28562 [description] => Case opening and folding ) [2] => Array ( [image] => 28563 [description] => Carton stacking ) [3] => Array ( [image] => 14730 [description] => Main pusher ) [4] => Array ( [image] => 28564 [description] => Case closing ) [5] => Array ( [image] => 28565 [description] => Camera read with liftable pusher ) ) [line_step] => Array ( [0] => 7 ) [aseptic] => non_aseptic [market_products] => Array ( [0] => 15 [1] => 602 [2] => 613 [3] => 622 [4] => 603 [5] => 618 [6] => 615 [7] => 616 [8] => 627 [9] => 625 [10] => 617 [11] => 621 [12] => 624 [13] => 620 [14] => 626 [15] => 628 [16] => 619 [17] => 2624 [18] => 623 ) [market_packs] => Array ( [0] => 2180 ) [market_packs_specs] => Array ( ) [market_brands] => Array ( [0] => 3869 ) [market_plants] => Array ( [0] => 3869 ) [rel_market] => Array ( [0] => 3 [1] => 4 [2] => 6 [3] => 7 ) [clone_list] => Array ( [0] => 12 ) [no_follow] => [seo_image] => [seo_title] => [seo_description] => [output_items] => [related] => no [technologies] => Array ( [0] => 105 [1] => 106 [2] => 120 [3] => 122 ) [versions_thumbnail] => 28741 [versions_tag_line] => Case Packer - Palletizer integrated versions [versions_overview] =>
CPH2 is available in different palletizer-integrated versions, according to the output required:
CPH2-RP2
With automatic replacement of the full pallet and case buffering during pallet replacement or with two pallet stations; once one pallet is complete, the robot starts loading the second pallet
CPH2-RP4
With 4 pallet stations for greater autonomy. When the pallet is complete, the automatic transport moves the pallet to the exit area and replaces it with an empty one.
[versions_overview_buttons] => Array ( [buttons_on] => [view_default] => [buttons_items] => ) [focus] => Array ( [image] => 14735 [content] => AGGREGATION MODULE. The overall minimal footprint and the cantilever design for improved accessibility ensure total control throughout all stages of the serialization process. The machine can be equipped with a compact module housing labelling units and cameras for aggregation purposes. [buttons] => Array ( [buttons_on] => [view_default] => [buttons_items] => ) ) [versions_title] => [versions] => [body_class] => [output_items_stripes] => [canonical_url] => https://ima.it/end-of-line/machine/cph2/ )
