Intermittent motion cartoner

X Series multipurpose intermittent motion cartoner, is the best price/performance ratio solution in its product range. Thanks to the use of both mechanical and robotized feeding systems, it can handle the widest product variety in the market.

X Series multipurpose intermittent motion cartoner, is the best price/performance ratio solution in its product range. Thanks to the use of both mechanical and robotized feeding systems, it can handle the widest product variety in the market.

X, love at first sight

X Series is available in four versions:

  • X1 and XL1
  • X2 and XL2, servo-driven versions

The maximum versatility, in terms of products to be packed and carton dimension sizes, is a key feature of this Series. Moreover, with its compact footprint and balcony design, X offers to you also a huge flexibility in the organizing of lines. The compactness of the machine is also demonstrated with the integrated T&T solution inside the frame, keeping the same standard length.

X is also very intuitive: no special training are needed for the operators. It has very low maintenance costs, central issue in the current marketing strategies of pharmaceutical companies, and a fast changeover thanks to a number of size parts reduced to the minimum.

nature_people

Sustainability

This system allows the use of recycled cardboards.

IMA Safe
settings_applications Production Plant
IMA Safe

X Highlights

1.
Multi-purpose.
2.
Best performance price ratio in its class.
3.
Compact foot print.
4.
Feeding systems for a wide range of solutions.
5.
IMA Safe Roll-One, leaflet folding unit.
6.
Easy to handle.
7.
Low maintenance costs.
Cost effective and flexible feeding systems are available at IMA Safe, which offer a wide range of solutions for both pharma and extra pharma fields.
  • Technical Data
  • Machine Layout
X SERIES – TECHNICAL DATA
MODEL X1 – X2* XL1 – XL2*
Production output  Up to 140 cartons/min. Up to 90 cartons/min.
Carton dimensions
Width (A) min. 15-105 max. min. 15-165 max.
Height (B) min. 12-90 max. min. 12-100 max.
Length (H) min. 65-220 max. min. 65-220 max.
A+B 195 max. 240 max.

*Servo-driven version

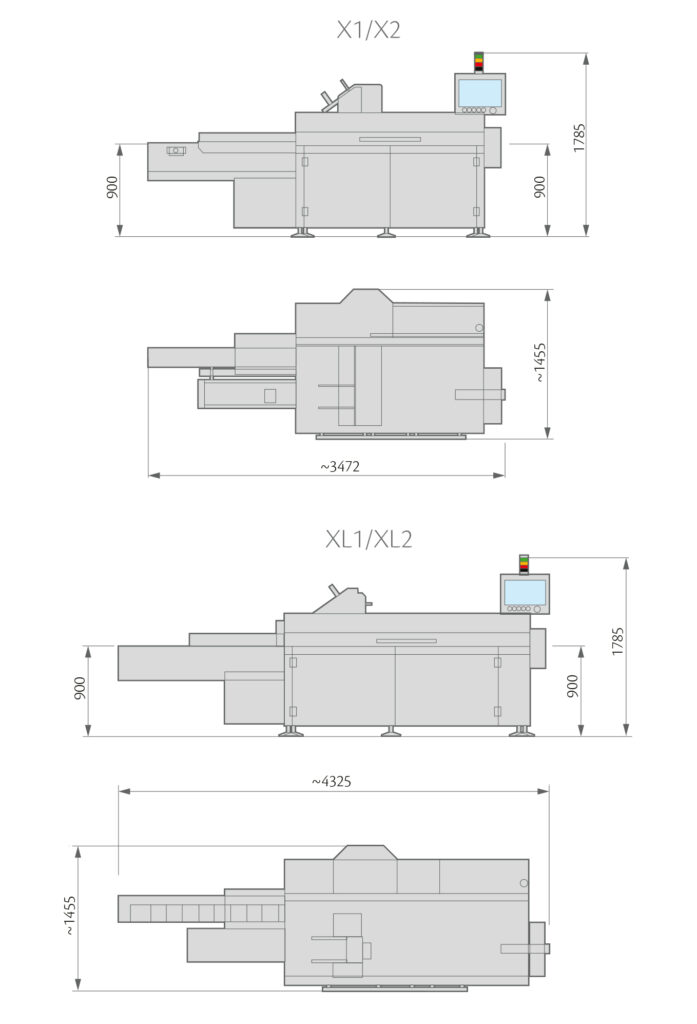

X Layout

X Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Carton magazine
search
IMA Safe Roll-One
search
Carton pick-up and opening
search
Product insertion into the carton
search
Coding unit
search
Carton closing
search
Carton outfeed and rejection
