GS
Coating pans
GS Coating Equipment features innovative technology with an awareness of the issues related to environment, energy saving and reliability. Available in different models, GS machines allows the processing of all product shapes and sizes.
GS Coating Equipment features innovative technology with an awareness of the issues related to environment, energy saving and reliability. Available in different models, GS machines allows the processing of all product shapes and sizes.
The coating pan that made history.
GS Coating Equipment is the ideal solution for all manufacturing needs: powder layering, film and sugar coating.
Patented exhausting or blowing paddles convey the drying air through the cores bed. This makes for the reduction of process times and thus the air volume needed.
settings_applications
Production Plant
IMA Active
GS Highlights
1.
Perfect mixing and uniform distribution of coating material thanks to the shape of the pan and surface smoothness.
2.
Patented drying system.
3.
Different paddle sizes for higher flexibility in terms of pan working capacities.
4.
Automatic product load and discharge.
The smooth surface of the solide wall pan enables simple and fast cleaning operations. Different cleaning programmes, comprising washing, rinsing and discharge, can be developed according to different products and stored in the recipes.
Lab Version.
Using the same highly advanced technologies as those developed for the production range, GS laboratory equipment allows maximum flexibility and easy scale-up. A high degree of automation ensures easy operations and maintenance procedures can be applied.
- Technical Data

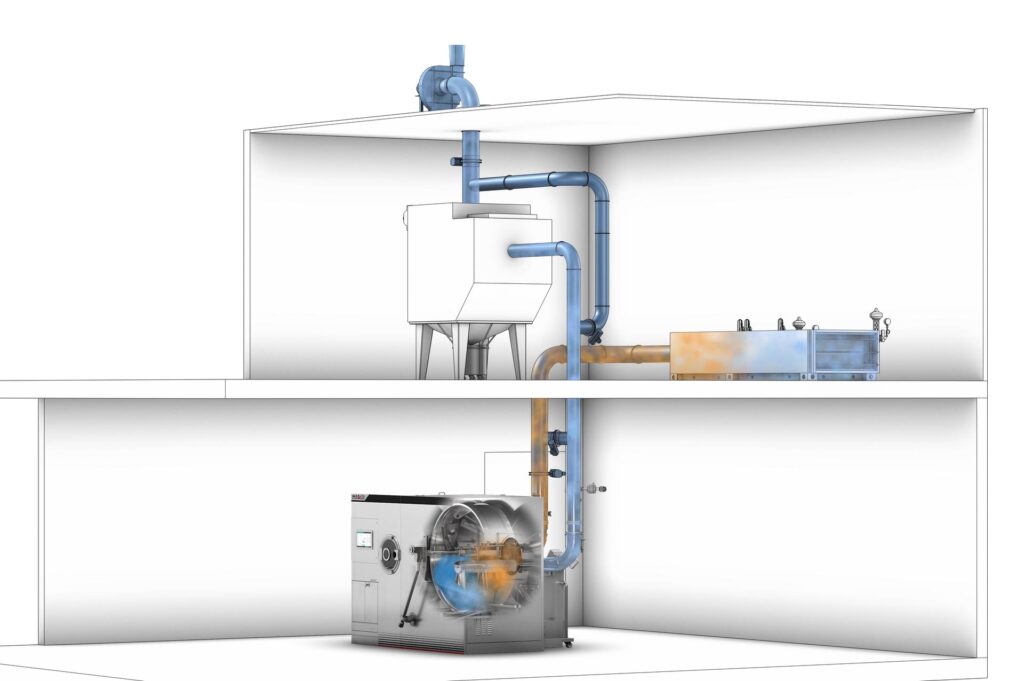

- Machine Layout
| TECHNICAL DATA GS | ||||||||
| Model | GS 25 | GS 70 | GS 150 | GS 300 | GS 400 | GS 450 | GS 600 | GS 700 |
| Minimum/maximum capacity (litres) | 13÷25 | 40÷70 | 70÷150 | 150÷300 | 200÷400 | 225 ÷ 450 | 350 ÷ 650 | 350 ÷ 700 |
| Pan diameter (mm) | 800 | 1,050 | 1,280 | 1,580 | 1,630 | 1,700 | 2,000 | 2,050 |
| Pan mouth diameter (mm) | 300 | 400 | 450 | 520 | 730 | |||
| Pan motor power (kW) | 0.37 | 1.1 | 1.5 | 3 | 4 | 5.5 | ||
| Process air delivery (m³/h) | 350 | 1,000 | 1,400 | 2,500 | 3,000 | 4,000 | ||
