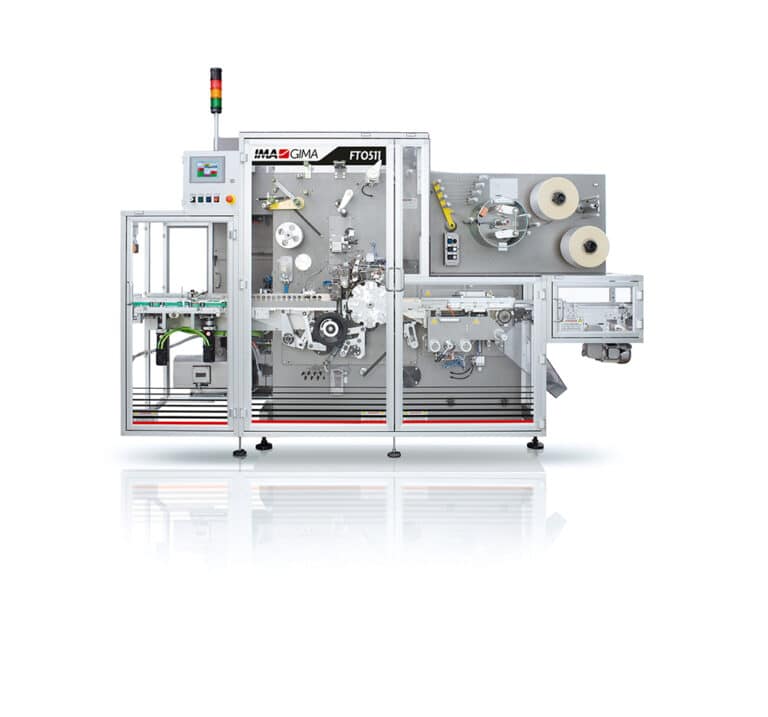

FTO511
Overwrapping
For ultra-high-speed overwrapping of display boxes, the FTO511 ensures maximum performance and incorporates a continuous carton feeding system to prevent products from pushing against each other, both at the start and at the end of the line.
For ultra-high-speed overwrapping of display boxes, the FTO511 ensures maximum performance and incorporates a continuous carton feeding system to prevent products from pushing against each other, both at the start and at the end of the line.
Ultra-high-speed overwrapping
The FTO511 handles up to 500 ppm and features a number of technically advanced solutions to ensure top quality appearance of the packages, enhancing the value of the confectionery items inside.
These include an inline tear-tape unit, a double reel holder and an automatic film splicing device.
settings_applications
Production Plant
FTO511 Highlights
1.
Fitted with a tear-tape unit, a double reel holder, and an automatic film splicing device.
2.
Processing capability for all heat-sealable films, such as PP, PVC and Cellophane.
3.
Web-width up to 150 mm running on reels with max. diameter 300 mm and min. core diameter 76.2 mm.
4.
Oversize or undersize can be evaluated by our technical staff.
- Technical Data
- Machine Layout
| TECHNICAL DATA FT0511 | ||
| Production range | Min. | Max. |
| A | 30 | 75 |
| B | 12 | 30 |
| C | 30 | 140 |
| Production | Up to 500 ppm | |
| Average power consumption | 20 kW | |
| Operating pressure | 6 bar | |
| Maximum air consumption | 100 Nl/min. | |
| Weight | 2,200 Kg | |
