SP98
Semi-automatic tray packing
The SP98D double-head loading-device machine is conceived to package hard soup cubes into cardboard boxes
The SP98D double-head loading-device machine is conceived to package hard soup cubes into cardboard boxes
Semi-automatic tray packing machine for soup cubes
The SP98D double-head loading-device machine is conceived to package hard soup cubes into cardboard boxes. The machine divides and stratifies the soup cubes according to the selected size, thus creating the pack. During the ejection step, the aforesaid pack will be introduced into a cardboard box.
settings_applications
Production Plant
IMA R.I.
Product output options preview
- Technical Data

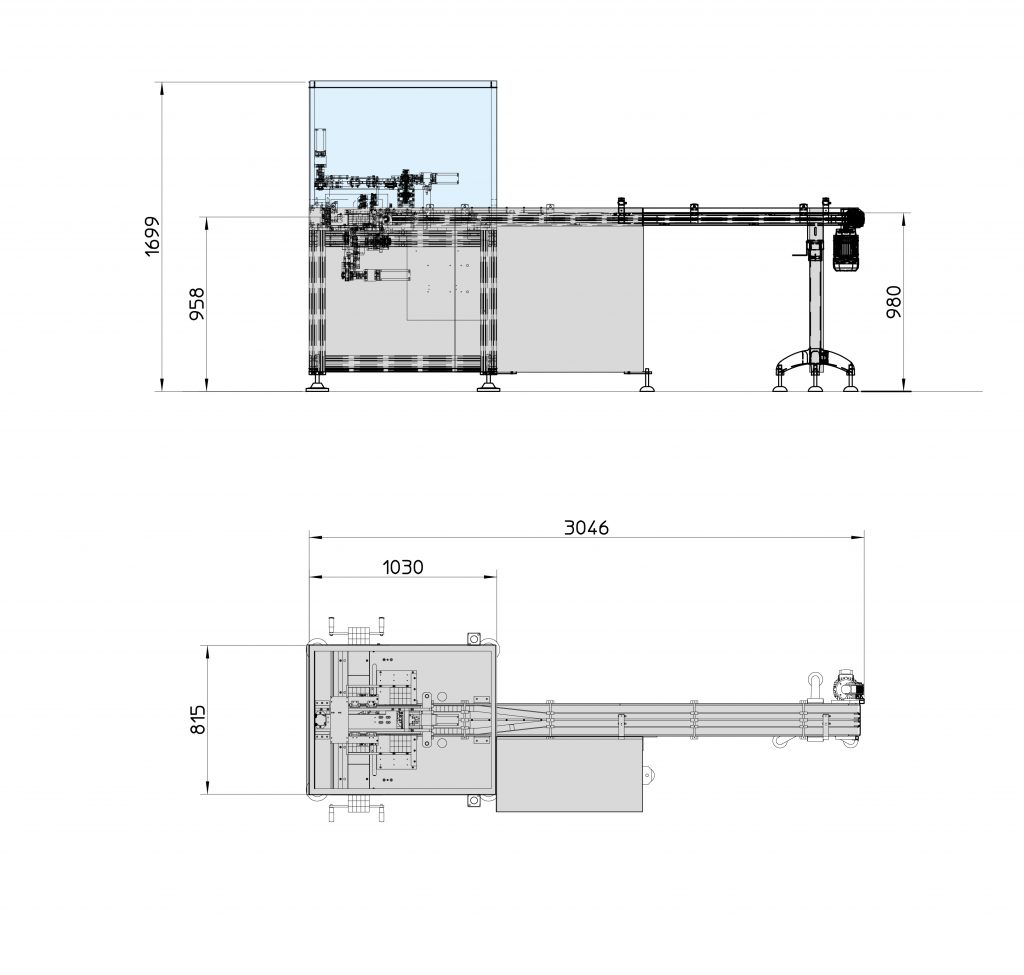

- Machine Layout
| Production capacity | Up to 800 products/min. |
| Full load current | 3P x 400 Volt – 50 Hz – 5 Amp |
| Compressed air consumption | 50 Nl/min. (min. op. pressure 6 bar) |
| Weight | 600 Kg Approx. |
| Bundle configuration | From 5x3x3 up to 5x5x5 |
|
Product dimensions
|
A (min ÷ max) |
| 23 max. | |
| B (min ÷ max) | |
| 31 max. | |
| C (min ÷ max) | |
| 10 max. | |
| Weight | |
| 11 g |
