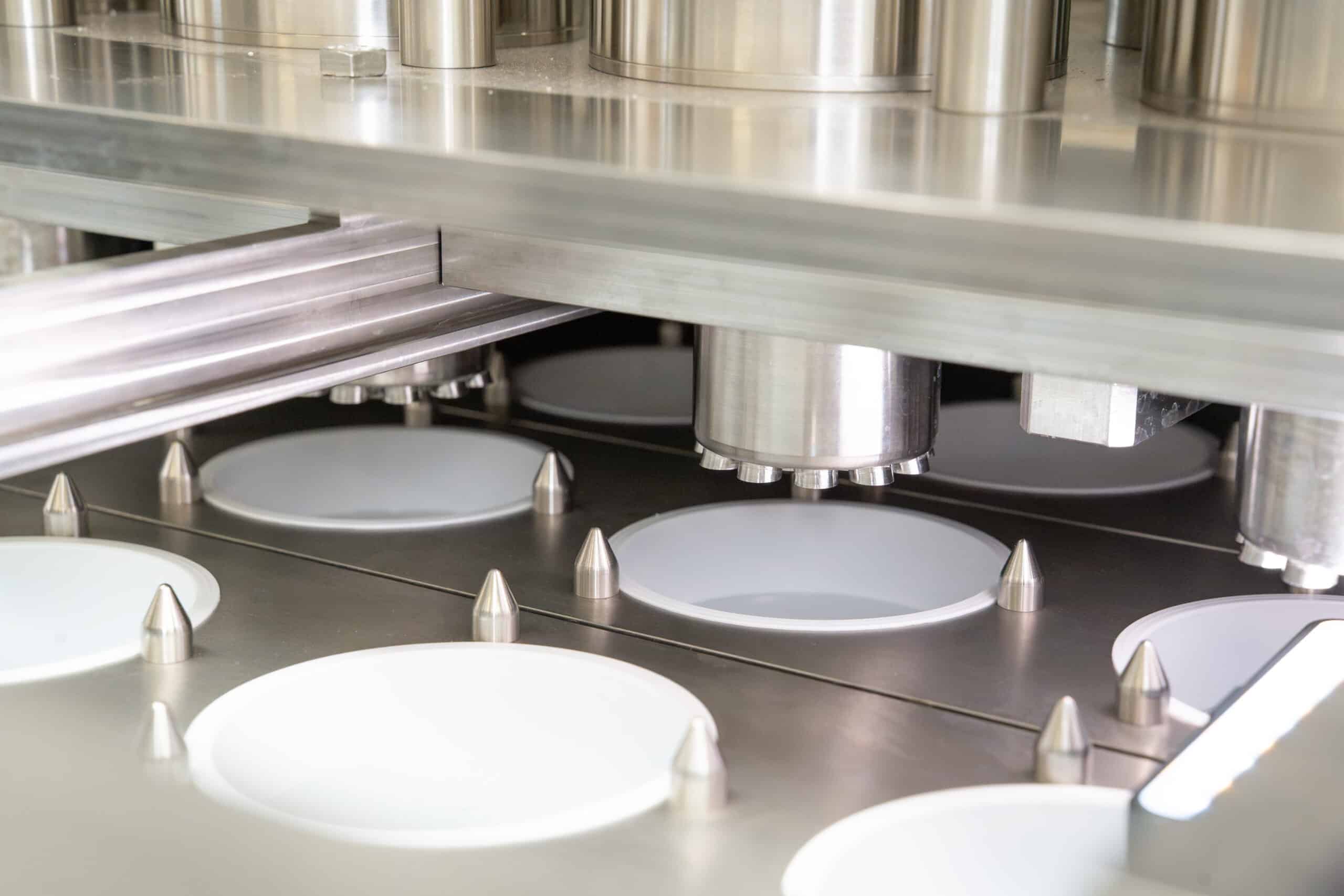

Based on the design of the proven HAMBA BK concept, this filling and sealing machine for pre-made cups stands for more efficiency, availability and flexibility. The BK II is controlled via a vertical shaft and curves. The machine can be designed with up to 12 lanes and is available as a single cycle, double cycle or even with two (2) preinstalled formats. The HAMBA BK II is also suitable for aseptic filling. Robustness and a compact design characterize this type of machine.
The HAMBA BK II handles all types of yoghurt, curd, aerated products, desserts, jelly-products and cereals.
When fitted with a special filling system, the HAMBA BK II also fills fat based products including margarine and spreads, while further food or non-food pasty products can be dealt with on demand.
TECHNICAL DATA HAMBA BK II |
||||
Model | Cups per cycle | Round (max. Ø) | Height (max.) | Nominal output |
4M* | 4 | 127 mm | 130 mm | up to 9.600 cups/h |
6M* | 6 | 127 mm | 130 mm | up to 14.400 cups/h |
8 | 8 | 95 mm | 130 mm | up to 19.200 cups/h |
10 | 10 | 95 mm | 130 mm | up to 24.000 cups/h |
12 | 12 | 75 mm | 130 mm | up to 28.800 cups/h |
6/6 | 12 | 130 mm | 130 mm | up to 28.800 cups/h |
8/8 | 16 | 95 mm | 130 mm | up to 38.400 cups/h |
10/10 | 20 | 95 mm | 130 mm | up to 48.000 cups/h |
12/12 | 24 | 75 mm | 130 mm | up to 57.600 cups/h |
* square and rectangular cups can also be handled | ||||
TYPICAL MATERIALS | ||||
Cups | Pre-made cups made of paper, PET, PP, PS, K3 or compound materials* | |||
Lids | Pre-cut lids made of aluminium foil, PET or PP* | |||

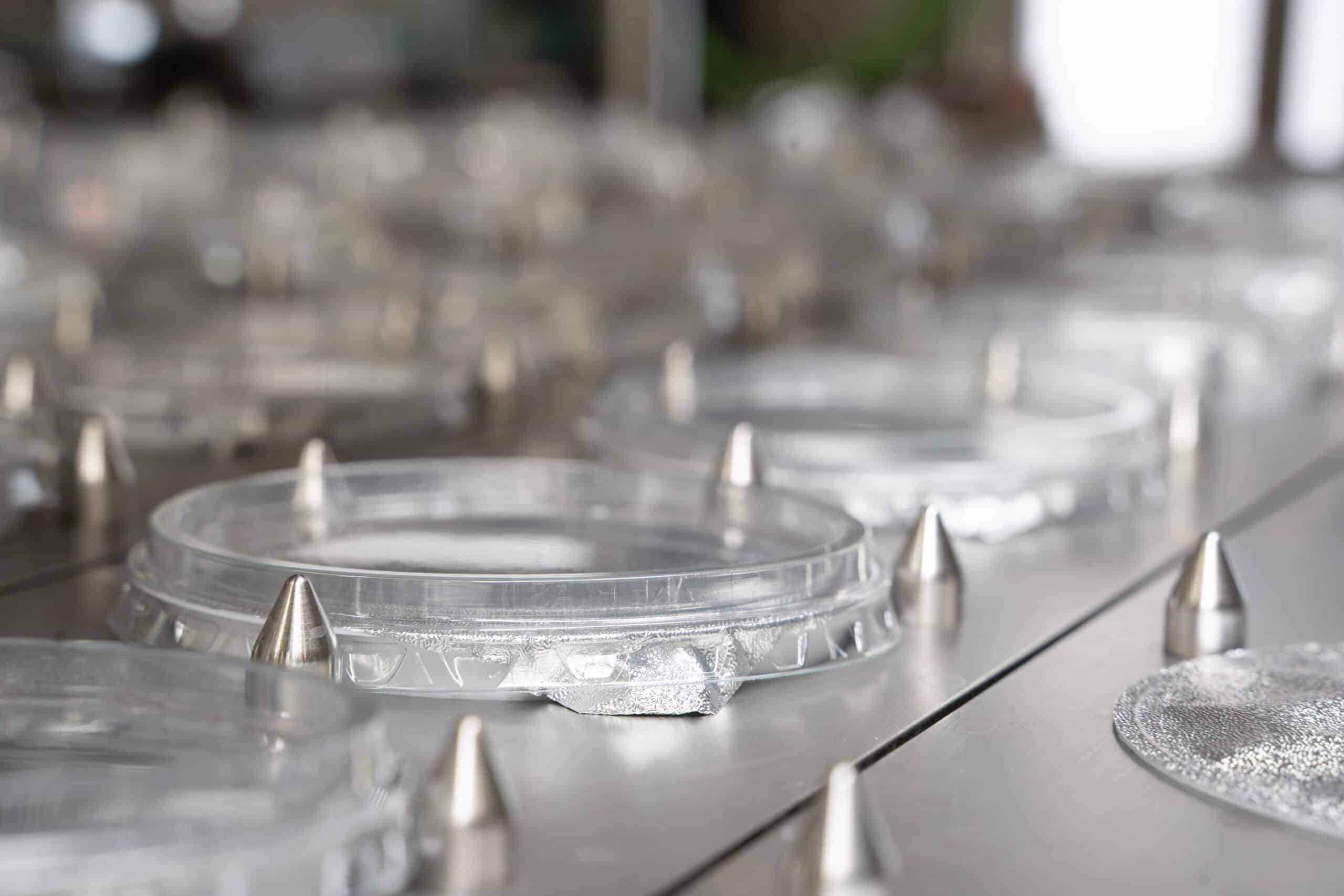

Snap-on lids | Pre-made snap-on lids made of PET, PP, PS* or filled snap-on-lids |
|||
* other material combinations on request | ||||
STANDARD EQUIPMENT | ||||
Cup feed and decontamination | Cup destacker and insertion, cup control, cup decontamination by means of H2O2, cup lifting and ejecting onto discharge conveyor (alternatively an integrated packer can be installed) | |||
Filler | Free space for pre-filler, main filler (CIP, SIP, nozzles, level controls) | |||
Lid | Lid applicator with H2O2 decontamination and sealing station | |||
Others | Cup tightness control, free space for coding (laser or linear unit for inkjet) | |||
Hygiene class | Ultra-clean (VDMA III+IV) | |||
OPTIONS | ||||
Hygiene class | Aseptic (VDMA V) | |||
Filler | Pre-filler, pre- and post filler, side-by-side filling, twisted filling, spot filling | |||
Control system | Rockwell Automation | |||
Others | Cup pole feed in various designs and positions, particle extraction, sealing/punching of lidding material from the reel (roll stock), coding, snap-on lid station and infeed, end-of-line packaging equipment |
