CS F SERIES
Cartoning machines for dairy products
The CS F Series automatic cartoning machines are available in a variety of infeed arrangements and can handle different dairy products such as square and rectangular portions of processed cheese, using flat blanks which are wrapped around pre-formed bundles
The CS F Series automatic cartoning machines are available in a variety of infeed arrangements and can handle different dairy products such as square and rectangular portions of processed cheese, using flat blanks which are wrapped around pre-formed bundles
Automatic cartoning for small to medium sized dairy products
Running off open flat blanks, which cuts back on procurement costs compared to pre-glued cartons, the CS300F wraps pre-formed bundles and closes the boxes with cold vinyl glue sealing them between two parallel, horizontal belts.
Processing speeds reach up to 75 boxes/min.
settings_applications
Production Plant
IMA Corazza
CS F Series Highlights
1.
Available in different infeed arrangements to suit specific product requirements
2.
Optimised size tooling change to minimise production downtimes
3.
It is able to manage a new wrap around flip top reclosable box style
4.
Formats available on single or multiple layers
5.
It is able to handle small, medium and big portions of processed cheese
6.
Totally incorporated lubrication system, partly pipeline fed and partly sunk in oil
Product output options preview
- Technical Data

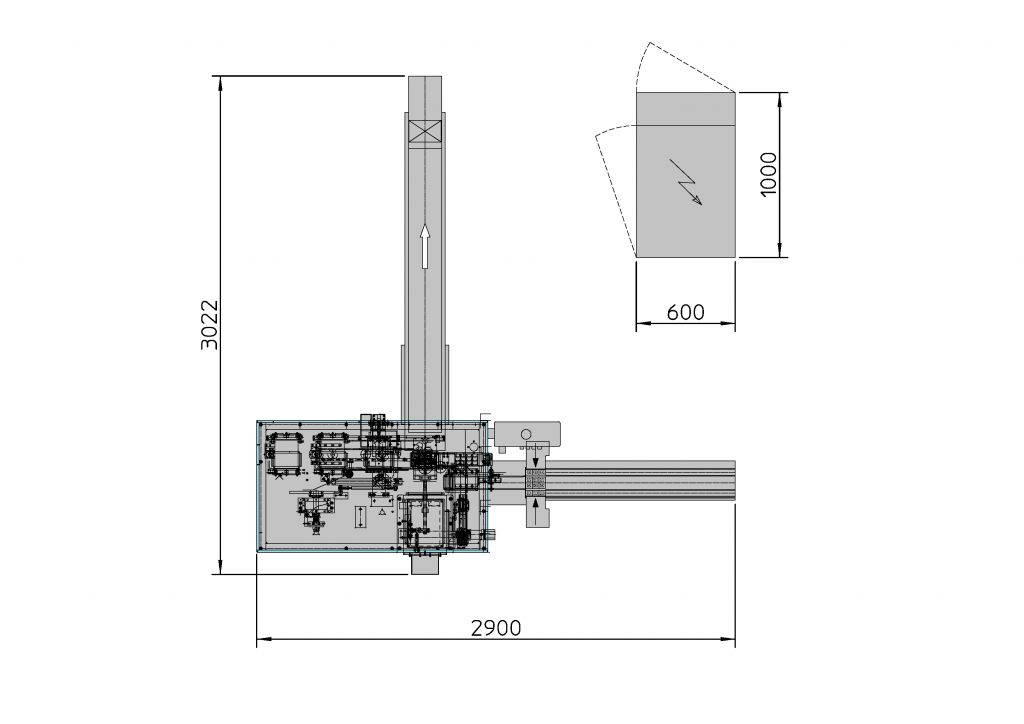

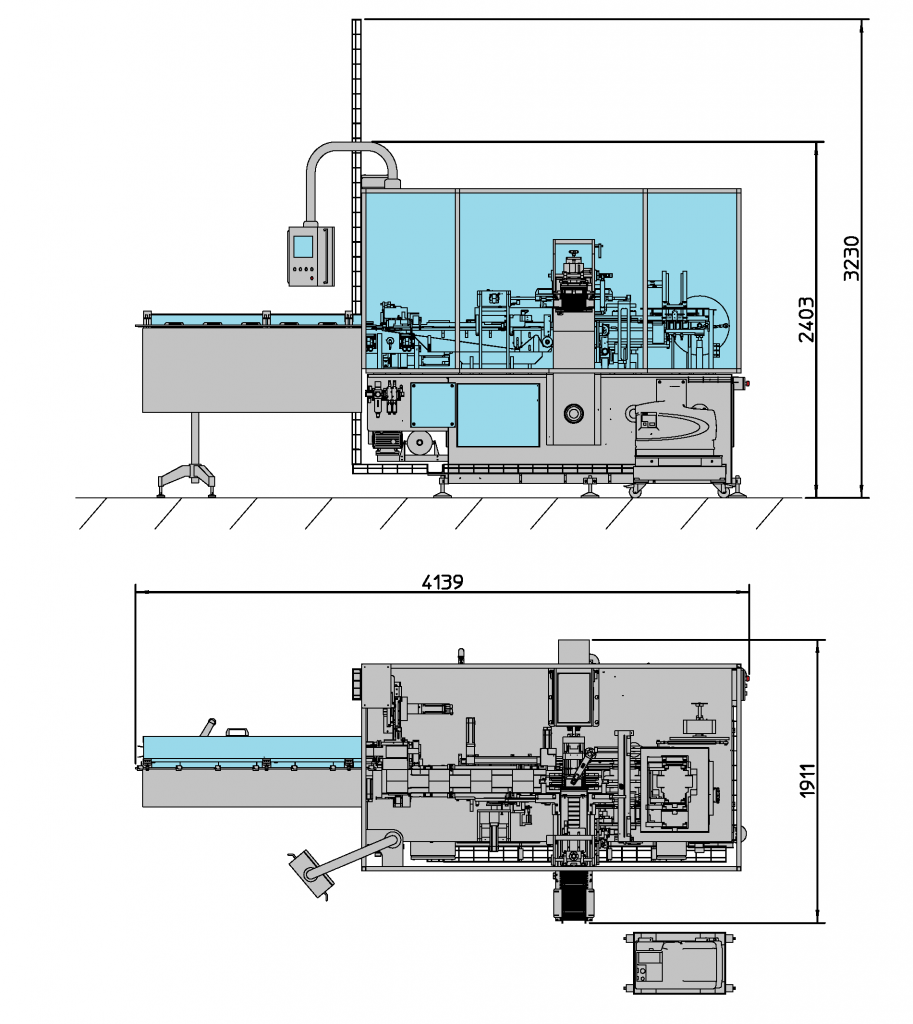

- Machine Layout
| CS SERIES TECHNICAL DATA | |||
| Machine model | CS300F-STRAT | CS300FJ | CS300 FJ STRAT |
| Production capacity | Up to 75 boxes/min. | Up to 65 boxes/min. | Up tp 70 boxes/min. |
| Full load current | Px400V-60Hz-12Ampw | 3Px400V-60Hz-10Amp | |
| Compresse air consumption | 100 Nl/min. (min. op. pressure 6 bar) | 1500kg approx | |
| Weigth | 1,350 Kg Approx. | ||
|
Box dimensions
|
A (min ÷ max) | ||
| 25 ÷ 85 | 60 ÷ 150 | 55 ÷ 75 | |
| B (min ÷ max) | |||
| 110 ÷ 200 | 110 ÷ 160 | 72 ÷ 212 | |
| C (min ÷ max) | |||
| 17 ÷ 33 | 0 ÷ 50 | 10 ÷ 44 | |
| Lanes | 1 ÷ 3 | 1 ÷ 2 | 1 ÷ 4 |
| Layers | 1 ÷ 2 | – | 1 ÷ 2 |
