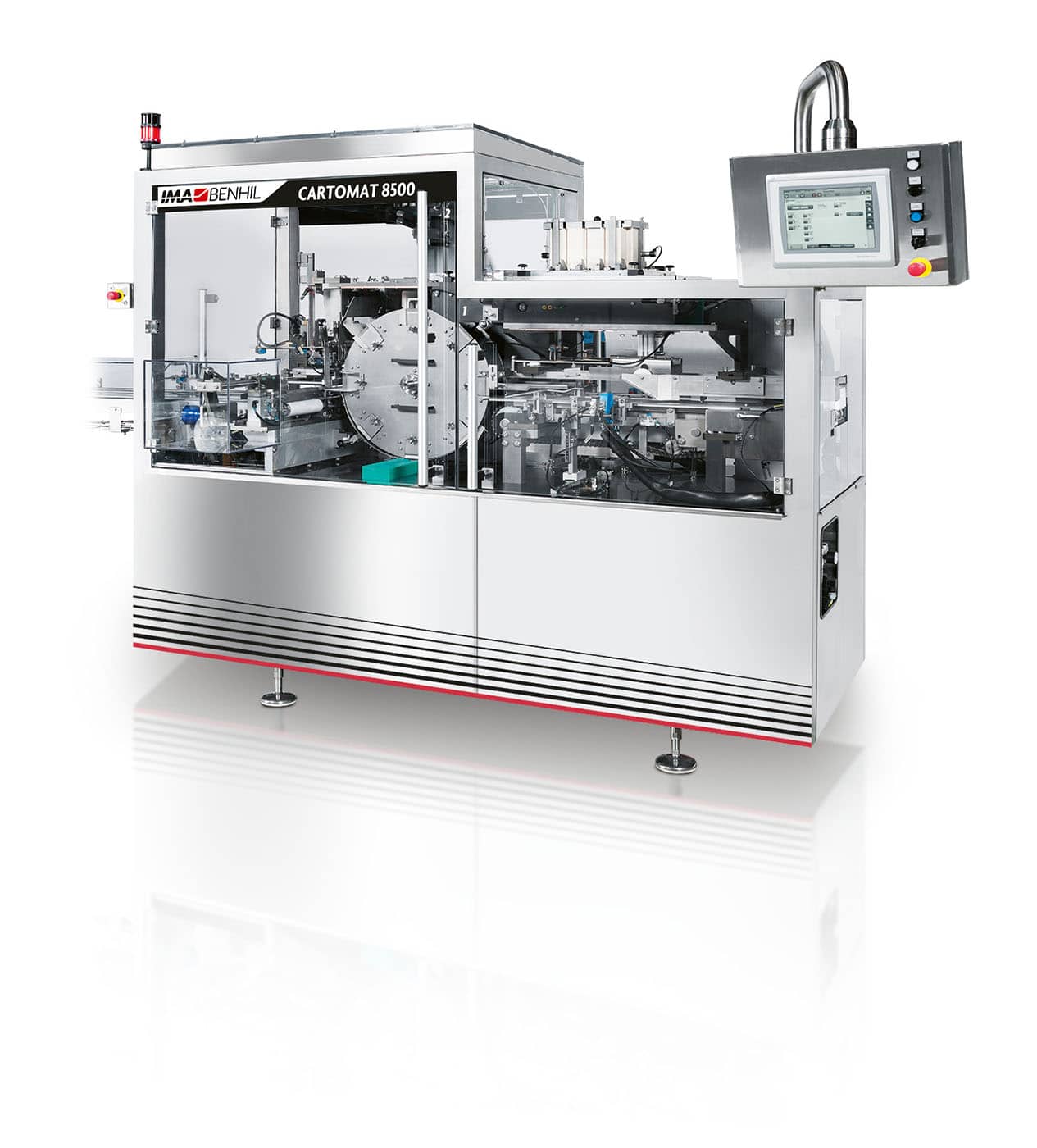

CARTOMAT 8500
Display Cartoning Machine
Cartomat 8500, wraparound cartoning machine for sticks and bricks of butter, margarine and spreads, in display cartons.
Cartomat 8500, wraparound cartoning machine for sticks and bricks of butter, margarine and spreads, in display cartons.
Cartomat 8500, flexible, top-value machine, outstanding for its modern, attractive design.
CARTOMAT 8500 is a fully automatic high-speed wraparound cartoner tailored for butter, margarine and spreads in stick and brick forms.
Operating from flat cardboard blanks, this highly flexible machine achieves a processing speed up to 75 cartons per minute, accommodating 2 to 12 portions per carton.
Configurations include options for single or double layers, and format changes, whether for brick or carton specifications, are executed with ease and simplicity.
The CARTOMAT 8500 is suitable for cartons of different sizes, making it the ideal choice for integration into a line, especially for machines with higher output such as our single and double-lane Multipack series machines.
This innovative, servomotor-driven cartoner is oil bath-free and has its own separate main drive.
settings_applications
Production Plant
IMA Benhil
- Technical Data
| CARTOMAT 8500 TECHNICAL DATA | |
| Function principle | Wrap-around cartoner |
| Upstream equipment | Multipack 8600, Multipack 8000, Multipack 7000, Multipack 5600 |
| Feeding | Single row and double-row supply |
| Output of cartons | Up to 75 cartons/min. |
| Output of packets (upstream) | Max. 300 packets/min. |
| Formats | Sticks and other small rectangular packets |
| CARTON DIMENSIONS | |
| WIDTH (A) | Min 60 mm – Max 192 mm |
| LENGTH (B) | Min 80 mm– Max 172 mm |
| HEIGHT (C) | Min 20 mm – Max 80 mm |
