CARTOMAT 8400
Display Cartoning Machine

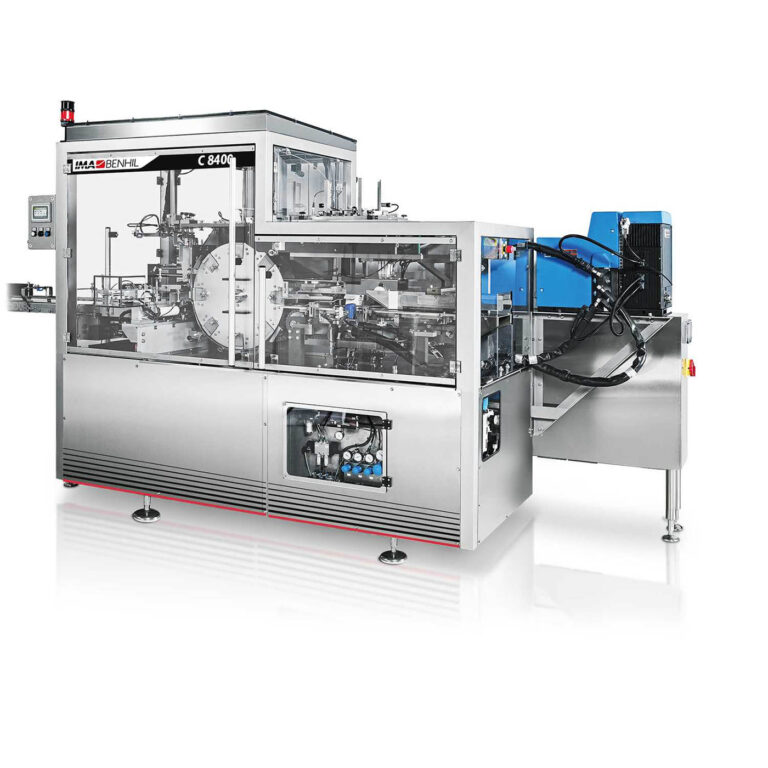

Cartomat 8400, wraparound cartoning machine for sticks and bricks of butter, margarine and spreads, in display cartons.
Cartomat 8400, wraparound cartoning machine for sticks and bricks of butter, margarine and spreads, in display cartons.
Cartomat 8400, flexible, top-value machine, outstanding for its modern, attractive design.
CARTOMAT 8400 is a fully automatic wraparound cartoner designed to pack butter, margarine and spread sticks and bricks in display cartons. Starting from flat blank cartons, and with an output up to 50 cartons per minute, it handles between 2 and 12 portions. Extremely versatile in terms of the possible portion configurations, which can be arranged in single or double layers, CARTOMAT 8400 is also well-suited to managing long size cartons and enables extremely fast and easy format changes for both brick and carton specifications.
CARTOMAT 8400 is the ideal cartoner to implement in line with our one-lane Multipack series model for medium output. Having its own separate drive, it can be also combined with other dosing and wrapping machines.
settings_applications
Production Plant
IMA Benhil
- Technical Data

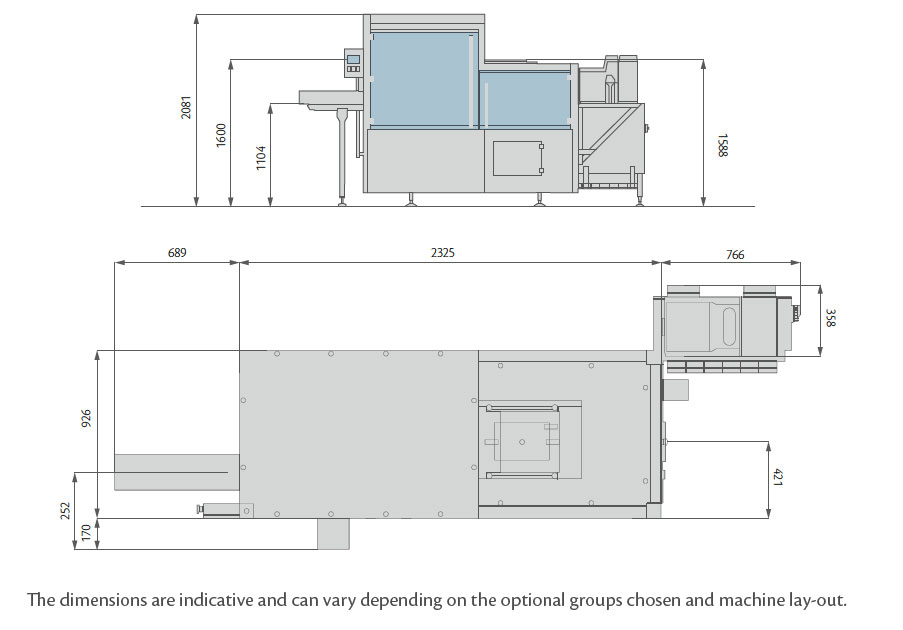

- Machine Layout
| CARTOMAT 8400 TECHNICAL DATA | |
| Function principle | Wraparound cartoner |
| Upstream equipment | Multipack 2000, Multipack 3000, Multipack, Multipack 5500, Ecopack F1000/1500 and other medium-speed filling and wrapping machines |
| Feeding | Single-row supply |
| Output of cartons | Up to 50 cartons/min. |
| Output of packets (upstream) | Max.140 packets/min. |
| Formats | Sticks and other small rectangular packets |
| DIMENSIONS | |
| WIDTH (A) | Min 60 mm – Max 192 mm |
| LENGTH (B) | Min 80 mm– Max 172 mm |
| HEIGHT (C) | Min 20 mm – Max 80 mm |
