C500
Forming, filling and sealing machine for cups
The C500 is a medium to high output FFS machine for cups, ensuring increased efficiency, accuracy and great flexibility. Handles a wide variety of cup shapes including dual cavity cups. The C500 is available in the hygiene classes 'clean' up to 'aseptic'.
The C500 is a medium to high output FFS machine for cups, ensuring increased efficiency, accuracy and great flexibility. Handles a wide variety of cup shapes including dual cavity cups. The C500 is available in the hygiene classes 'clean' up to 'aseptic'.
Optimum hygiene standards
Able to handle a wide selection of cup shapes and dual cavity cups in all packaging material types, the C500 has a reduced footprint and represents a wise investment thanks to low maintenance needs and negligible spare parts costs.
Key functions are servo-driven to ensure optimum process control and the working width is optimised in line with the requested production capacity.
Nominal output ranges from 10.000 to 57.600 cups/h according to type and size. Available for clean, ultra-clean and aseptic hygienic standards.
C500 Highlights
1.
Modular design.
2.
Extended shelf life thanks to chemical-free (steam aseptic) aseptic packaging process.
3.
On demand, equipment delivered compliant with further regulations (FDA, 3A and EHEDG etc.).
4.
Enhanced HMI and software.
5.
High availability and low TCO.
6.
In-line cup decoration to suit customer requirements.
Covering a wide range of filling styles, countless tailor-made design possibilities are available to satisfy specific requests. Built to ensure maximum flexibility, different products can be processed on the same machine, also small and large volumes.
Filling Solutions

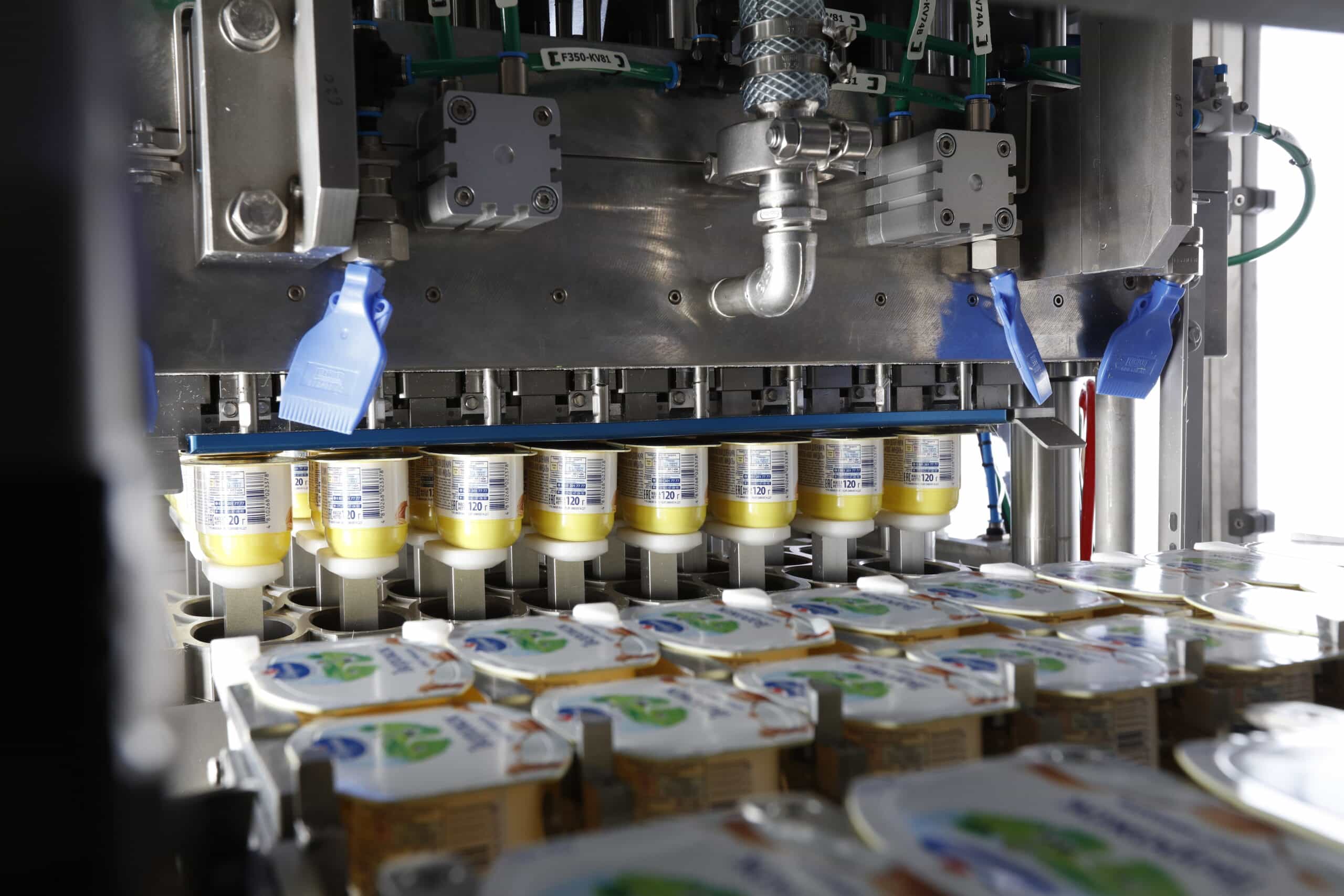

With its' long term experience in filling liquid to pasty products into different kind of cups - in in thermoformed as well as in pre-formed cups - Hassia offers a large variety of different filling possibilities. The fillers are known for their outstanding filling accuracy, a factor which inevitably leads to minimal product loss and enhanced productivity. Covering a wide range of filling styles, countless customized and tailor-made design possibilities are available to satisfy specific requests.
- Technical Data
| TECHNICAL DATA C500 | |
| Material width | max. 550 mm*) |
| *) depending on hygiene level and kind of decoration | |
| Draw-off length | max. 320 mm |
| Forming depth | max. 90 mm |
| TYPICAL MATERIALS | |
| Bottom web | PET, PP, PP multilayer, PS, PS multilayer, PVC |
| Lid material |
Paper-, aluminium- or PET-based or other heat sealable materials |
| TYPICAL OUTPUT RANGE and APPLICATION EXAMPLES | |
| Range | 18.000 – 57.600 cups/h |
| Yoghurt and dessert cups (32-up) @ 30 cycles/min. | 57.600 cups/h |
| PP cups (24-up) @ 25 cycles/min. | 30.000 cups/h |
| Yoghurt cups with wrap-around labelling (12-up) @ 30 cycles/min. | 21.600 cups/h |
| Yoghurt cups (10-up) @ 30 cycles/min. | 18.000 cups/h |
| STANDARD EQUIPMENT | |
| Control system | Controller and servo motors SCHNEIDER ELECTRIC or Rockwell Automation |
| Reel diameters | Bottom web: max. 1.200 mm Lid material: max. 600 mm (lateral reel feed) |
| Punching principle | Grid |
| Hygienic Class | Clean (VDMA I + II) |
| OPTIONS | |
| Bottom web | 2nd reel and/or 2nd reel with magazine for flying reel change |
| Lid material | 2nd reel and/or 2nd reel with magazine for flying reel change |
| Punching principle | Low waste, multi punch |
| Filler | Hot fill 85°C, CIP accessories, multi-component filling, agitator |
| Hygiene class | Ultra-clean (VDMA III + IV), Aseptic (VDMA V), FDA-aseptic version, other versions on request |
| Decoration | Labelling versions: side / U-shape / bottom / wrap-around / wave |
| Others | Walking beam, case packer or other end-of line equipment |
