Petroncini TTG 60
Out of the box roasting

The perfect match for small-scale industrial applications and unlimited product customisation.

The perfect match for small-scale industrial applications and unlimited product customisation.

THE NEW TTG 60

Its hourly capacity of about 240 kg and the manual management of the working phases make TTG 60 ideal for small-scale industrial roasters who don’t want to give up the pleasure of artisan roasting of their own coffee. TTG 60 is an easy-to-use, reliable and cost-effective machine enabling complete handling freedom of the roasting, combined with the guarantee of the highest manufacturing quality and long-life operation of devices installed. The equipment is easily set up so that time-to-commissioning and maintenance operations are definitely reduced, ensuring high profitability standards.

The TTG 60 allows the roast master to manage coffee temperature, drum rotation speed and air-to-bean ratio, therefore letting him vary the method of transferring heat to the bean, achieving the desired balance between convection and conduction. Managing the roasting variables according to the desired end product, the roast master is now able to transfer heat through the soft conduction with the insulated drum surface and with the powerful heating convection, through the massive air flow volume that can be handled inside the drum. The heating chamber, made with very thick material, guarantees perfect and homogenous mixing of the roasting air, resulting in reliable machine performance and repeatability of roasting profiles. We can thereby succeed in achieving countless sensory profiles, developing the coffee’s deepest aromas, from light roasting to the very darkest.



IMA Petroncini
settings_applications Production Plant
IMA Coffee Petroncini

Petroncini TTG 60 Highlights

1.
Sturdy and long-life components
2.
Reliable for long working shifts
3.
Effective chaffs separation
4.
Roasting and cooling independent fans
5.
8 setpoints and 99 roasting profiles customization
6.
Remote assistance
7.
Energy efficiency and thermal insulation

Avantgarde or PRO versions

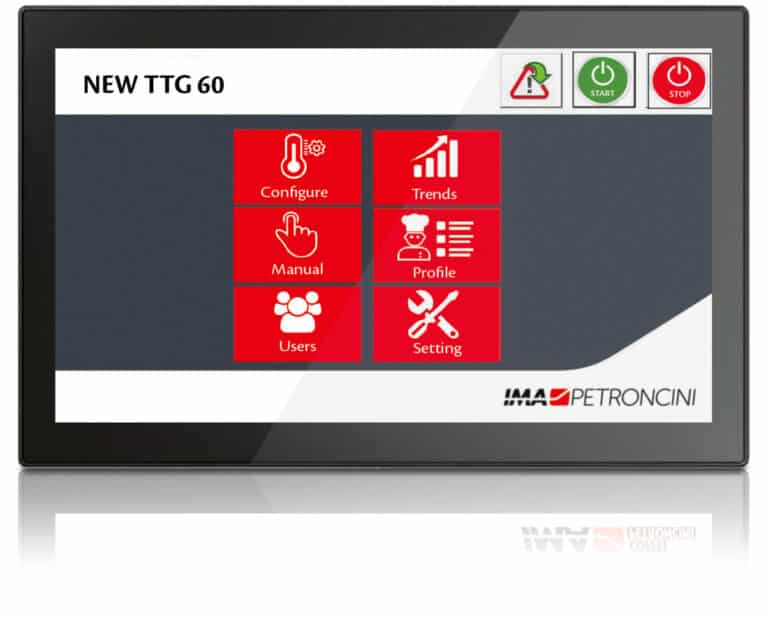

Through the MAESTRO software, the roast master can set up to 8 roasting steps for each roasting profile saved and register from 20 up to 99 roasting recipes in the system. In addition, he can simply record and export the roasting profiles on a USB drive or save the recipes, export the roasting data, organise and analyse them on a PC at any time through the ROASTING MANAGER, an application developed by Petroncini, collecting a back-up of almost 5 years of production.

Avantgarde or PRO versions Thumbnail
  • Technical Data
  • Machine Layout
  TTG 60

Length (mm)

3580

Width (mm)

2800

Hight (mm)

3010

Batch Size (kg)

30-70

Capacity (kg/h)

up to 280

Roasting Time (min)*

12-20

* Roasting Time depends on the type of roasting desired.

* Data subject to possible modifications and not necessarily definitive.



Petroncini TTG 60 Layout

Petroncini TTG 60 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
TTG 60 with green coffee loader and roasting cyclone
search
TTG 60 roasting chamber and heating cycle
search
TTG 60 safety shields
search
MAESTRO HMI and Roasting Manager App
search
Cooling tank manual discharge
