ORION
Depyrogenation tunnel
To address a fundamental step required prior to aseptic filling operations, we created ORION, the depyrogenation tunnel that guarantees sterile pharmaceutical containers, preventing the formation of pyrogens in drugs.
To address a fundamental step required prior to aseptic filling operations, we created ORION, the depyrogenation tunnel that guarantees sterile pharmaceutical containers, preventing the formation of pyrogens in drugs.
Depyrogenation efficiency and effectiveness, like no other.

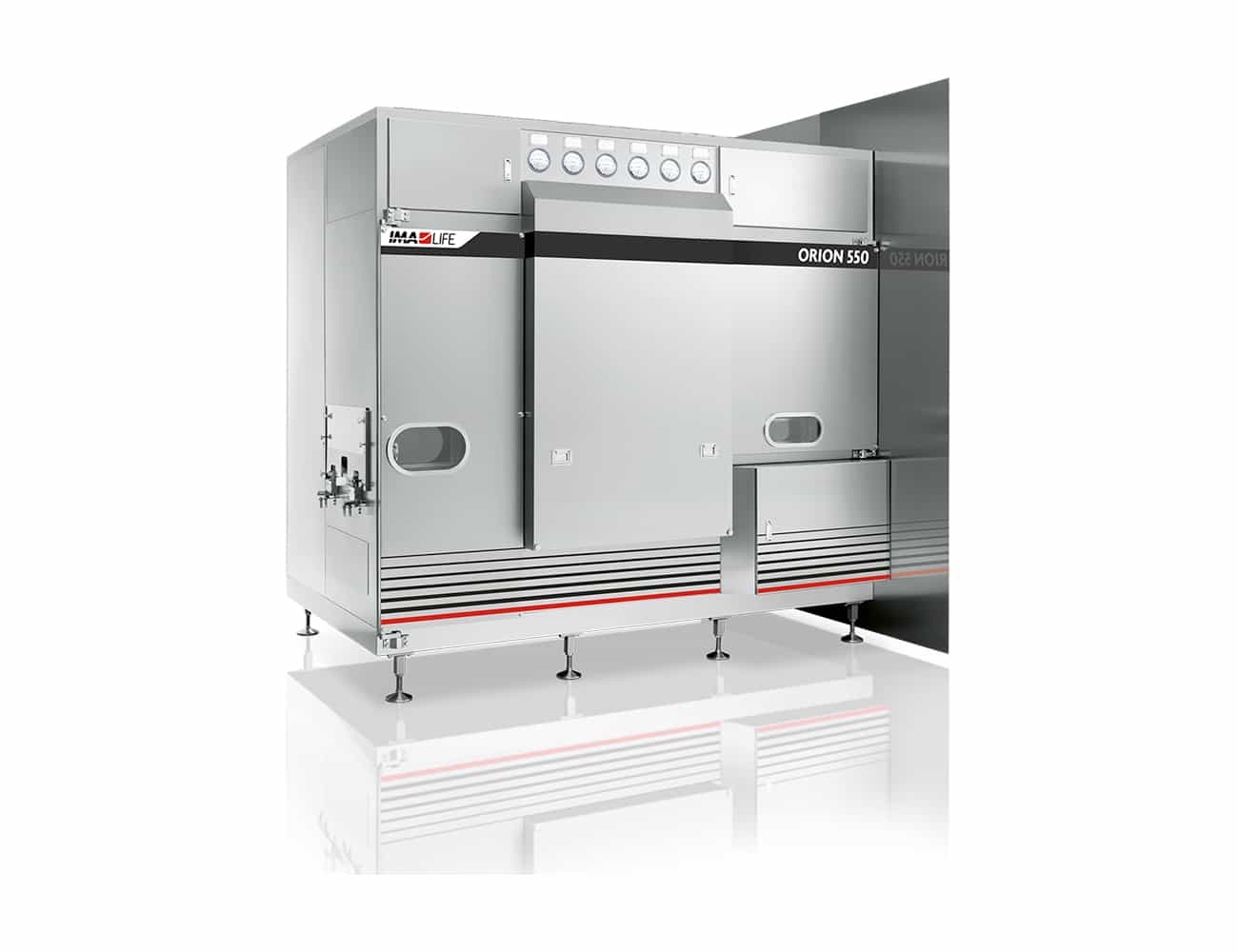

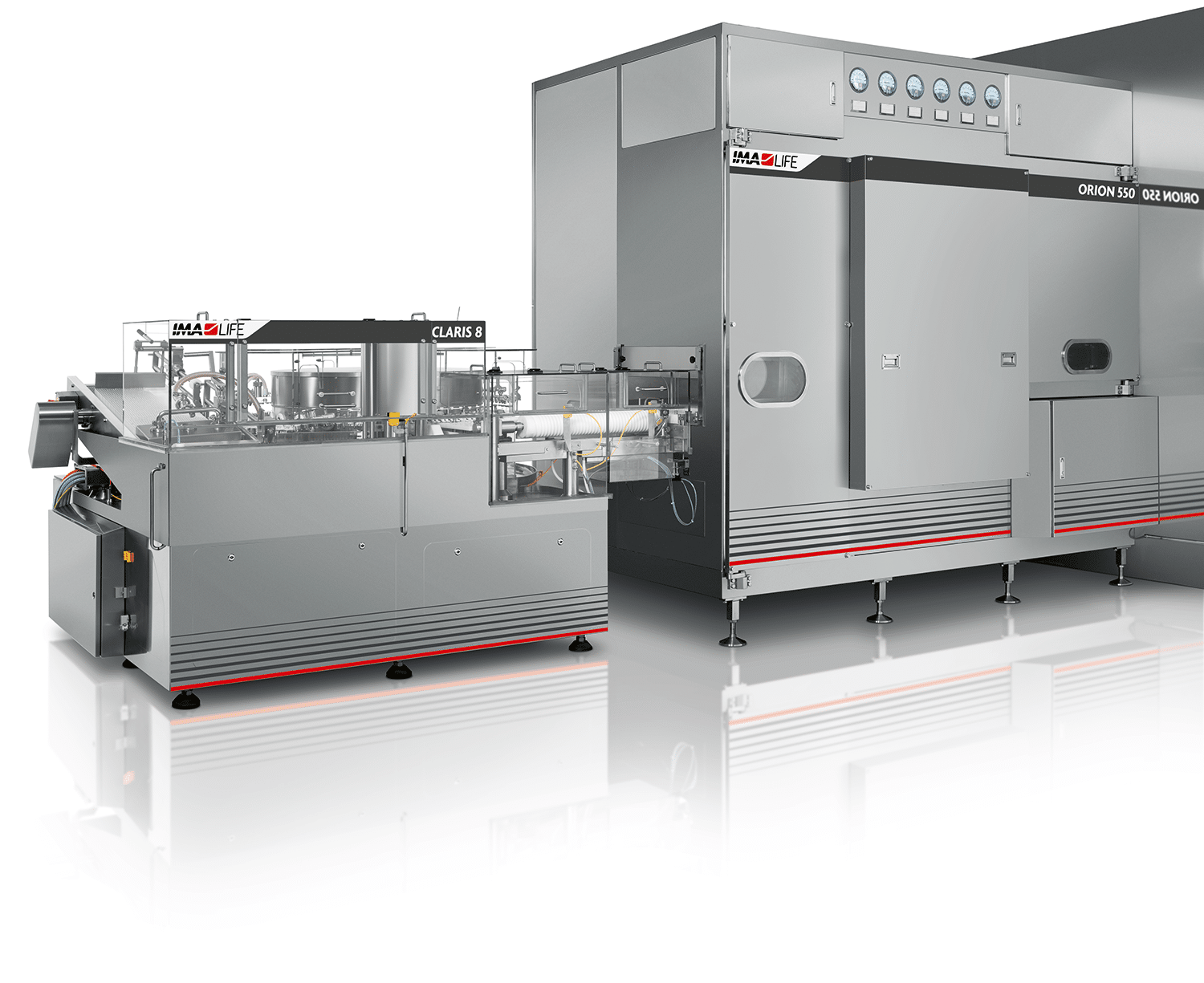

ORION is a laminar flow tunnel for depyrogenation and sterilisation of glass containers like vials, ampoules and cartridges. The tunnel is suitable for integration in continuous aseptic production lines which require a process by dry heat. It is also suitable for baking the silicone coating of glass containers.

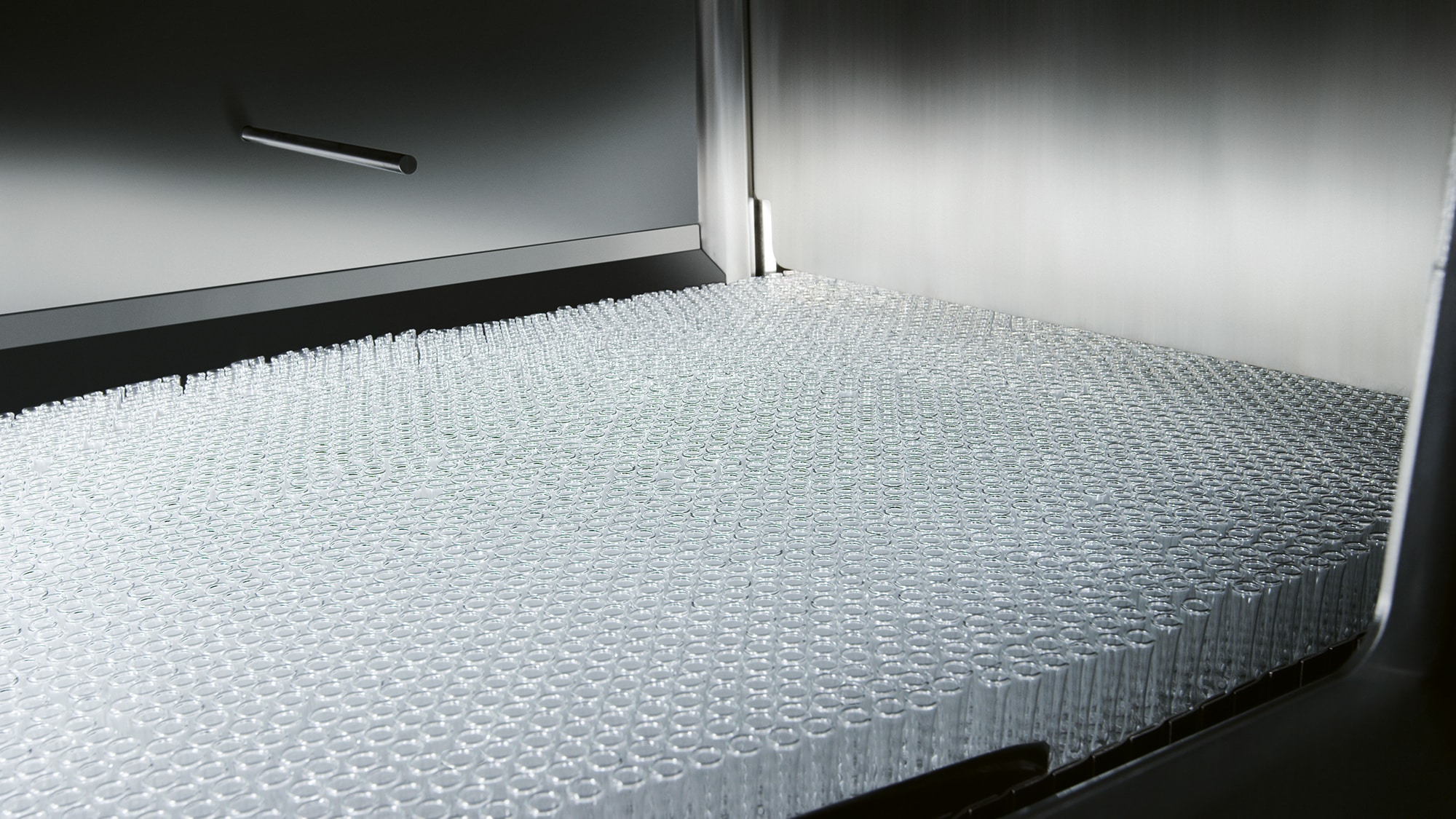

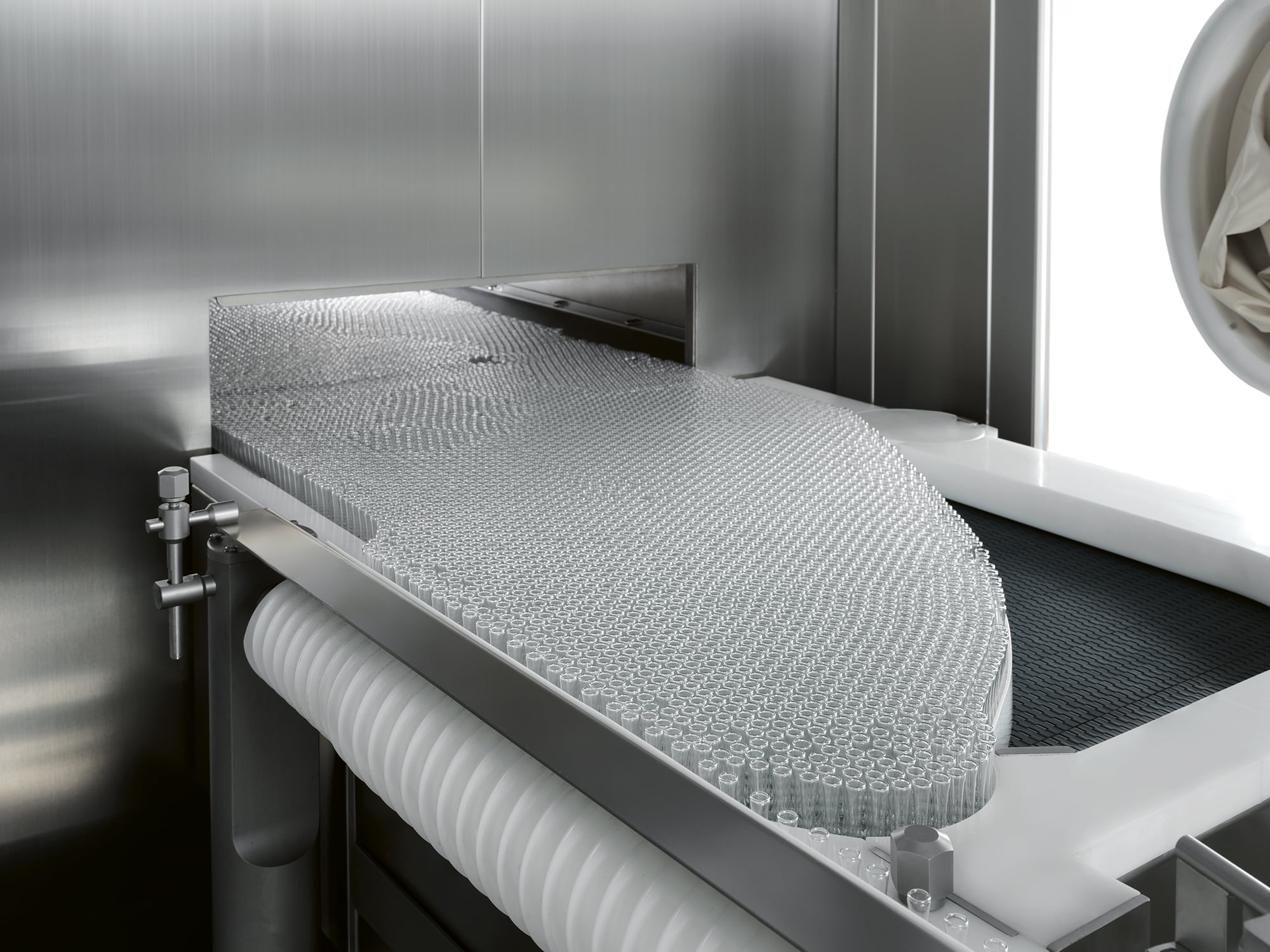

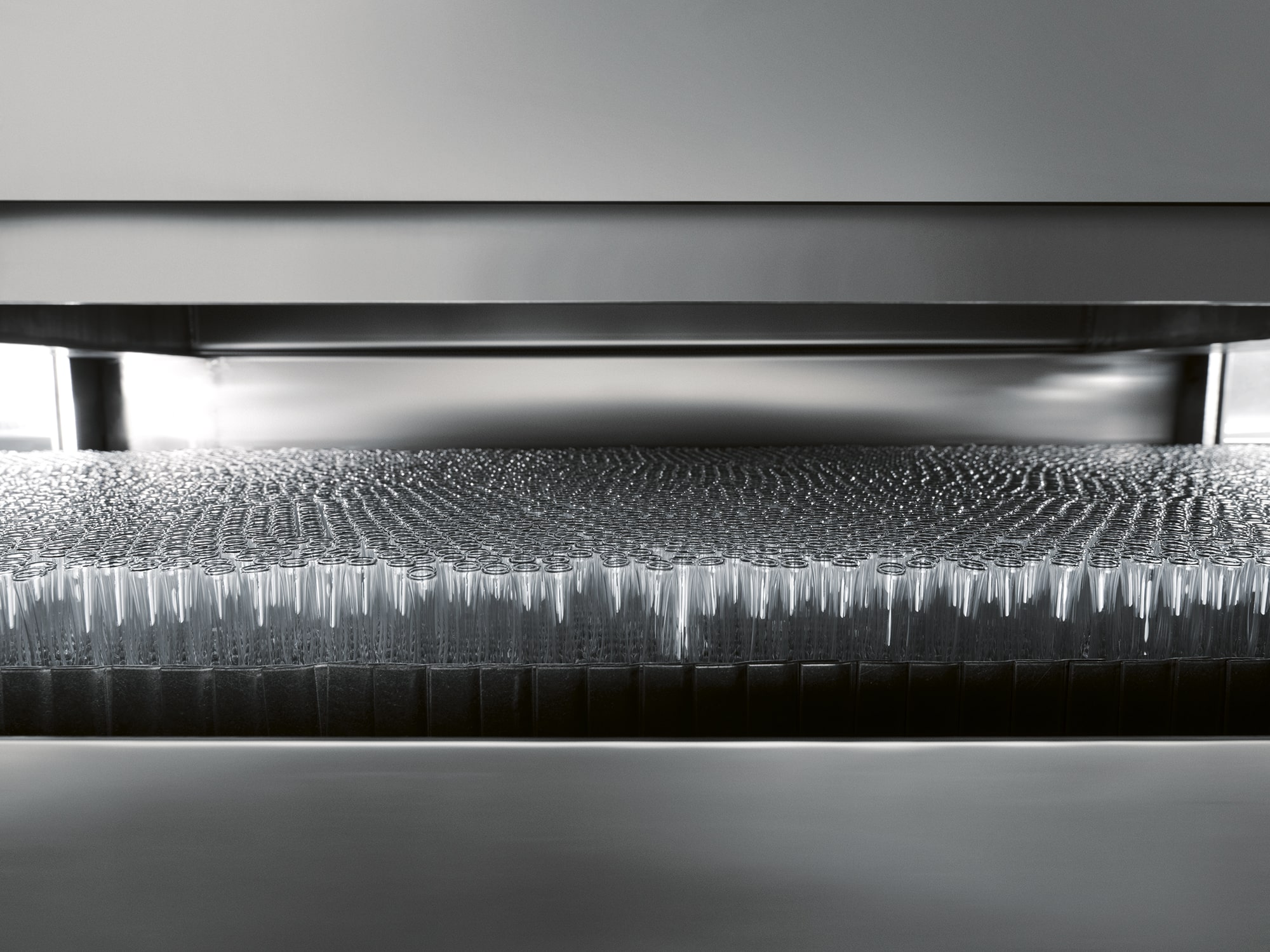

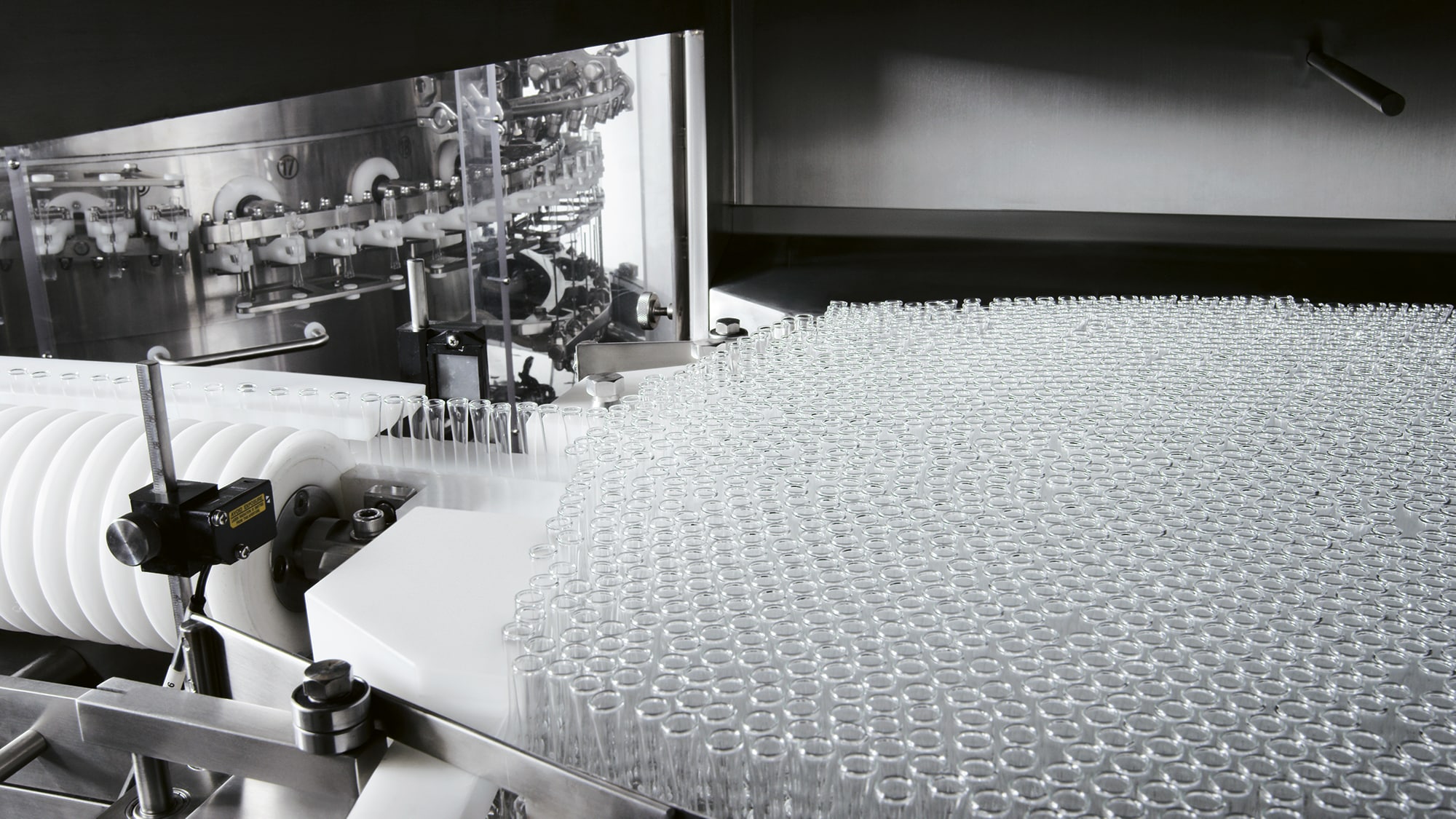

The machine is designed with three laminar flow zones: infeed, heating and cooling. Each zone complies with the ISO 14644-1 and 14644-2 regulation and is separated by means of motorized gates which are opened and automatically closed according to the production flow.
settings_applications
Production Plant
IMA Life
ORION Highlights
1.
Hinged doors for easy access inside the machine for calibration and testing.
2.
Side access for easy maintenance.
3.
Made entirely in AISI 304 stainless steel with self-supporting structure.
4.
Wire mesh conveyor belt in AISI 316L stainless steel.
5.
Process recorder for registration ofto record the main working parameters.
6.
Separated control cabinet made in AISI 304 stainless steel, protection IP54-rated IP54 protection.
- Technical Data
- Machine Layout
| ORION TECHNICAL DATA | |||
| ORION 550 | ORION 870 | ORION 1250 | |
| A (mm) | 2,690 | 2,690 | 3,000 |
| B (mm) | 2,800 | 3,600 | 4,400 |
| C (mm) | 1,850 | 2,180 | 2,520 |
| Standard voltage | 400 V – 50 Hz | ||
| Installed power (kW) | 40 | 60 | 70 |
