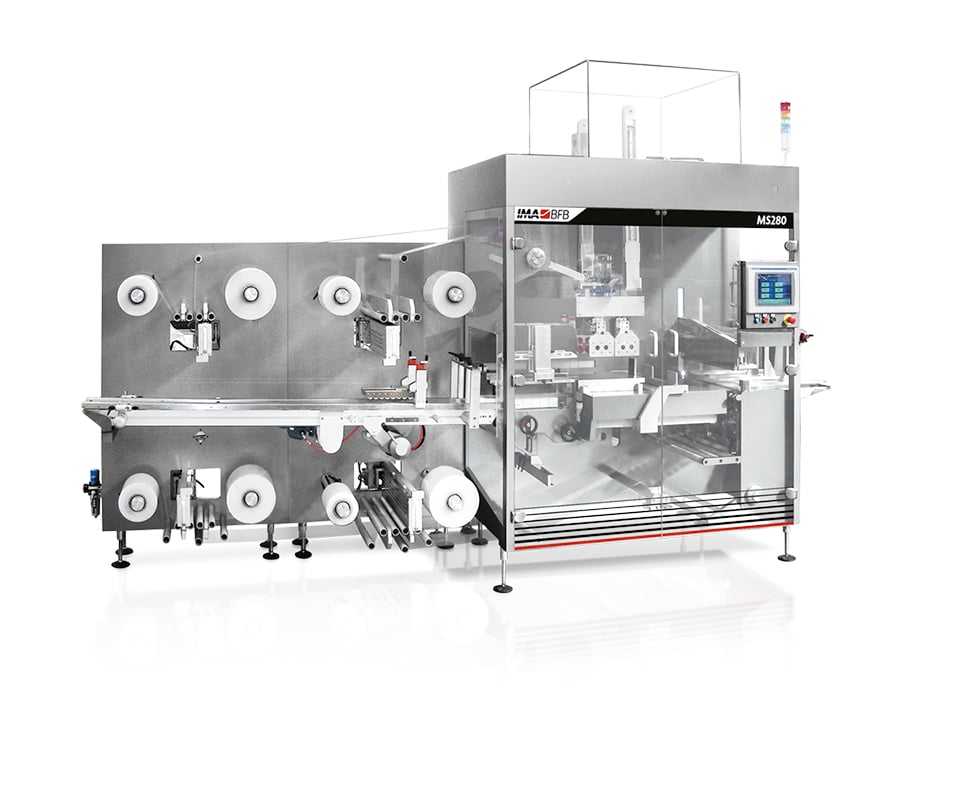

MS280 SERIES

Stretch banding and shrink wrapping machine

Built to match the performance of high-speed production lines, the MS280 attains impressive speeds thanks to its refined servo driven technology. Cartons are stacked in multiple layers and when handling bottled items, these are collected in several rows.

Download Brochure

Bundle and wrap for top performance production lines.

Able to bundle and wrap products at speeds of up to 100 bundles/min, this solution is ideal as part of a high-performance production line.

Equipped with a pick and place unit which stacks cartons in several layers, the MS280 also collects bottles in rows before shrink wrapping in the integrated shrink tunnel.

Fitted with a new electronic sealing system, tight film wrapping is ensured for improved product protection.

Download Brochure

Production Plant

IMA BFB

MS280 Series Highlights

1.
Balcony-type design to enable maximum accessibility to machine parts for easy cleaning and maintenance.

2.
All drives located at the back of machine, thereby separating them from the product flow area.

3.
Tool-free size changeover in just 10 minutes with digital indicators to assist with adjustments.

4.
Ergonomic design with shaft featuring quick expansion lock device for rapid film reel change.

Should shrink wrapping be required, a shrink tunnel ca be installed as an integral part of the machine.

Download Brochure

Technical Data

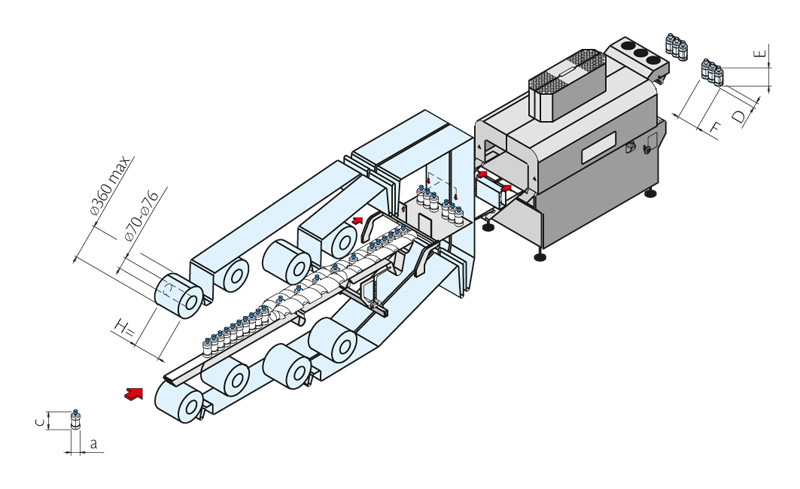

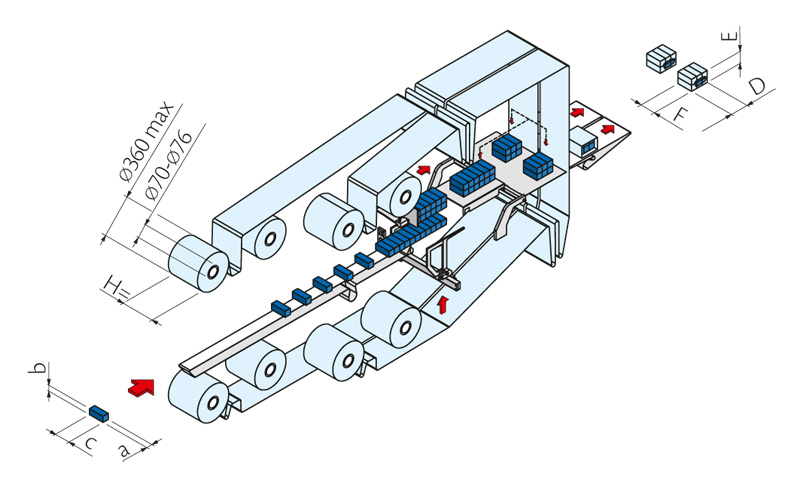

Machine Layout

TECHNICAL DATA MS280 SERIES
Carton size range	A	B	C	D	E	F	H
Min.	20	15	60	60	30	60	80
Max.	180	100	220	180	210	220	280
Bottle size range	A	B	C	D	E	F	H
Min.	30	100	30	30	100	80	80
Max.	110	210	110	220	210	190	280
Production	100 bundles/min.

MS280 Series Gallery

Stacking

Pick and place
