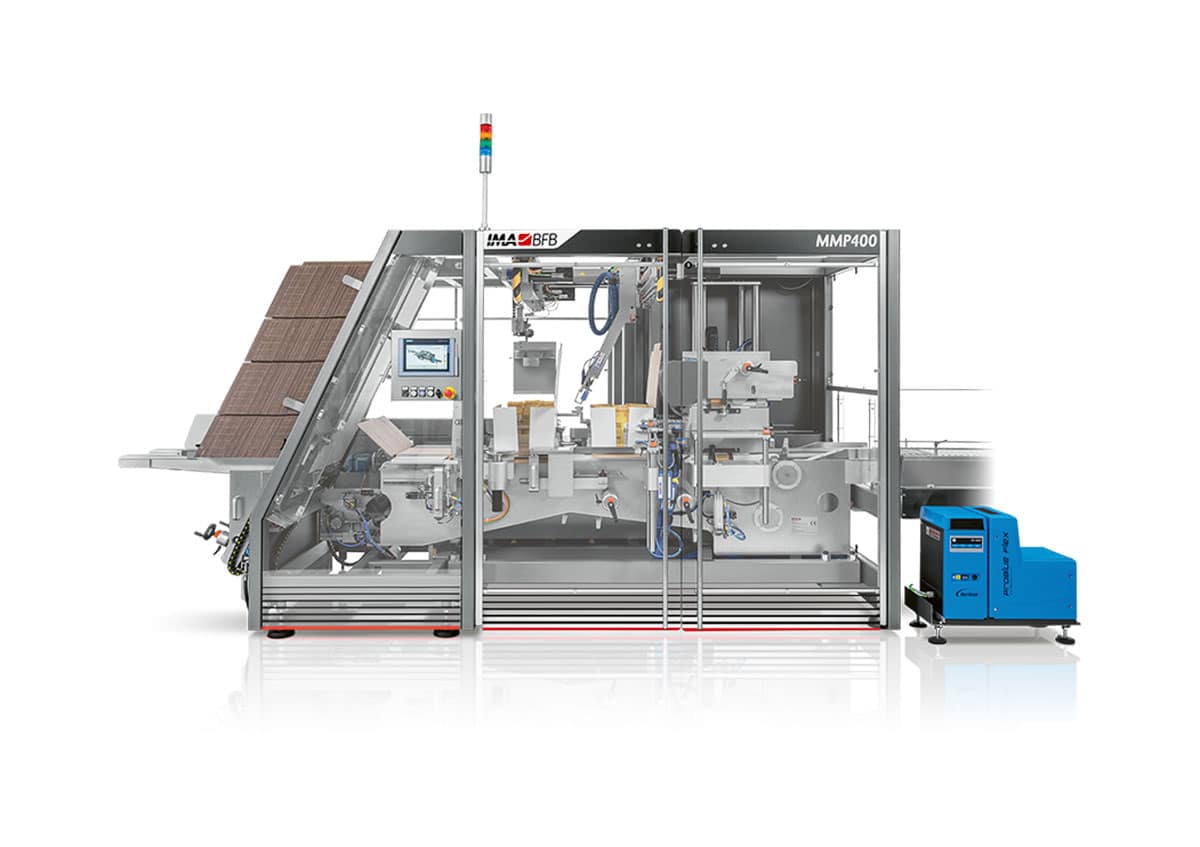

MMP400
Wrap around case packing machine
The MMP400 is a modular multi-packer built to pack individual or bundled products into cases, display boxes or trays. The machine has been designed for the efficient handling of all shapes and sizes, even if they are unstable or critical to run at high speed.
The MMP400 is a modular multi-packer built to pack individual or bundled products into cases, display boxes or trays. The machine has been designed for the efficient handling of all shapes and sizes, even if they are unstable or critical to run at high speed.
Smart solutions for speed and simplicity.
Built to pack individual or bundled products into cases, display boxes or trays starting from flat blanks, the MMP400 wrap around case packer features servo technology enabling speeds of up to 30 cases/minute and extremely smooth handling.
Ergonomically positioned components help to significantly improve operator intervention and thanks to a newly designed case erection mechanism, the horizontal case magazine is as low as possible to achieve increased autonomy. Cases are erected and held in position on two sides during loading.
This system is so effective, it allows for problem-free handling of lower quality corrugated cardboard.
settings_applications
Production Plant
IMA BFB
MMP400 Highlights
1.
Cantilever design for optimum accessibility and easy cleaning.
2.
New 830 mm height case magazine for easy loading of cases.
3.
Machine fully servo equipped.
4.
Independent modules on infeed to allow for the efficient handling of all kinds of products: jars, bottles, caps, bags, flowpacks, pillows, soft products (cheese, butter), cartons.
5.
Can be equipped either with a 6 axes robot or with a 2 axes loading system (pusher or pick&place), allowing for handling of any products at high speed.
6.
Internal or external lid unit available.
7.
Flexible machine capable to handle flat blank, RSC, tray and tray/hood with simple changeover.
At IMA BFB we understand the key to success is the infeed of the machine. We have combined our knowledge and experience in handling different shaped products and developed different and independent modules on infeed.
Wrap around case packer - palletizer integrated versions
MMP400 is available in different palletizer-integrated versions, according to the output speed required.
- Technical Data
- Machine Layout
| TECHNICAL DATA MMP400 |
| MMP400 | A | B | C |
| Case dimensions (MIN) | 80 | 80 | 140 |
| Case dimensions (MAX) | 420 | 325 | 420 |
| MMP600 | A | B | C |
| Case dimensions (MIN) | 80 | 80 | 250 |
| Case dimensions (MAX) | 420 | 325 | 600 |
| Speed: up to 30 cases/min |
