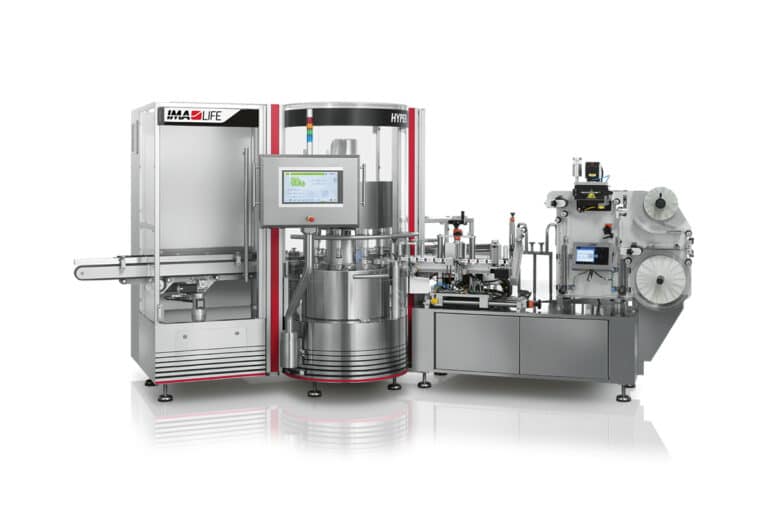

Labelling machine for vials and bottles
HYPER is the ultimate labelling solution created to achieve the impossible. Fully modular and implementing the latest technologies for high-speed labelling, it handles all container materials and shapes.
HYPER is the ultimate labelling solution created to achieve the impossible. Fully modular and implementing the latest technologies for high-speed labelling, it handles all container materials and shapes.
Hyper-possible.
Hyper is a high-speed labelling machine for vials and bottles handling all container materials, from glass to plastic or aluminium, and shapes: square, round, tall or not. It can apply up to 5 labels (paper or plastic) and outserts.
Designed with full brushless technology, Hyper can self-adjust the working parameters, thus improving productivity and ensuring correct container positioning and label application precision.
Fully modular, it can integrate any printing type and feature serialization enabling single-container Track & Trace capabilities.
settings_applications
Production Plant
IMA Life
HYPER Highlights
1.
Can apply up to 5 labels (paper or plastic) and outserts.
2.
Full brushless technology for maximum precision during the labelling process.
3.

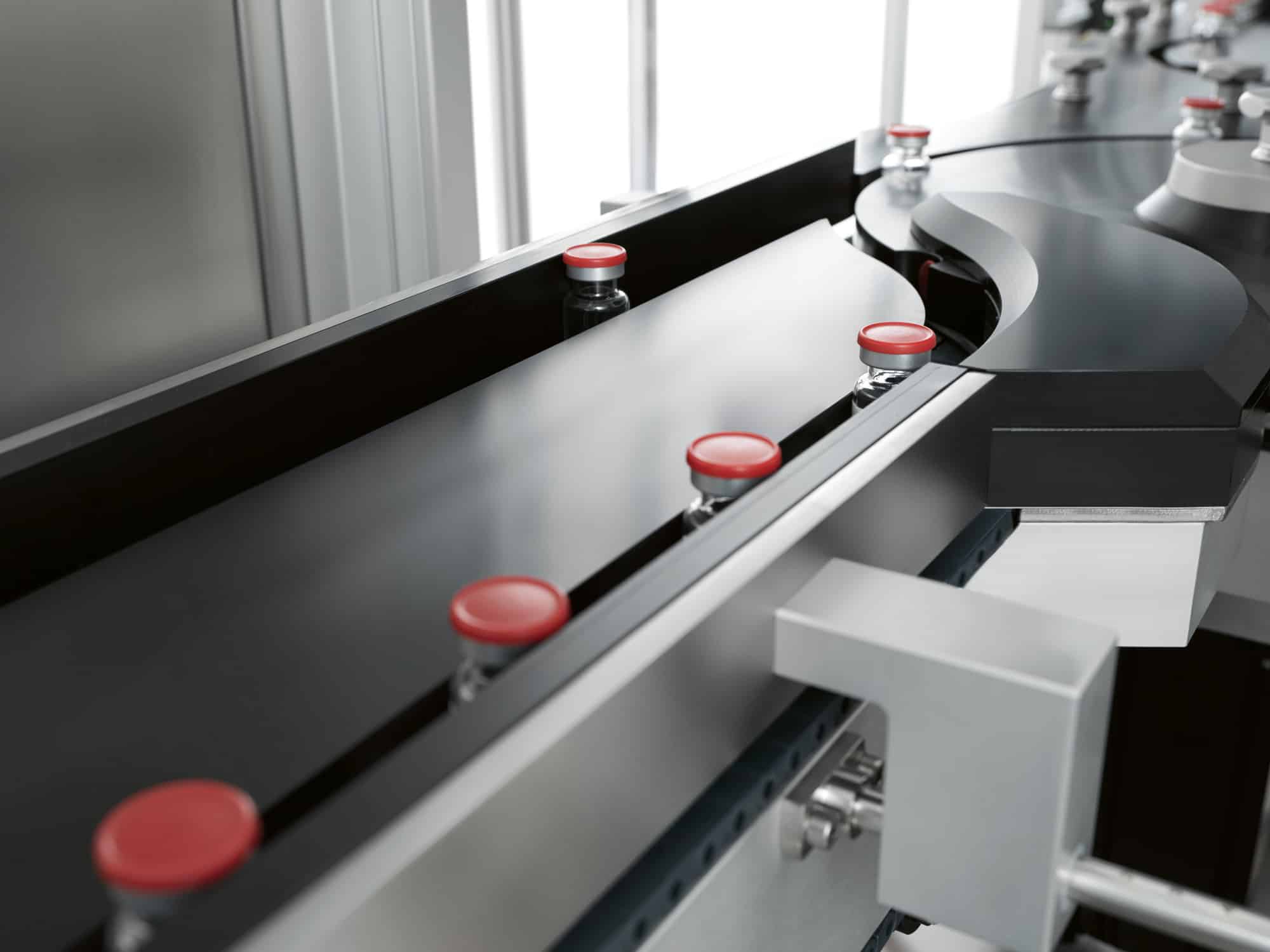

Positive container transport for precise label application.
4.
Independent electronic control of all machine components.
5.
Can be supplied as a stand-alone version or integrated in complete processing and packaging lines.
6.
Modular and ergonomic design with stainless steel finishing.
7.
Quick size changeover.
8.
Easy installation of overprinting device and vision systems to read and check data.
- Technical Data
- Machine Layout
| TECHNICAL DATA HYPER | |
| Maximum output (pieces/minute) | 500 |
| Installed power (kW) | 3.7 |
| Standard voltage | 400 V – 50 Hz |
| Maximum container height (mm)* | 220 |
| Maximum container diameter (mm)* | 16-86 |
| Label height (mm) | 10-100 |
| Label length (mm) | 15-200 (300 for containers with 4 sides) |
| Maximum label reel diameter (mm) | 400 |
| Label accuracy (mm) | ±0.6 |
| *can be bigger depending on machine configuration | |
