GS CAR
Wheeled tank
Easily moved around in a small space, GS CAR is quick to assemble and remove. Various types of tank can be interchanged on the same support allowing excellent inspection and sanitation.
Easily moved around in a small space, GS CAR is quick to assemble and remove. Various types of tank can be interchanged on the same support allowing excellent inspection and sanitation.
Take care of your suspension.
GS CAR is a wheeled tank for film and sugar coating suspensions. Fitted with a propeller and a specially positioned graded, graduated baffle, GS CAR keeps the coating solutions perfectly smooth without incorporating any air bubbles. All materials in contact with the product are suitable for pharmaceutical use.
settings_applications
Production Plant
IMA Active
GS CAR Highlights
1.
Made of AISI 316 stainless steel with mirror finishing.
2.
Stirring without incorporation of air.
3.
Poppet valve level flush with tank bottom to prevent sedimentation.
4.
Perfect jacket heating temperature control without precipitation or crystallization of sugar solutions.
- Technical Data

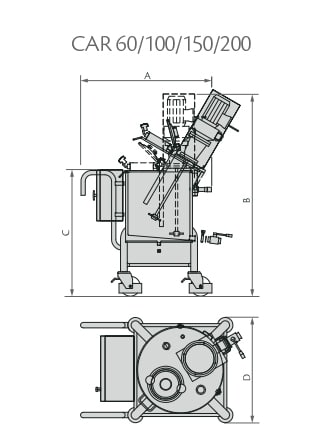

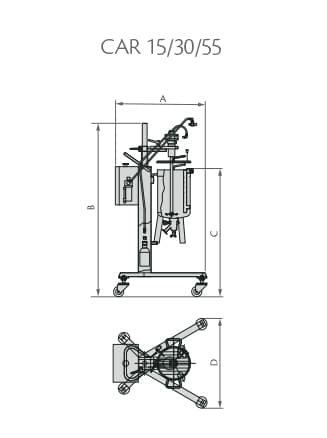

- Machine Layout
| TECHNICAL DATA GS CAR | |||||||||
| Model | CAR 15 | CAR 30 | CAR 55 | CAR 60 | CAR 100 | CAR 150 | CAR 200 | CAR 250 | CAR 300 |
| Working capacity (l) | 15 | 30 | 55 | 60 | 100 | 150 | 200 | 250 | 300 |
| A (mm) | 690 | 1,156 | 1,226 | 1,400 | |||||
| B (mm) | 1,360 | 1,586 | 1,786 | 1,886 | 1,970 | 2,000 | |||
| C (mm) | 996 | 920 | 1,100 | 1,220 | 1,290 | 1,220 | |||
| D (mm) | 251 | 336 | 396 | 545 | 645 | 815 | |||
| Absorbed power – electrical mixer (kW) | 0.18 | 0.37 | 0.75 | 1.1 | |||||
| Absorbed power – pneumatic mixer (kW) | 0.5 | 1.3 | 3 | ||||||
| Heating power – heated version (kW) | 1 | 2.5 | – | 3 | 5 | 8 | 10 | 15 | |
