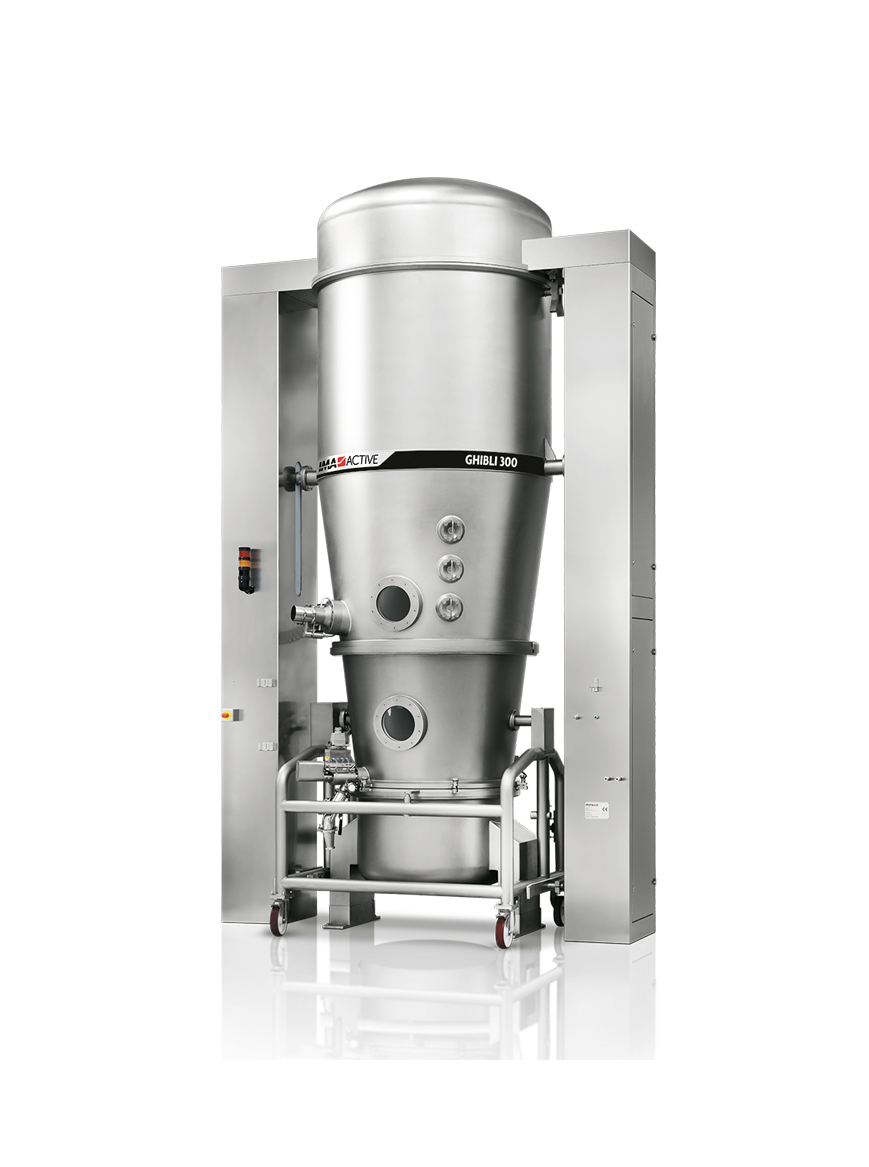

GHIBLI
Fluid bed processor

Premium quality engineering is the hallmark of IMA Active’s fluid bed processor. Thanks to its smart design for filter inspection and filter change, GHIBLI ensures maximum efficiency in drying, granulation and pellet coating.

Premium quality engineering is the hallmark of IMA Active’s fluid bed processor. Thanks to its smart design for filter inspection and filter change, GHIBLI ensures maximum efficiency in drying, granulation and pellet coating.

Dedicated to efficiency.

GHIBLI allows drying, granulation, pellet coating in high containment with maximum reliability and large flexibility. Thanks to its rotating expansion chamber, GHIBLI ensures complete accessibility to product filters for inspection and maintenance.

IMA Active
settings_applications Production Plant
IMA Active

GHIBLI Highlights

1.
Rotating expansion chamber: complete accessibility to product filters for easy inspection and maintenance.
2.
Suitable to work in high containment.
3.
Different type of filters: bag filters, star-pleated or stainless steel cartridges.
4.
ATEX compliant for safe use of solvents.
5.
Control of emissions: powder dedusting, absolute filtration, 12 bar Pressure Shock Resistance.
6.
Product discharge by gravity, through the floor, available as an option.
IMA Active can recommend the most appropriate double fluid nozzles either for granulation or for coating. Accuracy of spraying is achieved by continuous control of liquid flow, volume and pressure.

Lab Version.

Mylab is a laboratory-scale fluid bed processor for R&D purposes, suitable for drying, granulation and pellet coating. The product containers can work batch sizes from 2 to 6 litres.

GHIBLI Thumbnail
  • Technical Data
  • Machine Layout
TECHNICAL DATA GHIBLI
Model 25 50 100 150 200 300 400 700 1000
Recommended batch size (l) 66 116  320  442  480  668  770  1,173  1,400
Roto Mix inline (l) 60 120  300  600  600  900  900  1,200  1,500
A (Ø mm)  600 700 900  1,250 1,515 1,820
B (mm) 555 665  770 970 1,060 1,245 1,250 1,465 1,780
C (mm)  2,200 2,500  2,900  3,165 3,465 3,850  4,150  4,980 5,680
D (mm) 1,170 1,295  1,415  1,425  1,480  1,650  1,800  2,290  2,335
E (mm) 1,460  1,585 2,530 2,785  3,270
F vertical rupture disc (mm) 2,535 2,840 3,300 3,600 3,900 4,370 4,680  5,780  6,480
G horizontal rupture disc (mm) 2,660 2,960 3,420  3,765 4,065 4,540 4,890 5,890 6,600
GHIBLI Layout

GHIBLI Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Porthole
search
Bag filters
search
Expansion chamber rotation
search
Filter dismantling
