FTC530 Series
Horizontal cartoners for wallets & sleeves
An extremely versatile solution, the FTC530 Series machines are horizontal cartoners that can process a huge variety of package styles, from a simple sleeve to the multi panel wallets and other customised packages.
An extremely versatile solution, the FTC530 Series machines are horizontal cartoners that can process a huge variety of package styles, from a simple sleeve to the multi panel wallets and other customised packages.
Turn your flat blanks into wallets and sleeves
The FTC530 Series is available in either intermittent or continuous motion according to the specific production requirement, adapting perfectly to customer needs.
The FTC530 Series machines are modular horizontal cartoners working from flat blanks to process a large variety of package styles, from a simple sleeve to the multi panel wallets and other customised packages covering the needs of Pharmaceutical, Nutraceutical, (Functional Food and Supplements), Gum & Candies, and Food.
IMA’s long experience in special projects has enabled us to adapt this machine to process completely different products: large dimensions, irregular shapes, and delicate consistency are just a few examples.
According to the specific application and customer needs, the equipment can be designed to reach medium or high speed.
nature_people
Sustainability
 |
 |
| Shared bus with power exchange for consumption optimization. The motorization is handled with the aim to avoid power waste. Kinetic energy generated during braking is shared and absorbed by other modules of the machine, reducing the overall power consumption. | It allows the use of sustainable packaging materials for an eco-friendly package. |
settings_applications
Production Plant
IMA Gima
FTC530 Series Highlights
1.
Large capacity carton magazine
2.
Highest finished product quality
3.
Hygienic design
4.
Wide range of carton styles
5.
Versatile product handling
6.
Complete accessibility and quick line clearance
- Technical Data

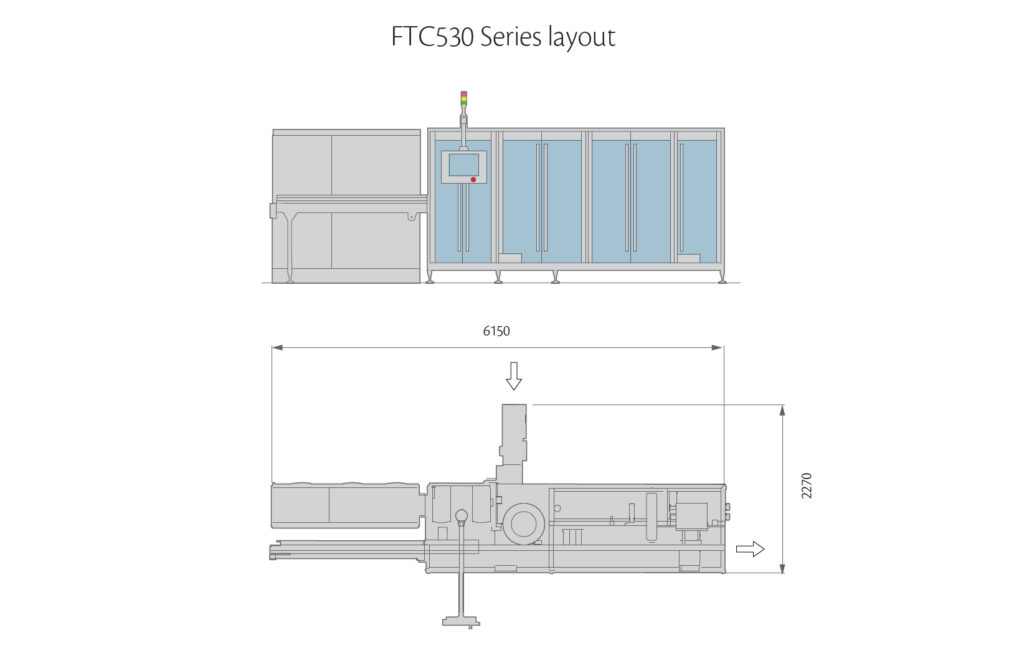

- Machine Layout
| WIDTH (W) | HEIGHT (H) | LENGTH (L) | PRODUCTION SPEED | |
| FTC530 Continous motion | 45 – 80 mm | 5 – 30 mm | 70 – 140 mm | up to 400 crt/min |
| FTC530 Intermittent motion | 70 – 150 mm | 10 – 40 mm | 100 – 250 mm | up to 60 crt/min |
The dimensions are indicative. Size range can vary depending on the optional groups chosen and the machine layout.
| SIZE FORMAT CHANGE OVER In line with IMA’s philosophy, size change parts can easily be replaced ensuring ease of installation. |
 |
