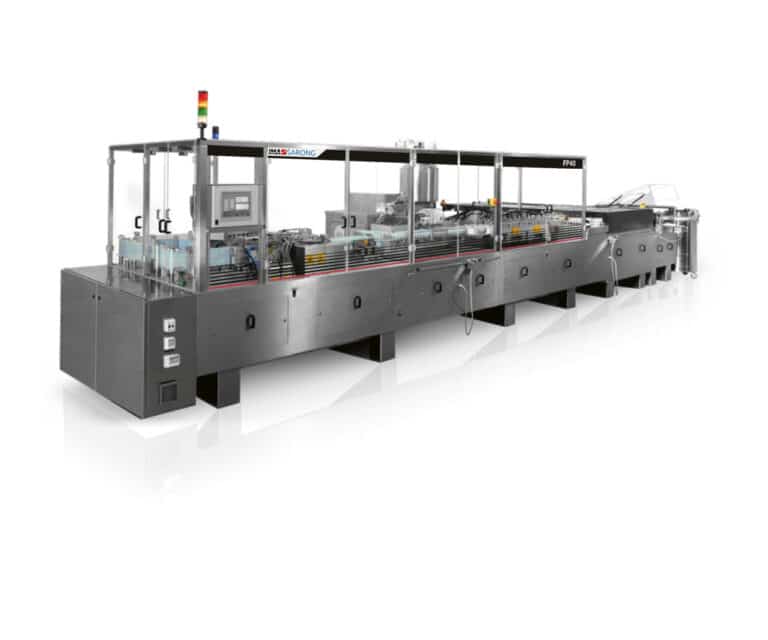

FP 40
Form, fill and seal machine
Automatic vertical thermoform, fill & seal machine for high output, up to 36.000 unit doses/hour made of plastic thermoforming materials for liquid and semi-liquid products.
Automatic vertical thermoform, fill & seal machine for high output, up to 36.000 unit doses/hour made of plastic thermoforming materials for liquid and semi-liquid products.
High-efficiency modular vertical fill & seal machine for unit-dose packaging
The FP 40 is a versatile modular vertical thermoform, fill & seal machine designed for efficient unit-dose container production. It supports continuous band formation using Sarong technology, accommodating unit-dose packs, custom shapes, peelable and squeezable opening systems, as well as packs with inserts, caps, or sticks.
The FP 40 minimizes material waste, especially for standard packs, and optimizes usage even for special shapes through precise geometrical alignment. It combines traditional mechatronics with GMP compliance, featuring separate processing and mechanical areas, stainless steel components for easy cleaning, and straightforward maintenance.
Operating on dual parallel lanes, the FP 40 is ideal for high production in both food and pharmaceutical packaging environments. It supports laminar flow for maximum sanitation. Additionally, the FP 40 offers quick tooling changeovers, allowing hot mold swaps and efficient cleaning, reducing downtime significantly.
nature_people
Sustainability
The FP 40 is able to optimize the film usage, minimizing material waste: the interlocked cutting system leads to 2 parallel formed material lanes.
settings_applications
Production Plant
IMA Sarong
FP 40 Highlights
1.
Versatility:
the FP 40 can create diverse packaging types, enabling customization for different products, such as pharmaceuticals and food.
2.
Waste optimization:
for standard packs, waste is almost negligible. The machine’s ability to geometrically optimize special shapes further minimizes material waste.
3.
Traditional technology meets innovation
the FP 40 combines traditional mechanics with modern mechatronics and Good Manufacturing Practice (GMP) standards.
4.
High output production:
capable of high production, the FP 40 operates efficiently on two parallel lanes.
5.
Clean process:
designed for sanitary conditions, the FP 40 is suitable for food and pharmaceutical packaging. It can function under a laminar flow environment to maintain high hygiene levels.
6.
Quick and easy tool changeover:
fast mold changes can be performed while the machine is still hot. The pump group, mounted on a trolley, enables quick product switches, significantly reducing cleaning time.
- Technical Data
| FP 40 TECHNICAL DATA | |
| REEL WIDTH | Max. 320 mm |
| OUTER DIAMETER | Max. 550 mm |
| CORE DIAMETER | 76 mm |
| PITCH | 260 mm |
| FORMING DEPTH | Max 20 mm on each side |
| SPEED | 35 cycles/minute |
