Designed and built to automatically wrap cartons, trays, bundles and other parallelepiped products, the A100 uses cellophane, PVC, PP and all reel-fed, heat-sealable film types, and with its entirely mechanical movements, enjoys minimal need for maintenance.
Designed and built to automatically wrap cartons, trays, bundles and other parallelepiped products, the A100 uses cellophane, PVC, PP and all reel-fed, heat-sealable film types, and with its entirely mechanical movements, enjoys minimal need for maintenance.
The A100 is an automatic, high-performance over wrapper which implements an innovative film transport system designed to cope with difficult and thin films.
Further to its consolidated reliability, the A100 offers excellent accessibility and simple changeover procedures to save time and increase productivity.
Running at 100 cycles/min., the A100 can benefit from a host of optional groups to respond to specific needs and enhance performance.
TECHNICAL DATA A100 AB | ||||||||

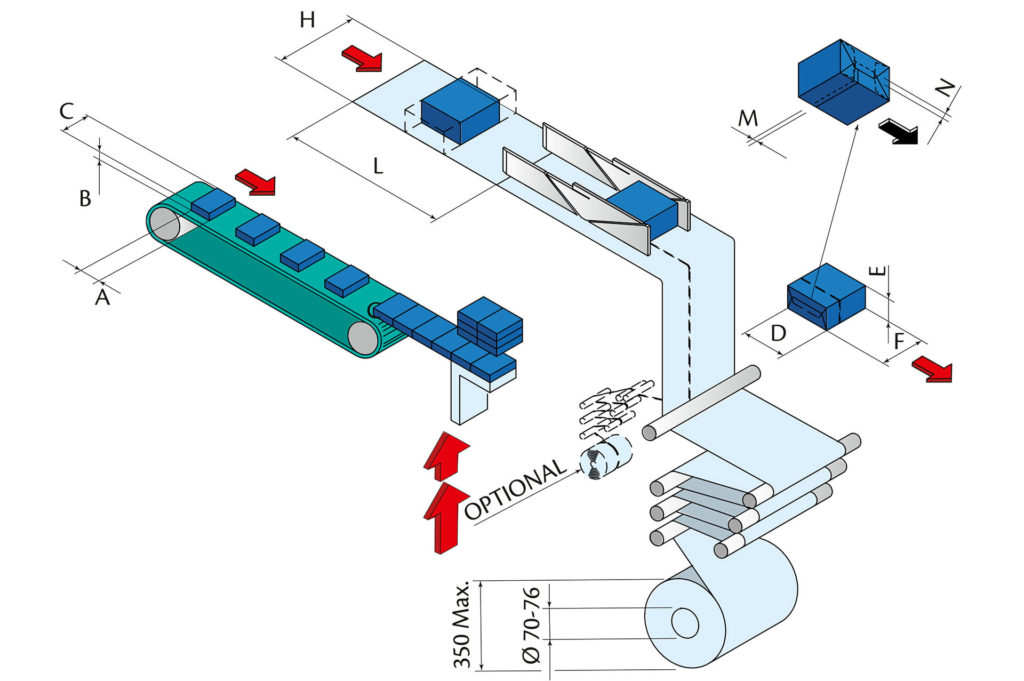

Product dimensions | A | B | C | D | E | F | H | L |
Min. | 30 | 25 | 60 | 40 | 25 | 60 | 100 | 120 |
Max. | 220 | 90 | 275 | 220 | 120 | 275 | 420 | 700 |
Production capacity | Up to 60cycles/minute | |||||||
TECHNICAL DATA A100 U | ||||||||

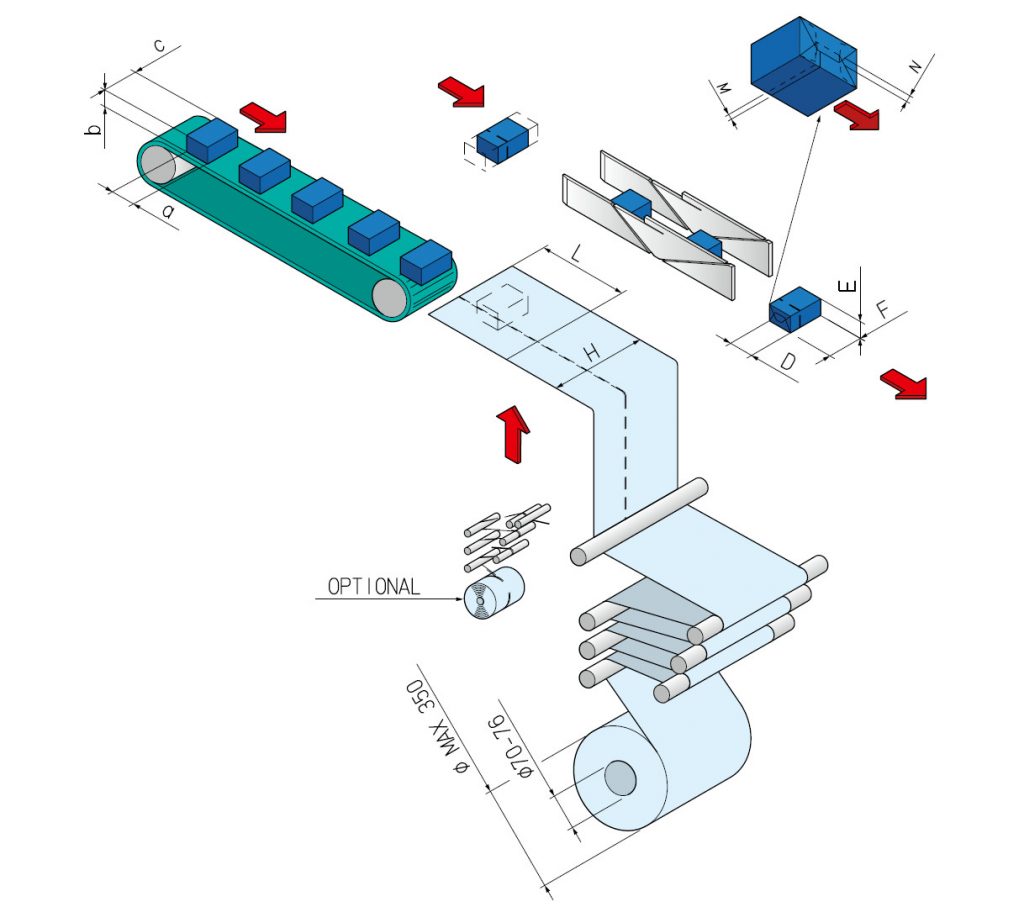

Product dimensions | A | B | C | D | E | F | H | L |
Min. | 30 | 25 | 60 | 30 | 25 | 60 | 100 | 120 |
Max. | 220 | 120 | 280 | 220 | 120 | 280 | 420 | 700 |
Production capacity | Up to 100 cycles/minute |
