Equipment capability testing service for GMP lyophilisers using trays.

Challenge outline

Customer produced a lyophilised hemostatic agent with a legacy cycle using an older lyophiliser. While attempting to increase throughput by changing the fill volume, pressure-control issues arose. Using experiments conducted in IMA’s LyoFast 3 (2.3 m2), the IMA lab was able to create an optimised cycle providing higher throughput [Stay tuned for future posts to see results from this study!]. It was now necessary to determine if the revised cycle was fit for use in the customer’s newly purchased IMA lyophiliser, a LyoMax 1 (1 m2) as part of the tech transfer process.

Objectives

• Determine minimum controllable chamber pressure
• Create equipment capability curve
• Adjust cycle parameters for tech transfer

Expected outcomes

Equipment Characterisation of Customer’s new lyophiliser to determine its limits

Approach

• Loaded customer’s lyophiliser with trays of known quantity of water and ran custom cycle designed for specific cycle parameters.
• Used thermocouples and pressure gauges to monitor process parameters.
• Performed a minimum controllable chamber pressure (MCP) test.
• Analyzed data obtained to establish relationship between sublimation rate and chamber pressure.
• Used MCP and sublimation data to modify final cycle parameters.

Objective 1: Determine minimum controllable chamber pressure (MCP)

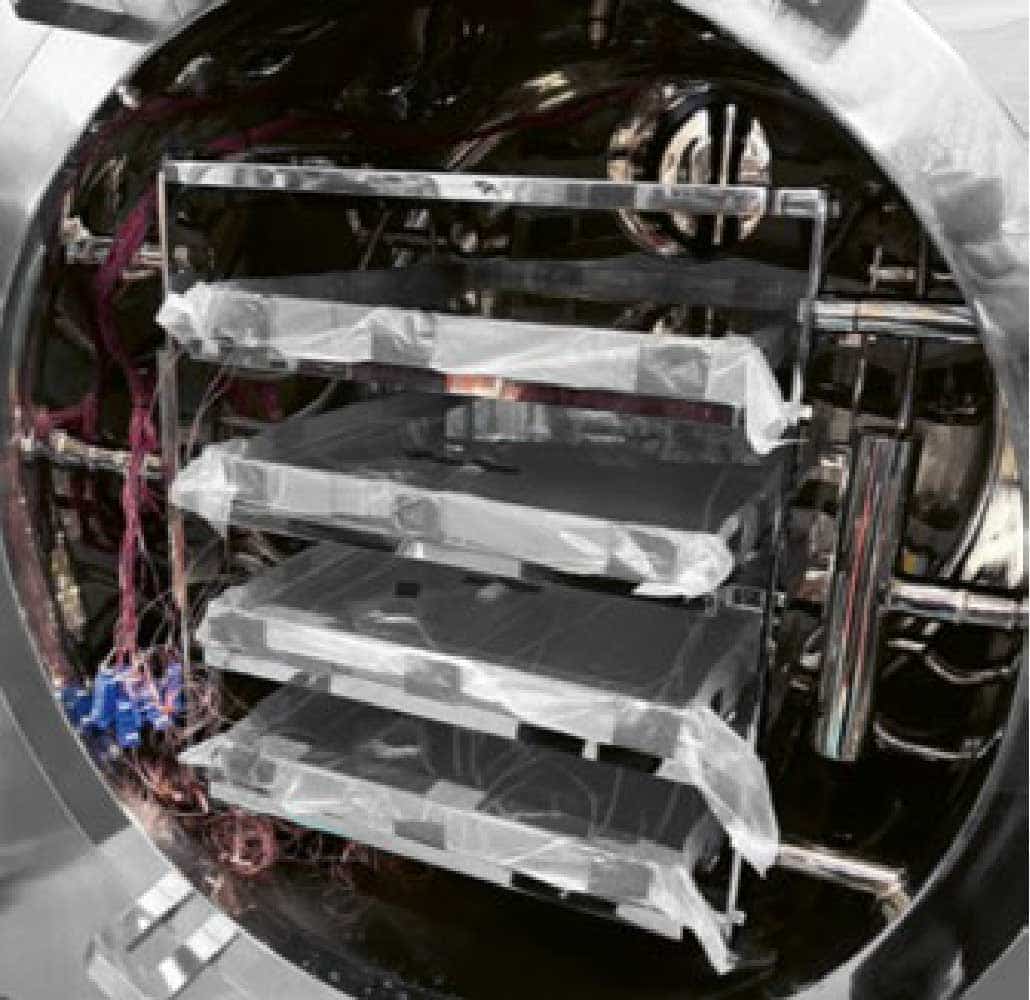

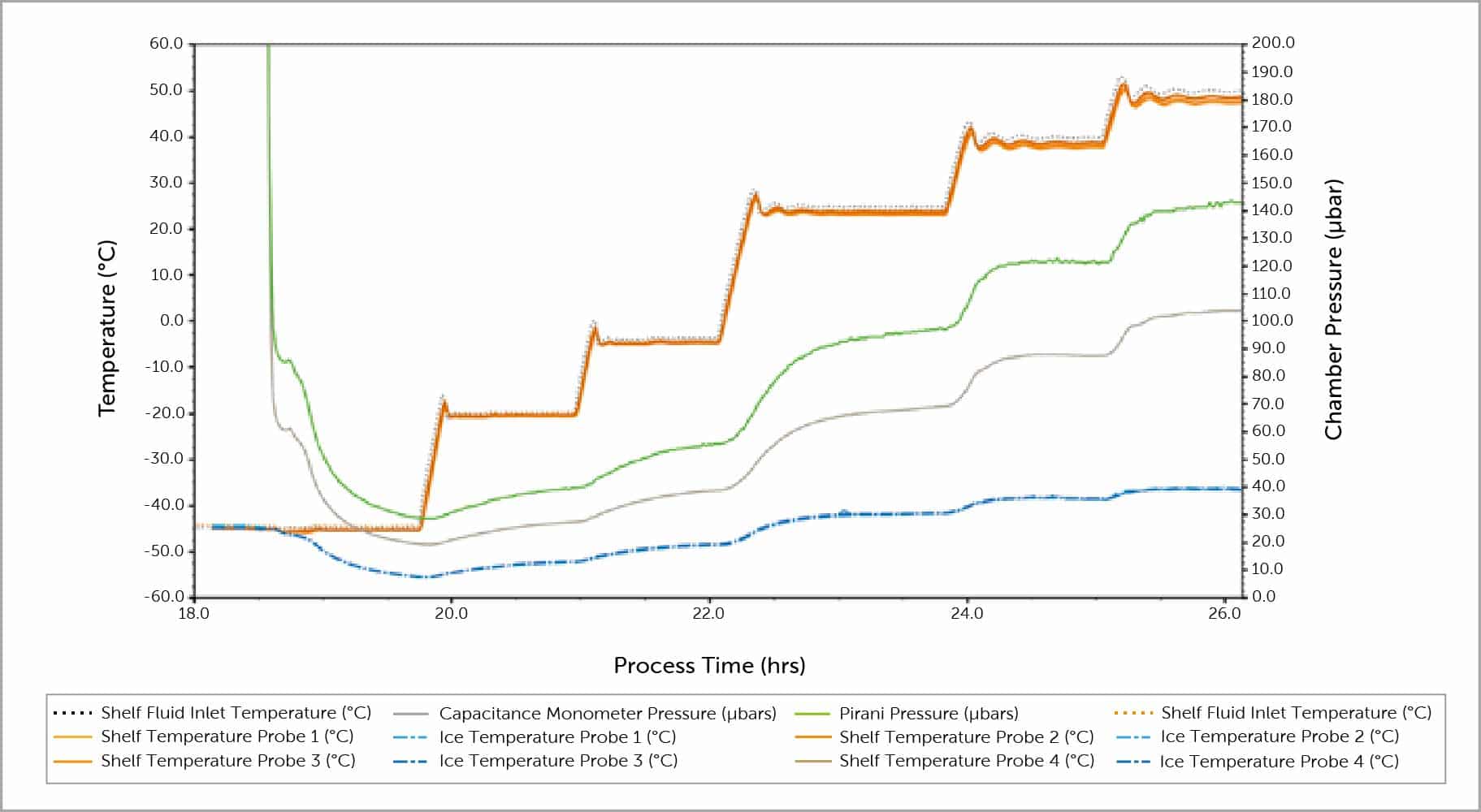

Trays of water were loaded onto each shelf and outfitted with strategically placed thermocouples. Once the water was frozen, the lyophilser was brought down to the lowest possible pressure by the system. Once steady state was achieved, the shelves were brought to a higher temperature, raising the chamber pressure. Once a new steady state was achieved the process was repeated until all desired shelf temperatures were tested.

Objective 2: Create equipment capability curve

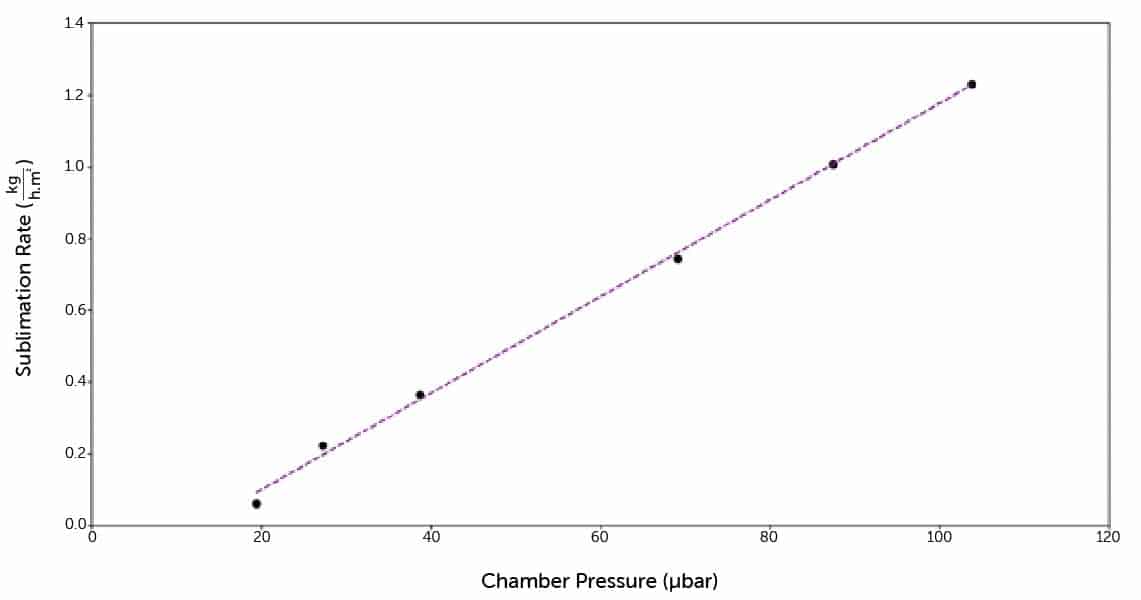

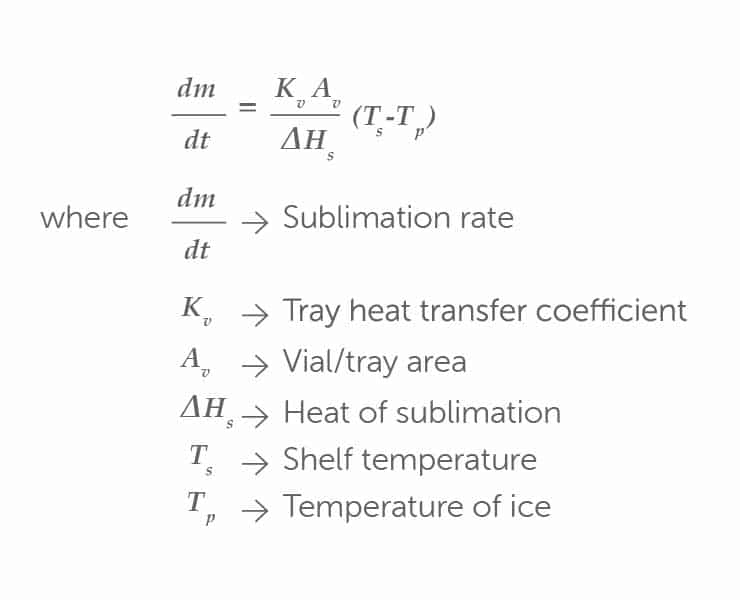

Mass of ice sublimed from each tray along with the corresponding temperature data for the ice at different shelf temperatures during the course of the MCP test was recorded. Using these data and a series of equations characterising mass and heat transfer, an area normalised sublimation rate was calculated for each MCP. The curve generated corresponds with equipment capability of the lyophiliser tested and can be used for constructing a design space

.

Objective 3: Adjust cycle parameters for tech transfer

The parameters of the optimised, higher-throughput cycle developed in the IMA lab lyophiliser were customised via changes in shelf temperatures for use in the Customer’s newly purchased lyophiliser in order to maintain product temperature profiles between the lab and GMP lyophilisers. This ensured that performance intended by the optimised cycle was faithfully replicated.

Summary

Using collected MCP data and the generated equipment capability curve, it was determined that the Customer’s lyophiliser was capable of running the optimised cycle both in terms of controllable chamber pressure and sublimation rates.

Would you like to learn more about how the optimised, higher-throughput cycle was developed? Stay tuned for future posts!
