RTV136
Jar filling and capping machine

Quick to adjust to any containers and caps to be handled, it grants outstanding performance with a high level of efficiency. All work stations are conveniently positioned within its small monobloc footprint.

Quick to adjust to any containers and caps to be handled, it grants outstanding performance with a high level of efficiency. All work stations are conveniently positioned within its small monobloc footprint.

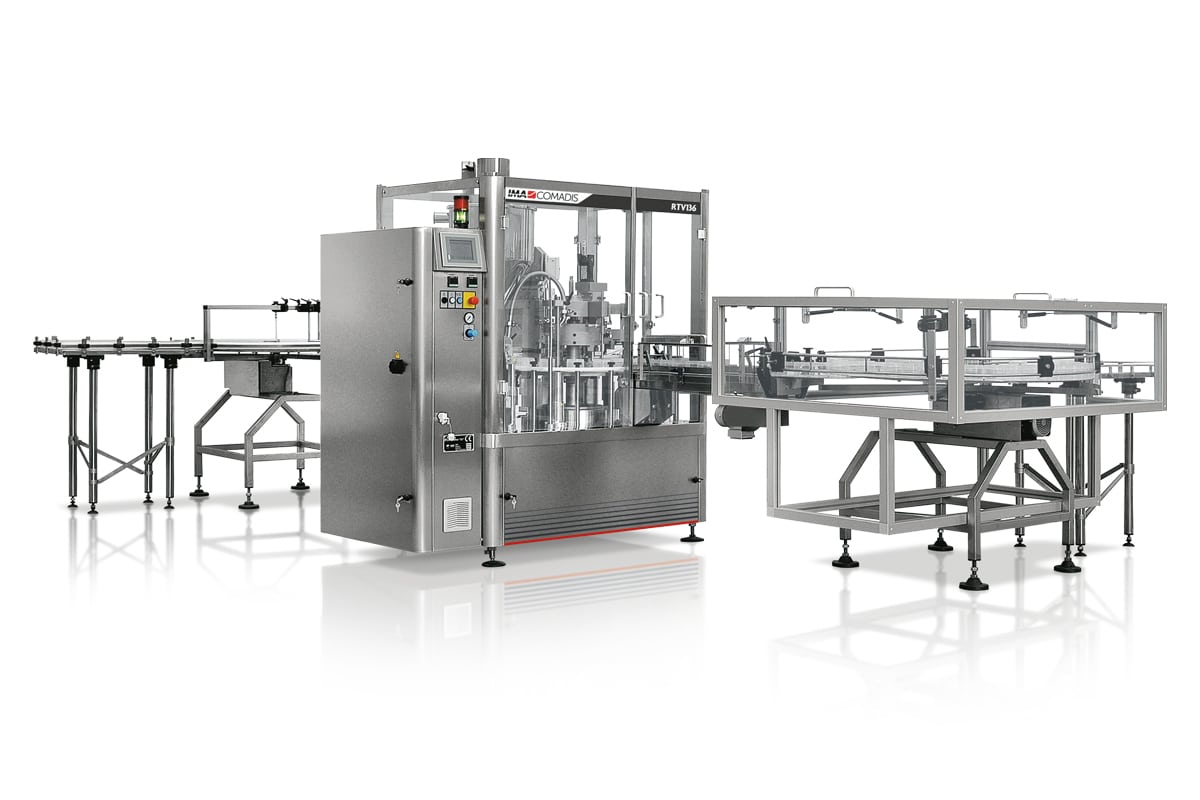

A Comadis compact jar filling and capping machine with workstations conveniently positioned within its small monobloc footprint

Cost effectively designed and manufactured with complete practicality, Co.Ma.Di.S. RTV136 is easy to change-over and operate.

Extremely suitable for small & medium production batches, it’s “quintessence” of reliability and ease of use.

nature_people

Sustainability

Noise and vibration levels have been sensitively reduced.

IMA Safe
settings_applications Production Plant
Co.Ma.Di.S. S.P.A.

RTV136 Highlights

1.
Variety of feeding systems for both jars and caps
2.
Easy-to-disassemble volumetric dosing pump, with diving filling nozzle
3.
Advanced foil trimming, positioning and sealing unit
4.
Undercap positioning device with vertical magazine
5.
Capping by servo-driven motor with programming capability
6.
Simplified and easy change of size parts, without tools
7.
Electrical cabinet integrated within machine footprint
8.
Batch data collection – by pen drive – via USB port
All the experience gained in the field of tube filling was “transplanted” in this monobloc jar-filling & capping machine, quick to meet any production needs. Its design is inspired to practicality: the perfect choice for medium size production batches.
  • Technical Data
  • Machine Layout
TECHNICAL DATA RTV136
Mechanical speed Up to 60 jars/min.
Filling volume 2-250 mL (on request up to 350 mL)
Jar diameter Up to 100 mm
Jar height Up to 80 mm

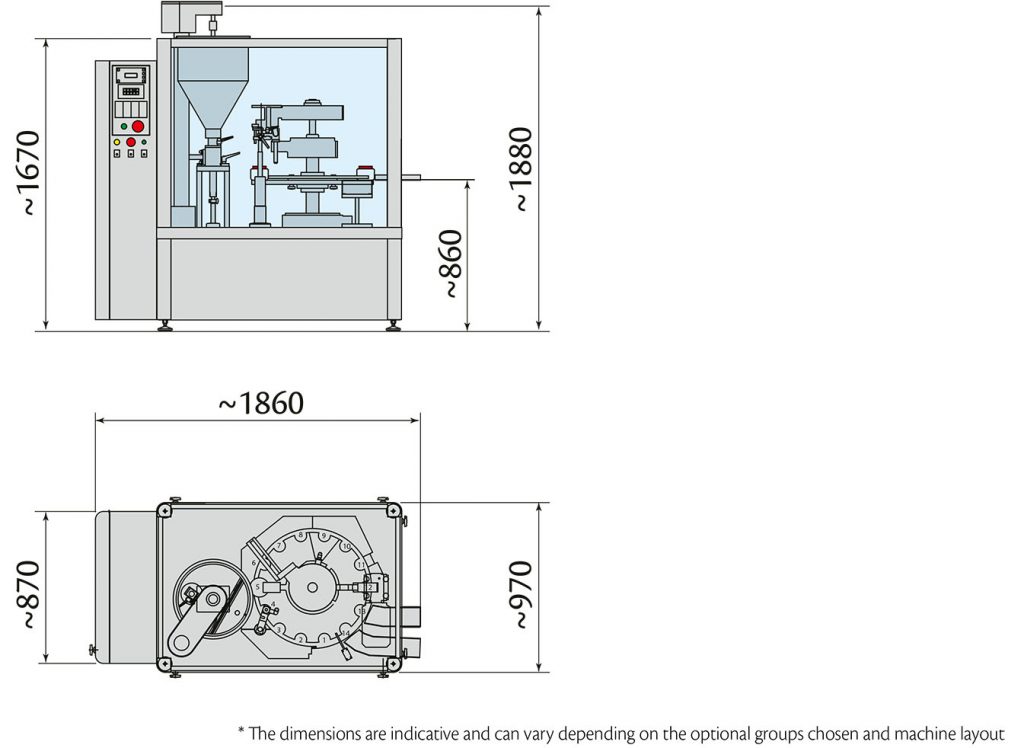

RTV136 Layout

RTV136 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Starwheel and diving filling nozzle
search
Caps buffering device by turntable
search
Caps feeding belt
search
Foil trimming station
search
Capping
search
Foil trimming and sealing
search
Undercap positioning
