FTB WA Series

Wraparound Traypacker

The FTB WA Series is a range of wraparound forming and filling machines for display boxes. Ensuring total content wraparound with zero tolerance, these compact machines handles a wide range of products, even those with extremely small dimensions.

Download Brochure

Space-saving design for diverse tray packing needs

Wraparound display packaging machine from flat blanks, IMA FTB WA Series is a range of fully automatic, wrap-around tray packers, for a wide range of products (cartons, sleeves, rigid containers, sanitizing /detergent tablets, etc.) highly appreciated across several market sectors for its key features.

Wraparound technology enables the tray to be formed directly around the bundle with zero tolerance between product and tray. This means a reduction in material consumption, while achieving significant annual savings in logistic and shipping costs. Last but not least, the quality: a tray that fits perfectly around the product looks better on the shelf and facilitates its wrapping, when needed.

Download Brochure

Sustainability


Shared bus with power exchange for consumption optimization. The motorization is handled with the aim to avoid power waste. Kinetic energy generated during braking is shared and absorbed by other modules of the machine, reducing the overall power consumption.	It allows the use of sustainable packaging materials for an eco-friendly package.

Production Plant

IMA Gima

FTB WA Series Highlights

1.
Compact design for a small footprint

2.
Possible to handle products with very small dimensions.

3.
Gentle handling: extremely smooth product handling performed with maximum care and safety.

4.
Flexibility and high efficiency

Two models are available in our FTB WA Series portfolio, FTB569 and FTB514, allowing coverage of the widest box size range and styles.

Technical Data

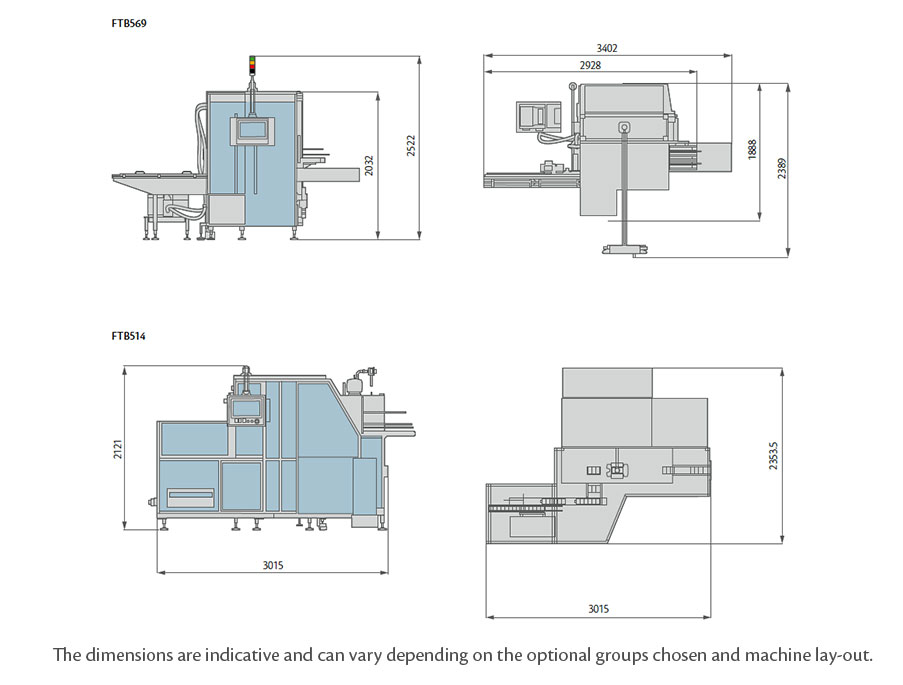

Machine Layout

FTB WA SERIES TECHNICAL DATA
SERIES MODEL	LENGTH (L)	WIDTH (W)	HEIGHT (H)	PRODUCTION SPEED
FTB569	80-200 mm	55-200 mm	12-100 mm	Up to 60 ppm
FTB514	80-200 mm	55-200 mm	12-100 mm	Up to 60 ppm

FTB WA Series Gallery

Product transfer and tray forming units

Machine general overview

Side pushing and collating

Blanks magazine

Blanks picking

Forming unit

Product outfeed
