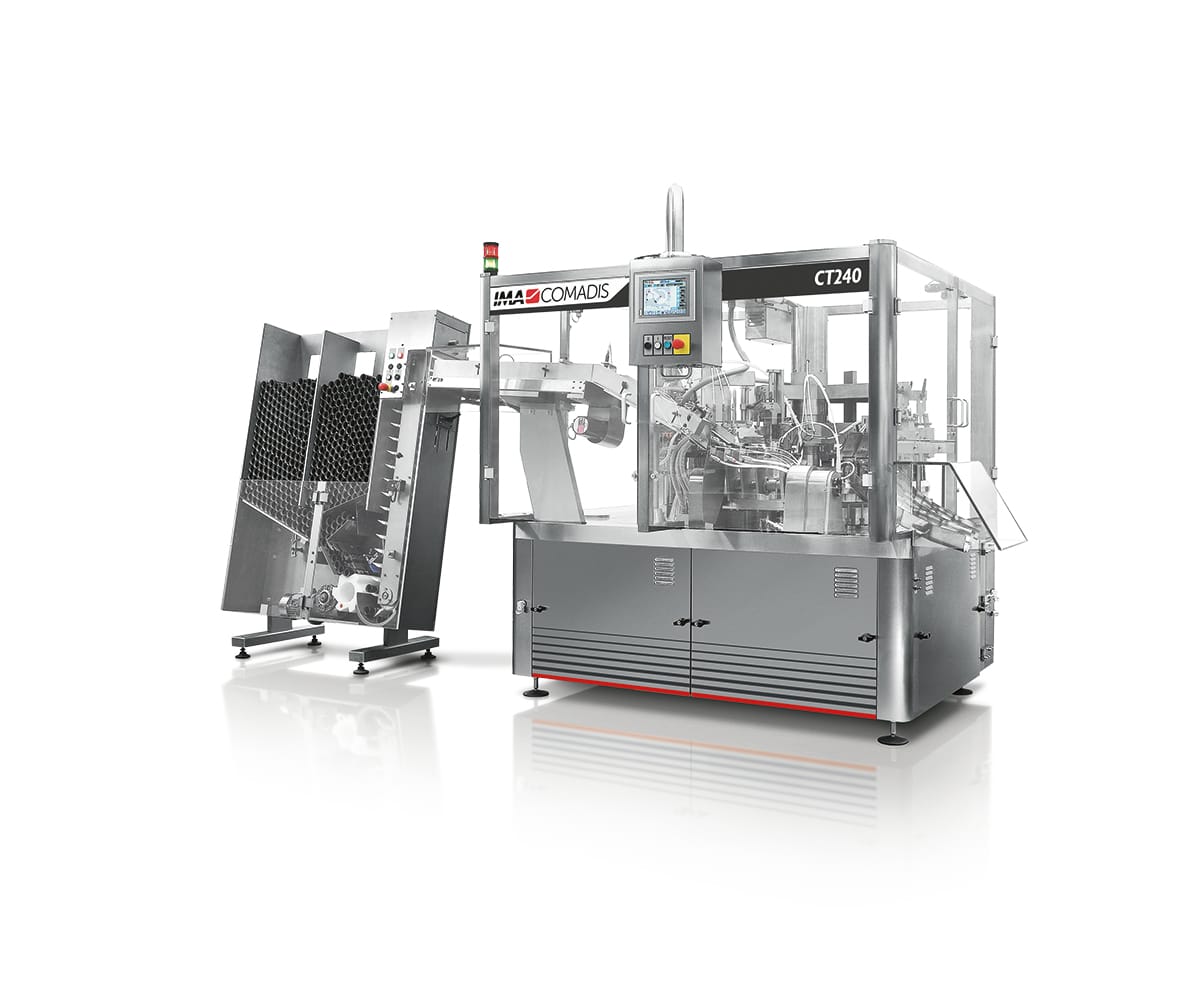

CT240
Automatic tubefiller

Marked by a genuinely impressive real output, this “large size” model produces many tens of thousands of filled tubes each production shift, with the benefit of a triple nozzle configuration that has been continuously improved and upgraded along the years.

Marked by a genuinely impressive real output, this “large size” model produces many tens of thousands of filled tubes each production shift, with the benefit of a triple nozzle configuration that has been continuously improved and upgraded along the years.

The triple-nozzle design grants a quick pace operation, whatever the products and tube sizes

An enviable experience in various applications, wide selection of configurations (including robot for tube unloading) and the legendary Co.Ma.Di.S.’ easy changeover make this model capable to combine high performances with flexibility.

nature_people

Sustainability

Noise and vibration levels have been sensitively reduced.

IMA Safe
settings_applications Production Plant
Co.Ma.Di.S. S.P.A.

CT240 Highlights

1.
Choice of automatic/robotized tube feeders.
2.
Easy-to-disassemble dosing pump.
3.
Servo-controlled diving nozzle, with positive shut-off valve and cleaning by air blow.
4.
Customized “designer seals” on request.
5.
Quick interchangeability of closing heads.
6.
Simplified and easy change of size parts, without tools.
7.
Electrical cabinet integrated within machine footprint.
8.
Batch data collection – by pen drive – via USB port.
An impressive real output. This is made possible by triple-nozzle configuration, allowing considerable production speed combined to outstanding efficiency. Comadis CT240 is strongly based on sturdiness and ease of use, avoiding any unnecessary complications.
  • Technical Data
  • Machine Layout
TECHNICAL DATA CT240
Mechanical speed Up to 240 tubes/min.
Filling volume 2-250 mL
Tube diameter 10-50 mm
Tube length 60-250 mm
Working stations 15

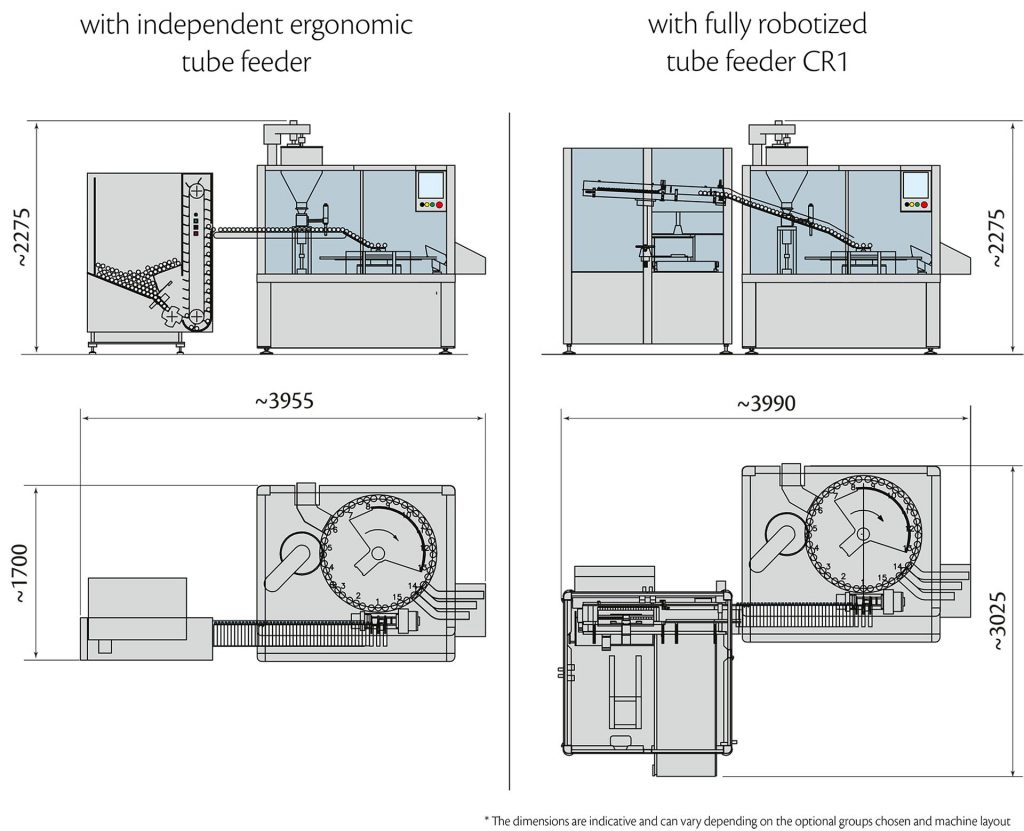

CT240 Layout

CT240 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Triple tube ejection station
search
Adjustable stroke triple diving nozzle, servo-controlled
search
Fully robotized tube feeder on request
