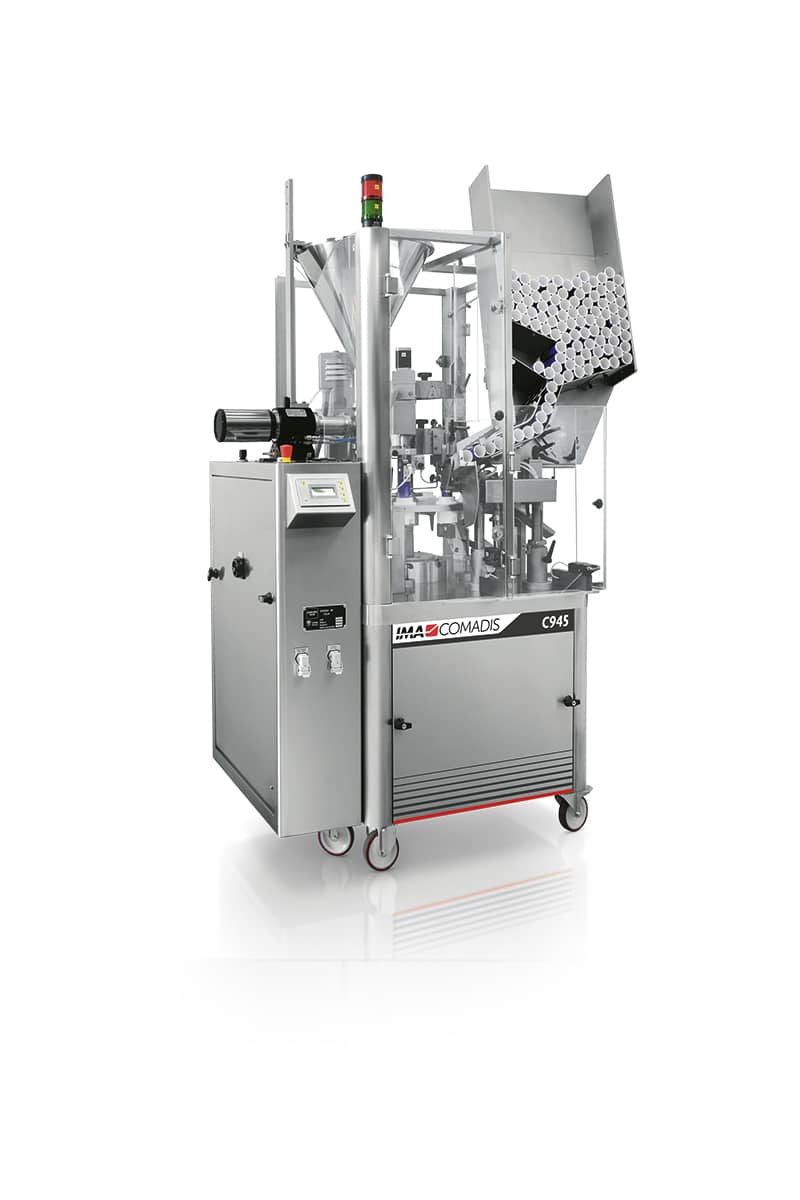

C945
Automatic tubefiller

The modular concept design allows this Comadis model to grow up together with customer needs: a lighter early configuration can be completed –in the future– with automatic tube loader, print registration device and many other ancillary equipments.

The modular concept design allows this Comadis model to grow up together with customer needs: a lighter early configuration can be completed –in the future– with automatic tube loader, print registration device and many other ancillary equipments.

The only automatic tubefiller on the market with offline filling capability

Great in performances – despite of its compact dimensions – Co.Ma.Di.S. C945 can be run in totally automatic mode, as well as a pedal-controlled filler for jars and small containers, thanks to dosing pump that can be rotated outwards.

nature_people

Sustainability

Noise and vibration levels have been sensitively reduced.

IMA Safe
settings_applications Production Plant
Co.Ma.Di.S. S.P.A.

C945 Highlights

1.
Manual or automatic tube feeding.
2.
Dosing pump easy to reposition outside machine footprint, pedal controlled.
3.
Customized “designer seals” on request.
4.
Quick interchangeability of closing heads.
5.
Simplified and easy change of size parts, without tools.
6.
Compact operator panel (HMI), suitable to memorize working parameters.
7.
Special executions available.
The smallest tubefiller on the market, marked by outstanding flexibility. Dosing pump is easy to reposition outside footprint for manual filling; interchangeable closing heads perform any type of metal tube folding and a variety of plastic tube sealing shapes.
  • Technical Data
  • Machine Layout
TECHNICAL DATA C945
Mechanical speed Up to 45 tubes/min.
Filling volume 2-300 mL (on request up to 500 mL)
Tube diameter 10-50 mm (on request polythene and aluminium tubes up to 60 mm)
Tube length 60-250 mm
Working stations 9

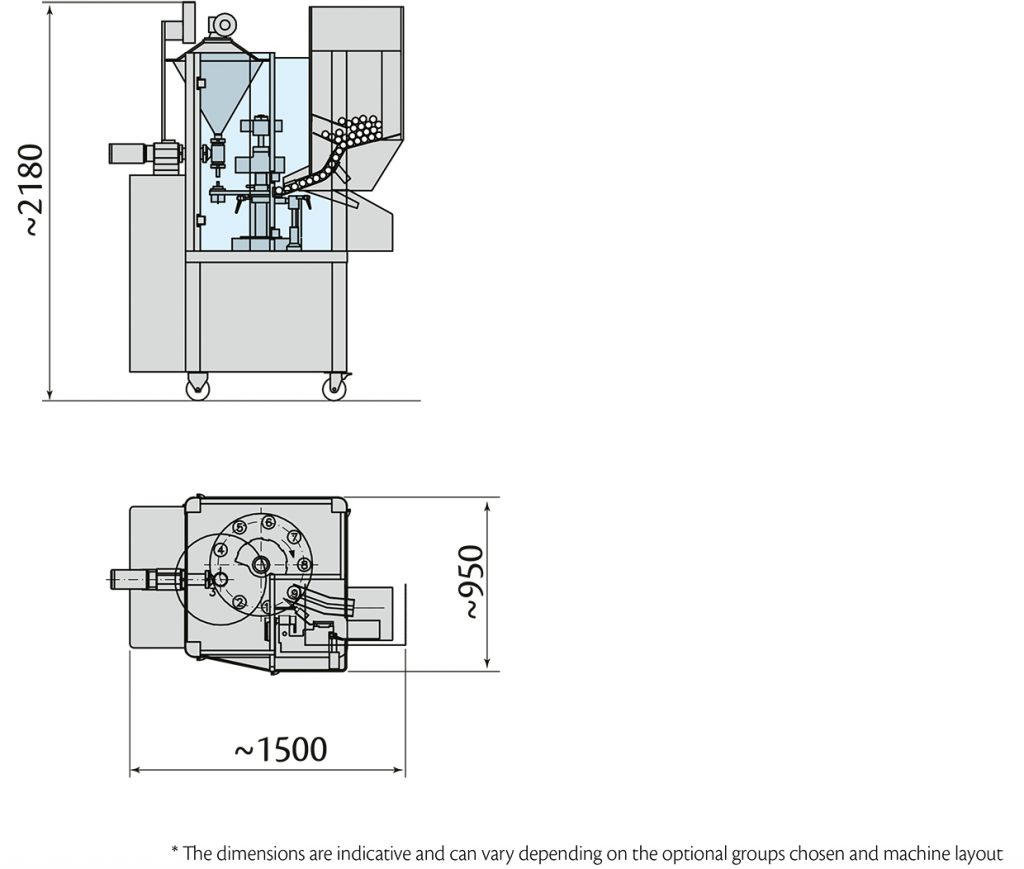

C945 Layout

C945 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Dosing pump controlled by pedal switch
search
Touch screen panel
search
Tube print registration device
