A100
Overwrapping

Designed to wrap cartons, trays, bundles and other parallelepiped products typical of the cosmetics sector, the A100 uses all reel-fed, heat-sealable film types, and with its entirely mechanical movements, enjoys minimal need for maintenance.

Designed to wrap cartons, trays, bundles and other parallelepiped products typical of the cosmetics sector, the A100 uses all reel-fed, heat-sealable film types, and with its entirely mechanical movements, enjoys minimal need for maintenance.

Innovative, high-performance overwrapping to cope with difficult or thin films.

The A100 is an automatic, high-performance overwrapper which implements an innovative film transport system designed to cope with difficult and thin films.

Further to its consolidated reliability, the A100 offers excellent accessibility and simple changeover procedures to save time and increase productivity.

Running at 100 cycles/min., the A100 can benefit from a host of optional groups to respond to specific needs and enhance performance.

IMA BFB
settings_applications Production Plant
IMA BFB

A100 Highlights

1.
Electronic system, noise level and operator safety guard according to European Standards.
2.
Film unwinding by means of driven drums to move film under guillotine knife.
3.
Lateral folding box with second and third fixed folders.
4.
Lateral, reciprocating heat-sealing plates.
5.
Centralised adjustments equipped with digital indicator for size changeover.
6.
Reel holder with quick release and fixed stop to facilitate reel replacement.
  • Technical Data
  • Machine Layout
TECHNICAL DATA A 100

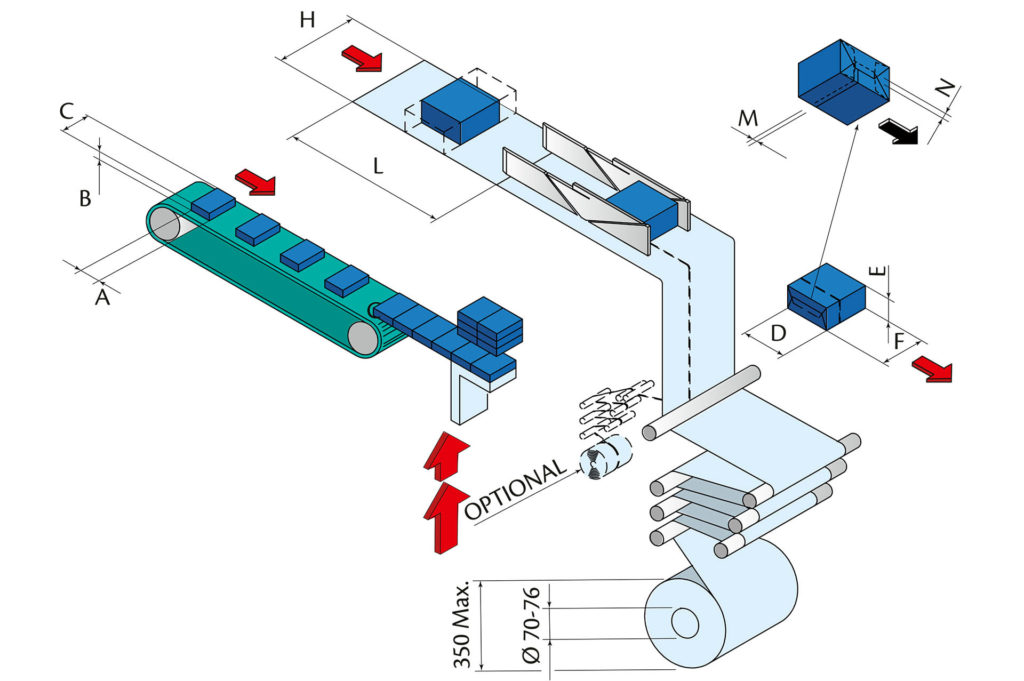

Product dimensions A B C D E F H L
Min. 30 25 60 30 25 60 100 120
Max. 220 120 280 220 120 280 240 700
Production capacity Up to 100 cycles/minute
Compressed air 5/7 bar
Installed power 6.7 kW
Air consumption 75 Nl/min.
Gross weight 1,800 Kg

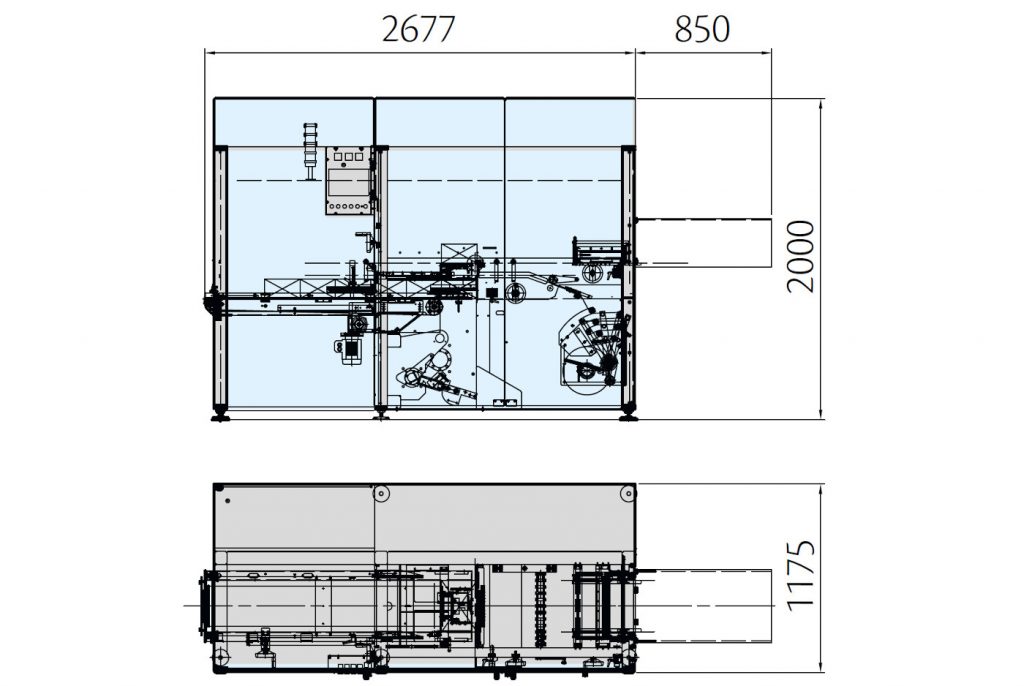

A100 Layout A100 Layout
