3711LM
Overwrapping

Able to control irregular shaped products perfectly, the 3711 LM is designed specifically to collate and overwrap all pre-wrapped bar soaps in several different bundle configurations.

Able to control irregular shaped products perfectly, the 3711 LM is designed specifically to collate and overwrap all pre-wrapped bar soaps in several different bundle configurations.

The best way to overwrap regular and irregular bar soaps.

Throughout all stages of bundling and overwrapping, the 3711 LM is in full control over all irregular shapes, thus making it the best solution for bar soap overwrapping.

Cellophane, PP and all other reel-fed, heat-sealable films are handled, and options include an additional reel holder, a film print registration unit, an automatic splicing unit and scissor knife and electronic unwinding system.

IMA BFB
settings_applications Production Plant
IMA BFB

3711 LM Highlights

1.
Several infeed collating units to match different production range.
2.
Oil-tight steel frame containing all mechanical motions.
3.
Clever machine design enables easy cleaning.
4.
Oil bath lubrication.
  • Technical Data
  • Machine Layout
TECHNICAL DATA 3711 LM
Wrapping film CELLOPHANE, PVC, PP, PE, KRAFT
Product dimensions A B C
3711 LM FAST Min. 62 25  75
Max.  120  135 280
Max. speed 105/1 – 75/2 – 50/3 – 36/4
3711 LM HS Min. 65   25 75
Max. 120 120 280
Max. speed 110/1 – 100/2 – 70/3 – 50/4
3711 LM LA Min. 40  25  75
Max. 120  90  280
Max. speed 110/1

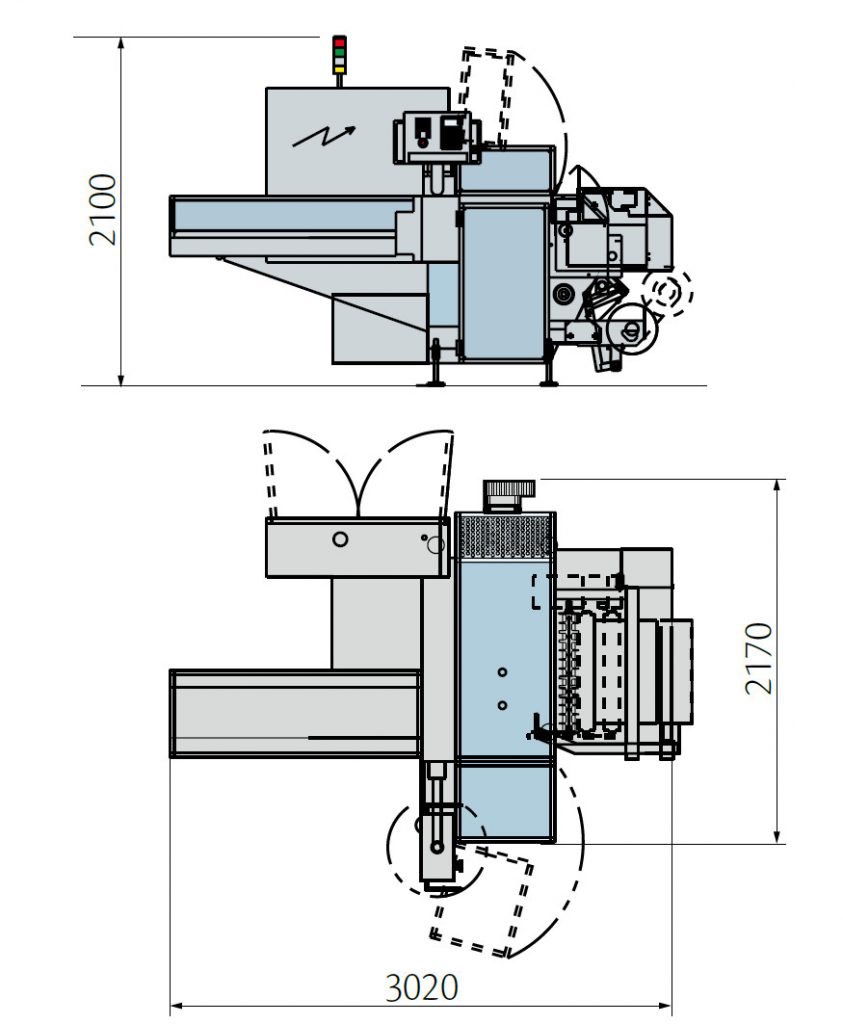

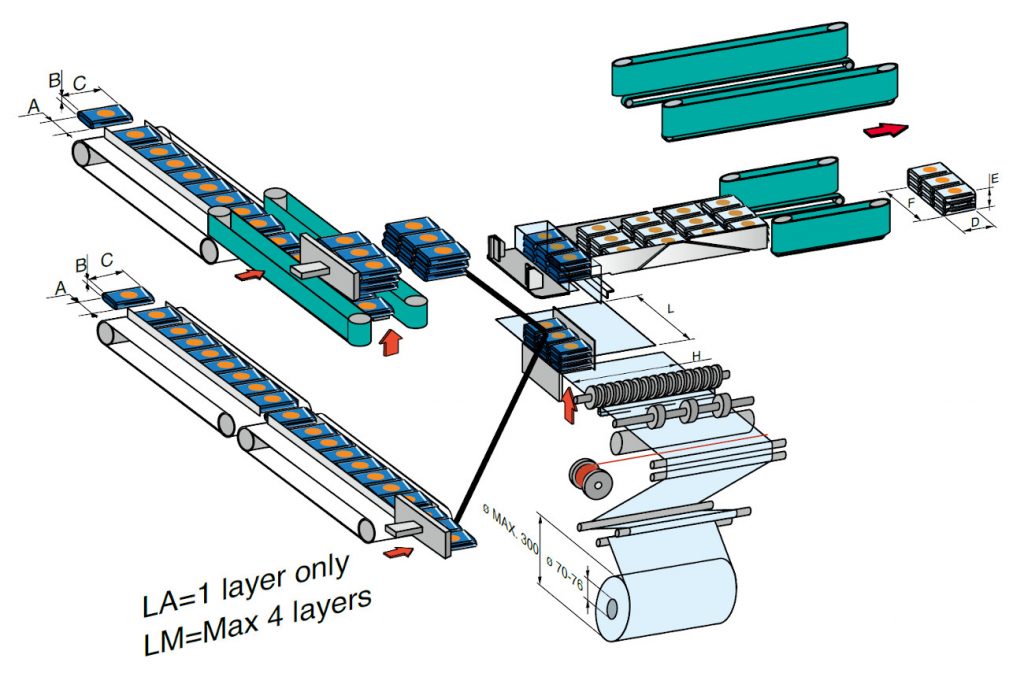

3711 LM Layout 3711 LM Layout 3711 LM Layout
