TLS
Top Loading System

TLS is a robotic system able to load/unload products from/to trays. This machine has been devised to enhance production line performance with great flexibility of functions, product handling and layout.

TLS is a robotic system able to load/unload products from/to trays. This machine has been devised to enhance production line performance with great flexibility of functions, product handling and layout.

High speed loading system

The IMA robotic manipulation system can handle the most unstable and irregularly shaped products, with the utmost accuracy taking care of them without damages.

Multi function system

  • INFEED FUNCTION
    Product unloading from trays
  • OUTFEED FUNCTION
    Product loading on trays
    (eg. quarantine purposes)
  • BUFFERING FUNCTION
    Products store buffering on trays and reverse operation when the line is ready to restart
IMA BFB
settings_applications Production Plant
IMA BFB

TLS Highlights

1.
PLC unit interacts with robot processor for straightforward operation.
2.
Operator interface for fast changeover procedures and assistance with diagnostics.
3.
Transparent guards interlocked with safety switches.
4.
Modular design of the tray magazine area.

TLS & RD Series (Robot Depalletizing modules) integrated versions

TLS can be integrated with RD Series (Robot Depalletizers) giving more production autonomy to the whole line.

  • TLS: stand alone version
  • TLS-RD2: 2 pallet stations
  • TLS-RD6: 6 pallet stations

The increasing number of pallet stations allows for a larger production autonomy. Operator’s intervention is reduced to the minimum.

TLS Thumbnail
  • Technical Data
  • Machine Layout
TECHNICAL DATA
TRAY DIMENSIONS 600 mm 400 mm

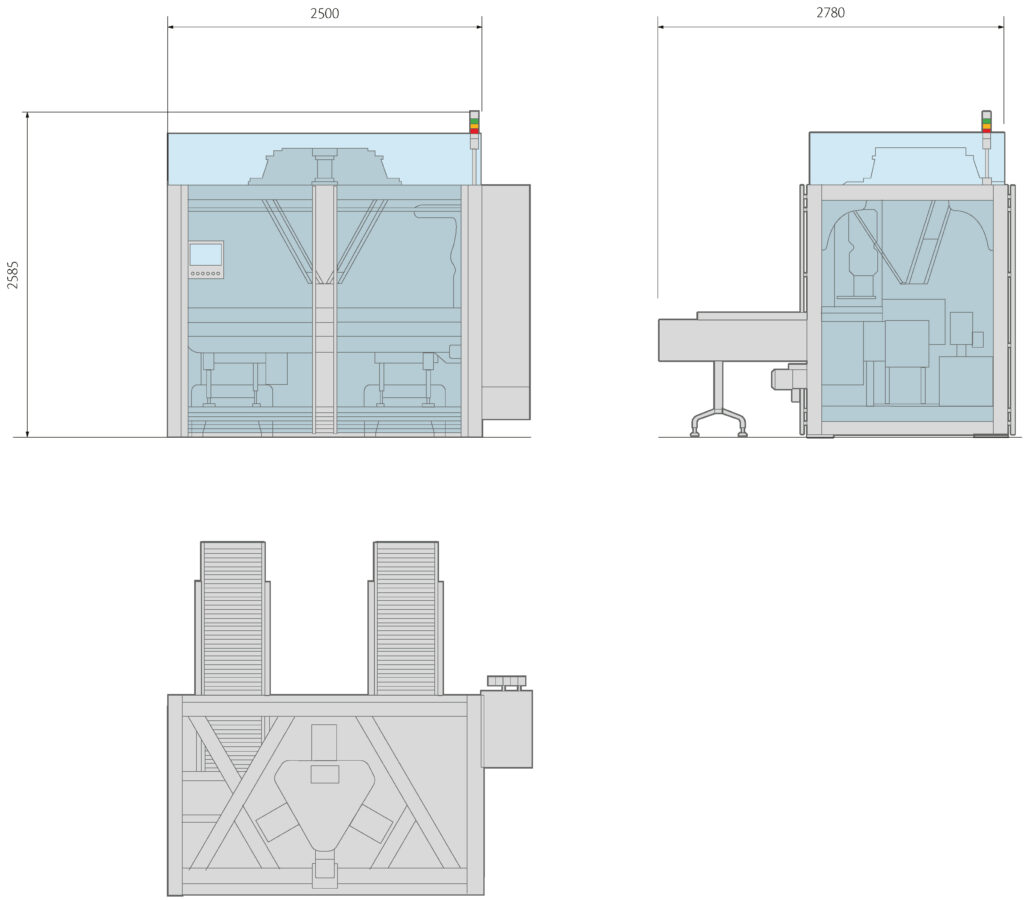

TLS Layout

TLS Gallery

keyboard_arrow_left
keyboard_arrow_right
search
General overview
search

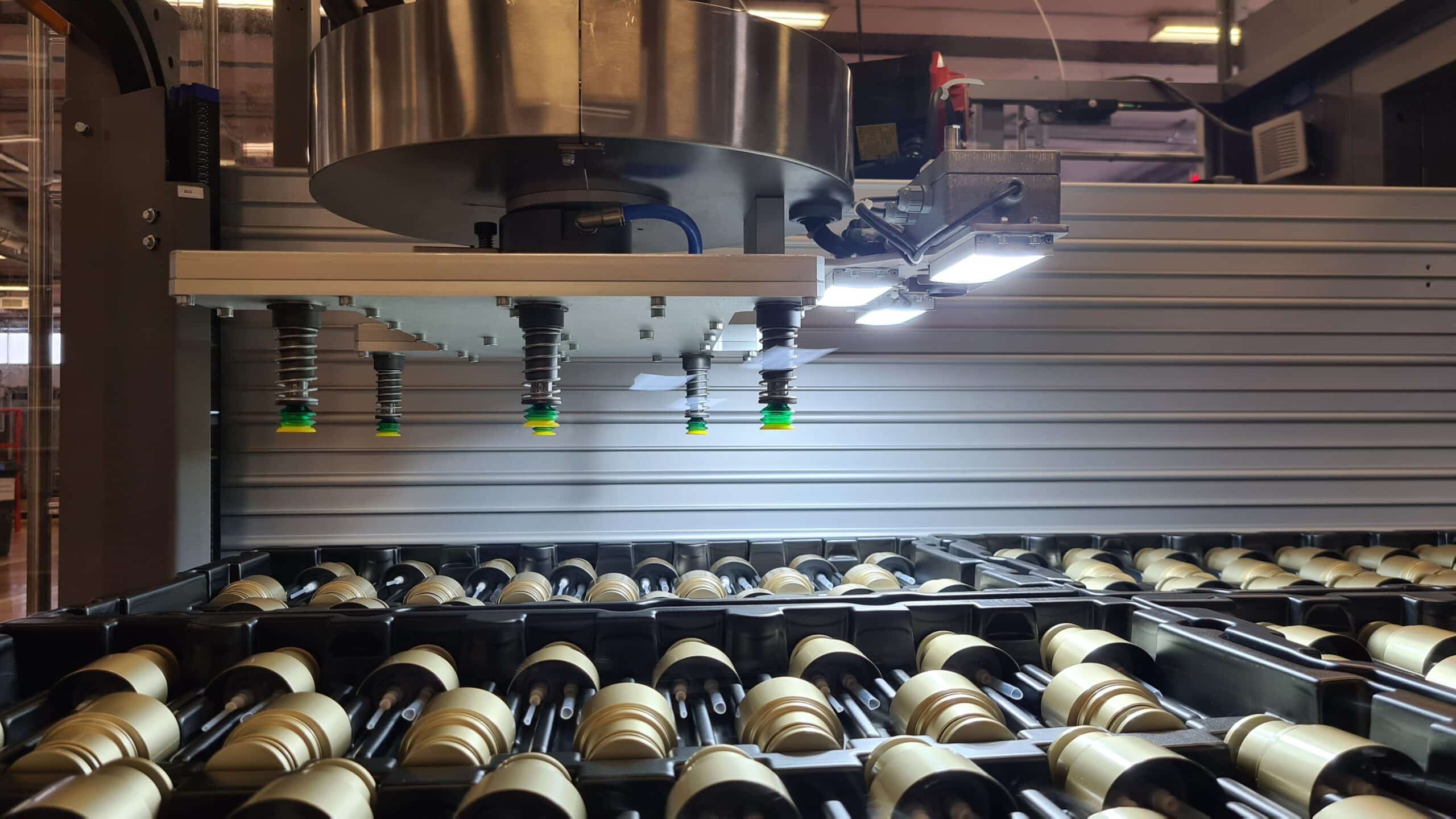

Different robotic heads available according to specific needs
search
Empty trays stacking area
