SFK Series
Tray packing

The SFK series of tray forming and sleeving machine is able to handle square and rectangular portions of cheese in any shapes, reaching a speed of up to 120 ppm

The SFK series of tray forming and sleeving machine is able to handle square and rectangular portions of cheese in any shapes, reaching a speed of up to 120 ppm

Tray forming and sleeving machine

This machine series stands out for a very compact footprint, easy operations and quick changeover.

The machine is available in different configurations and with many optionals according to customer’s needs.

nature_people

Sustainability

The motorization is handled with the aim to avoid power waste. Kinetic energy generated during braking is shared and absorbed by other modules.
The Machine can be equipped with vacuum pumps in order to reduce or avoid compressed air consumption.
It allows the use of sustainable and recyclable packaging materials.
IMA Corazza
settings_applications Production Plant
IMA Corazza

Product output options preview

keyboard_arrow_left keyboard_arrow_right
Cheese - Tray packing
  • Technical Data
  • Machine Layout
Production capacity Up to 75 boxes/min.
Full load current 3P x 400 Volt – 50 Hz – 7 Amp
Compressed air consumption 150 Nl/min. (op. pressure 6 bar)
Vacuum 2 m³/h (op. vacuum 600 ± 50 mm Hg)
Weight 3,200 Kg Approx.

Box dimensions

A (min ÷ max)
80 ÷ 124
B (min ÷ max)
80 ÷ 250
C (min ÷ max)
12 ÷ 45
Lanes 1 ÷ 3
Layers 1 ÷ 3

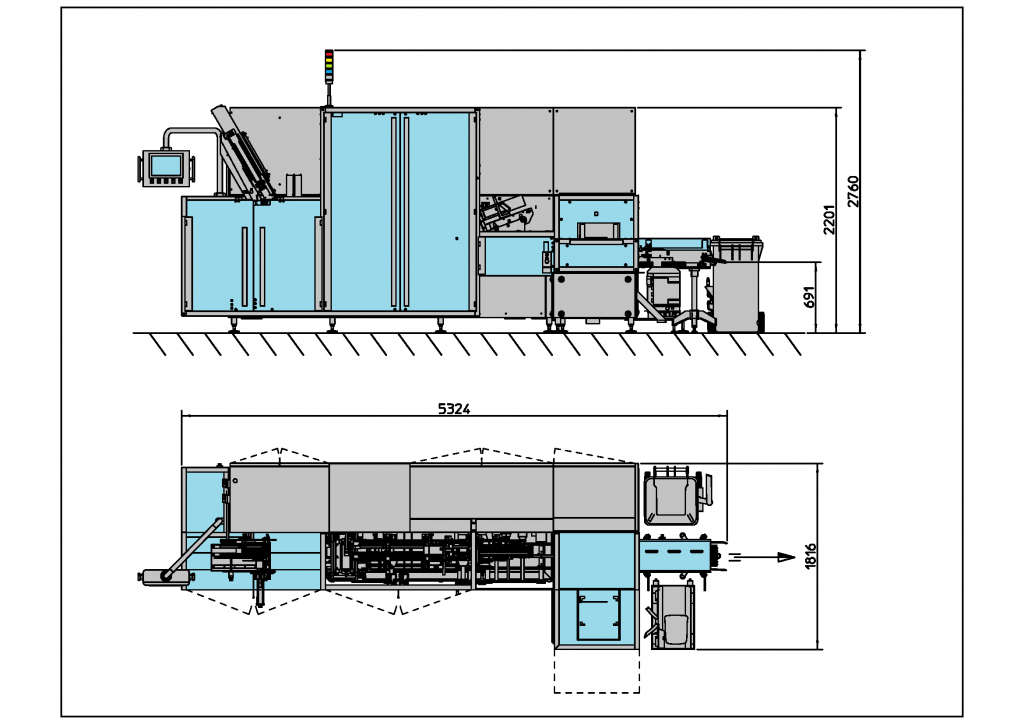

SFK Series Layout

SFK Series Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Portion grouping
search
Fake bottom infeed
search
Tray forming
search
Tray filling
search
Sleeve formation
search
Complete tray outfeed
