SF SERIES
Boxing

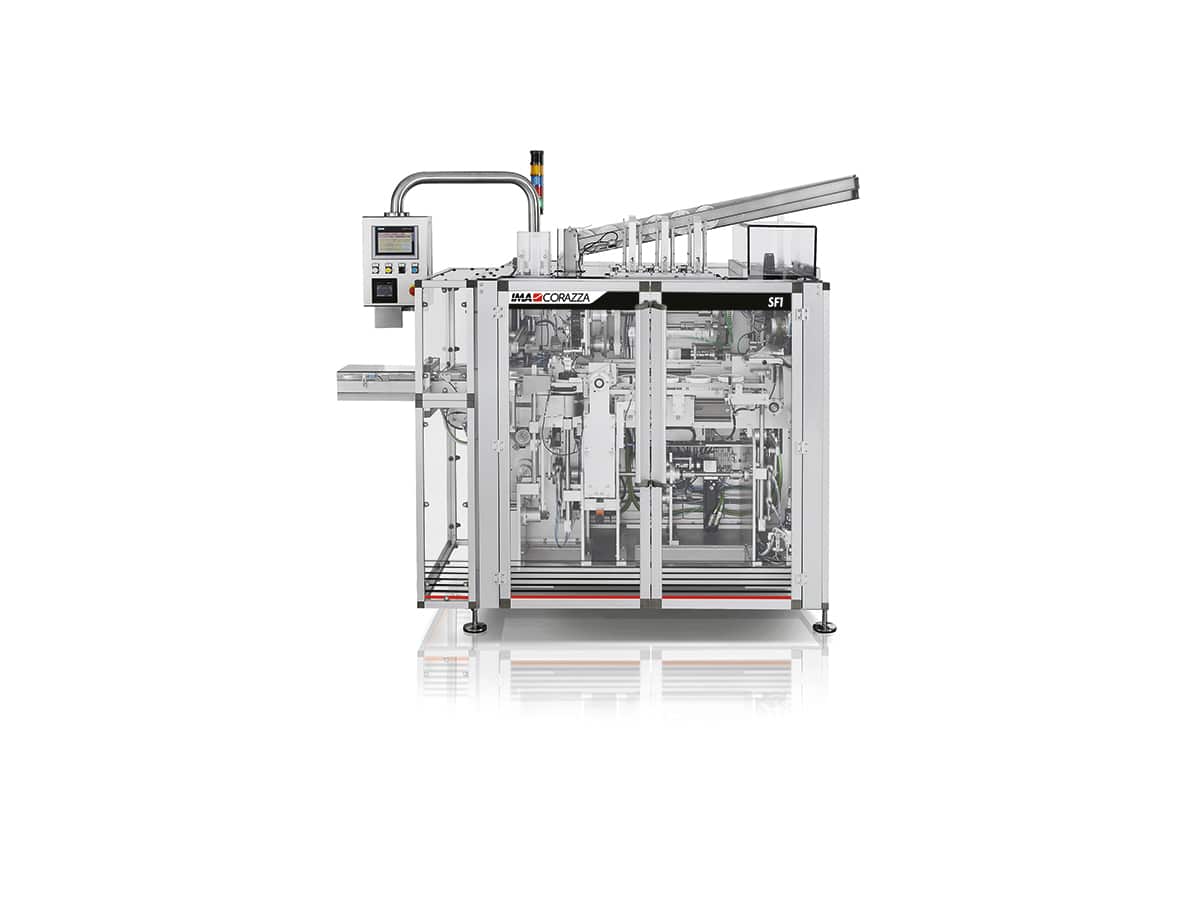

The SF1 and SF100 are both automatic cartoning machines for triangular portions of processed cheese in round boxes suited to the required bundle configuration (4 layers max)

The SF1 and SF100 are both automatic cartoning machines for triangular portions of processed cheese in round boxes suited to the required bundle configuration (4 layers max)

Cheese packaging made perfect

Easily placed in line with FF Series equipment according to production capacity, they process between 30 and 75 boxes/min.

The closed boxes are taken automatically from the magazine, opened and the lids separated from the bottoms. The bottom is placed over the formed bundle of portions, capsized and fed to the outfeed belt where it receives the lid for closing.

The SF3 boxing machine version comprises 2 parallel SF1 machines.

IMA Corazza
settings_applications Production Plant
IMA Corazza

Product output options preview

keyboard_arrow_left keyboard_arrow_right
Cheese - Boxing
  • Technical Data
  • Machine Layout
Machine model SF1 SF100
Production capacity Up to 35 boxes/min. Up to 75 boxes/min.
Full load current 3P x 400 Volt – 50 Hz – 2 Amp 3P x 400 Volt – 50 Hz – 4 Amp
Compressed air consumption 150 Nl/min. (min op. pressure 6 bar) 230 Nl/min. (min op. pressure 6 bar)
Vacuum 10 m³/h (op. vacuum 600 ± 50 mm Hg) 4 m³/h (op. vacuum 600 ± 50 mm Hg)
Weight 1,000 Kg Approx. 1,700 Kg Approx.
Box configurations 6/6 – 8/8 – 12/12

Box dimensions

A (min ÷ max)
112 max.
B (min ÷ max)
85 max.
Layers 1 ÷ 4

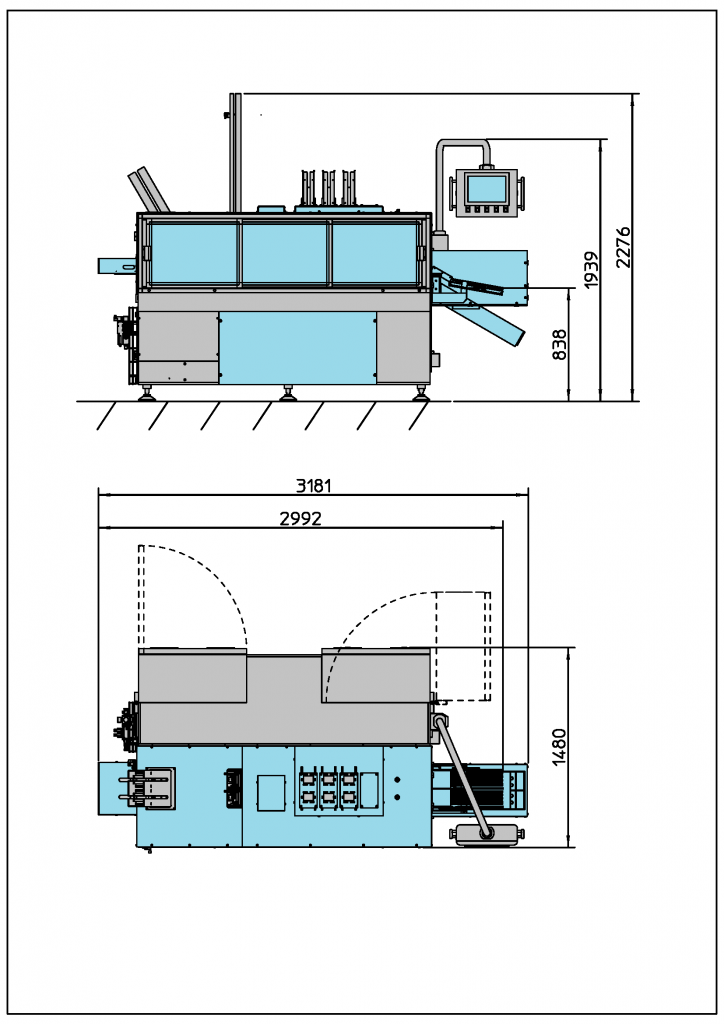

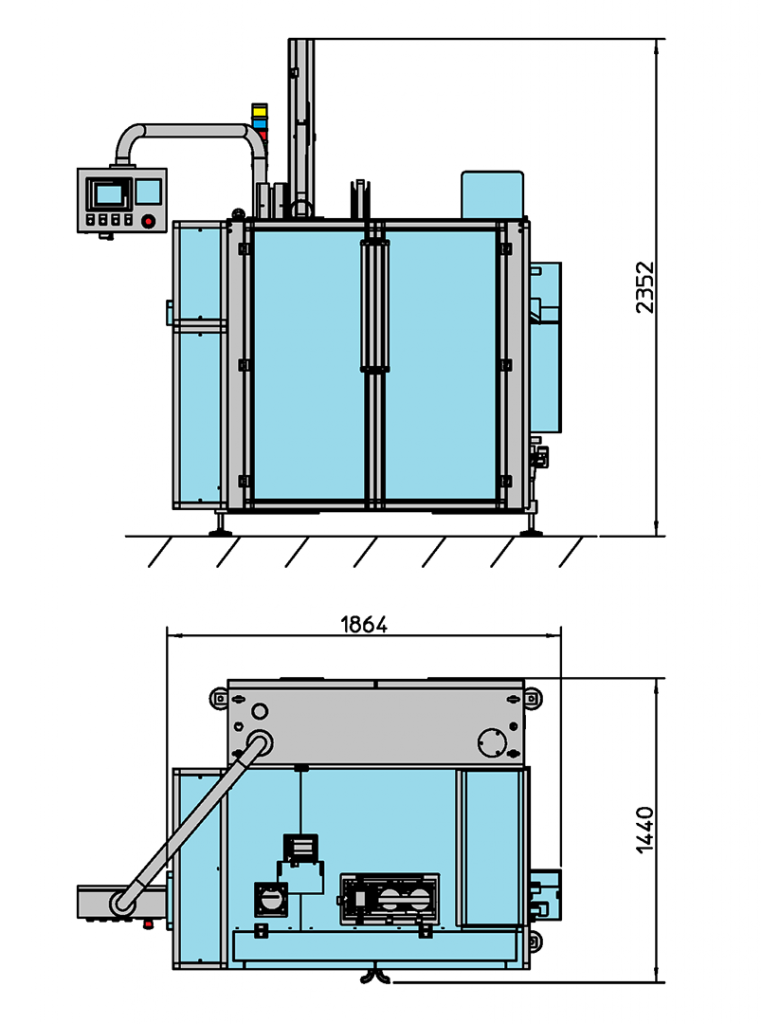

SF Series Layout SF Series Layout

SF Series Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Box magazine opening unit
search
Box magazine opening detail
search
Bottom infeed
search
Trading stamp infeed
search
Lid infeed box outfeed box
search
Weight checker
