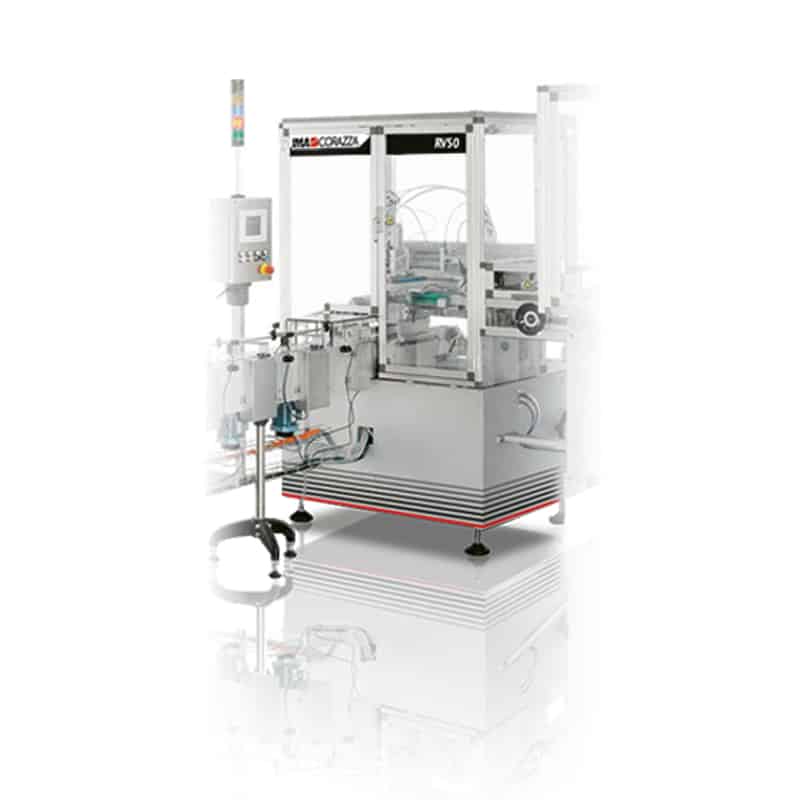

RV50
Tray Packing

Designed to insert square or rectangular wrapped cheese portions into pre-formed carton trays, the RV50 is placed downstream from a wrapping machine feeding portions arranged in single file via conveyor belt

Designed to insert square or rectangular wrapped cheese portions into pre-formed carton trays, the RV50 is placed downstream from a wrapping machine feeding portions arranged in single file via conveyor belt

Efficient and reliable

Designed to insert square or rectangular wrapped cheese portions into pre-formed carton trays, the RV50 is placed downstream a wrapping machine feeding portions arranged on a single lane via a conveyor belt.

The portions are grouped and subsequentely placed on trays coming from the forming machine.

The RV50 handles up to 30 trays/minute.

IMA Corazza
settings_applications Production Plant
IMA Corazza

Product output options preview

keyboard_arrow_left keyboard_arrow_right
Cheese - Tray packing
  • Technical Data
  • Machine Layout
Production capacity Up to 30 boxes/min.
Full load current 3P x 400 Volt – 50 Hz – 10 Amp
Compressed air consumption 100 Nl/min. (op. pressure 6 bar)
Weight 1,000 Kg Approx.

Box dimensions

A (min ÷ max)
200 ÷ 400
B (min ÷ max)
300 ÷ 600
C (min ÷ max)
20 ÷ 120
Lanes 1 ÷ 3
Layers 1 ÷ 2

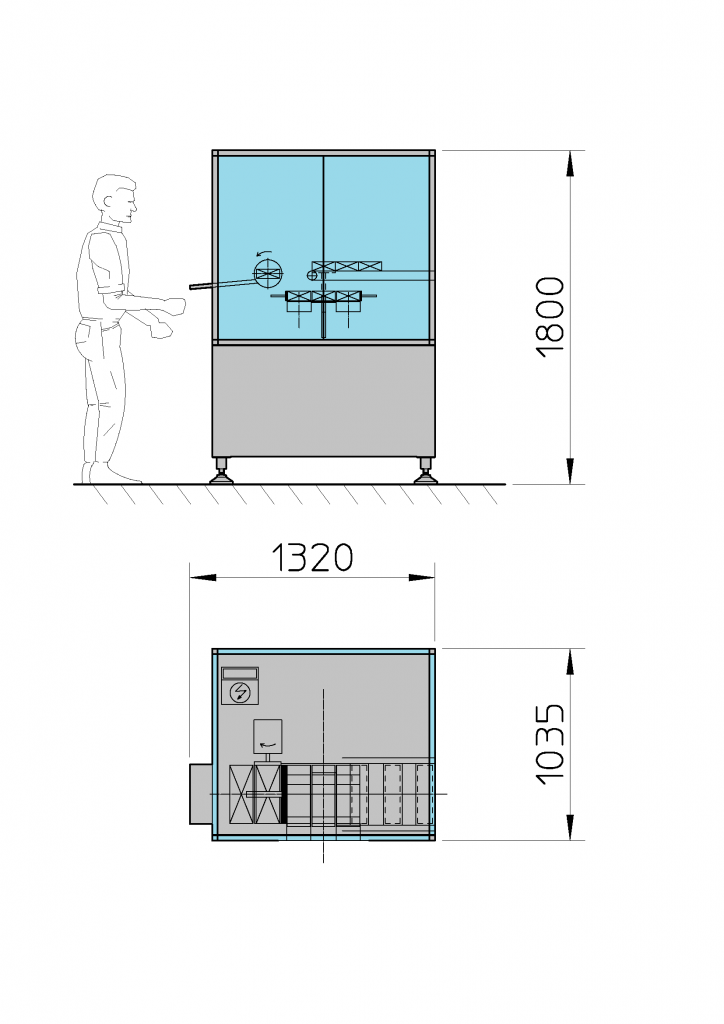

RV50 Layout
