MULTIPACK 8600
Dosing and Wrapping

With an output of up to 300 packets/min and a size range of 50 to 180 g, the double-cell MULTIPACK 8600 achieves the highest output worldwide, for dosing and wrapping pasty type products

With an output of up to 300 packets/min and a size range of 50 to 180 g, the double-cell MULTIPACK 8600 achieves the highest output worldwide, for dosing and wrapping pasty type products

Attractive, intellingent and offering outstanding control technology for the highest output worldwide

With an output of up to 300 ppm and a size range of 50 to 180 g, the double-cell MULTIPACK 8600 achieves the highest output worldwide, for dosing and wrapping pasty type products, proving exceptional size flexibility for such high-speed operation.

Furthermore it is equipped with an advanced dosing system with constant dosing time for different filling profiles ensuring outstanding dosing accuracy (s=0,3 g for Qn<180 g).



IMA Benhil
settings_applications Production Plant
IMA Benhil

MULTIPACK 8600 Highlights

1.
Exceptional filling accuracy
2.
Advanced dosing system with constant dosing time
3.
Wrapper registration: photo-electric, for wrapper with printed scanning marks

Cartomat 8562/8563

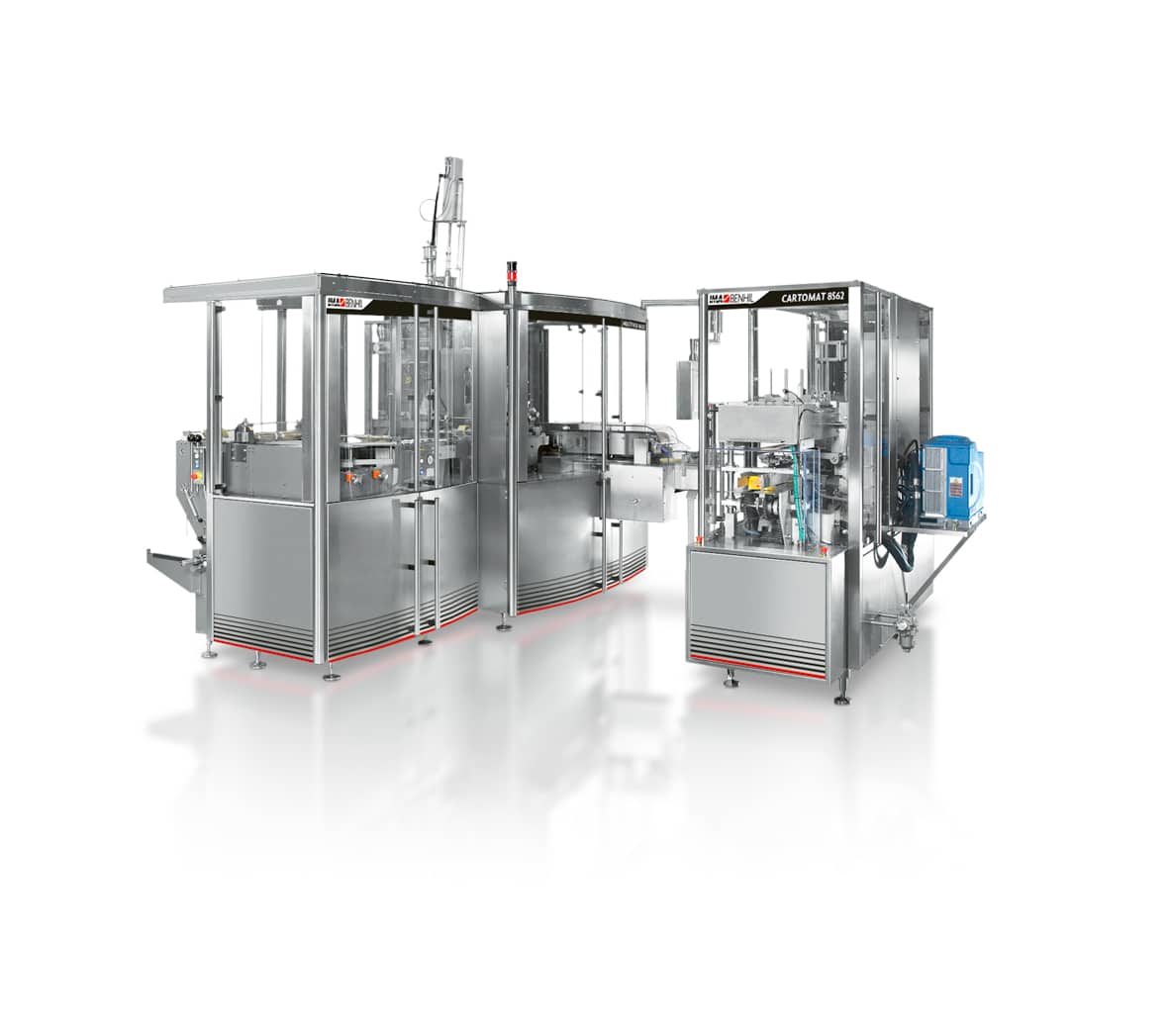

The MULTIPACK 8600 can works in line with the CARTOMAT 8562/8563, which is a fully automatic wrap-around cartoner for consumer portions with carton closing by hot melt (inserted flaps or gluing all around types).

Starting from flat blank cartons and with an output up to 100 cartons per minute it can handles 2-24 portions allowing different products configurations: e.g. from 2×1 in one layer up to 6×2 in two layers.

MULTIPACK 8600 Thumbnail

Product output options preview

keyboard_arrow_left keyboard_arrow_right
Butter & Margarine - Wrapping consumer portion
Butter & Margarine - Cartoning
  • Technical Data
  • Machine Layout
Filled products Butter, margarine, edible fats, fresh cheese
Dosing range 50 – 180 g
Nominal output Up to 300 packets/min.
Filling accuracy s = 0.3 g for Qn < 180 g
Product feed Direct feed from the process plant
Wrapping material Parchment, aluminum laminated foil, plastic coated papers, PE foil, other materials on request
Folding and shapes Bottom fold for Sticks
End-of-line packaging IMA Benhil Cartomat 8562/8563
Equipment Servo-driven main drive, individual servo-drives for wrapping material feed, Photo-electric for wrapper with printed scanning marks,dosing unit and lifting cells, CIP cleanable dosing unit, corrosion-resistant materials in the filling area
Options CIP cleanable dosign unit, date coding, central lubrication, tendency control, discharge conveyor, remote access control, USDA execution.
Machine control PLC by Allen Bradley with touch screen operating panel

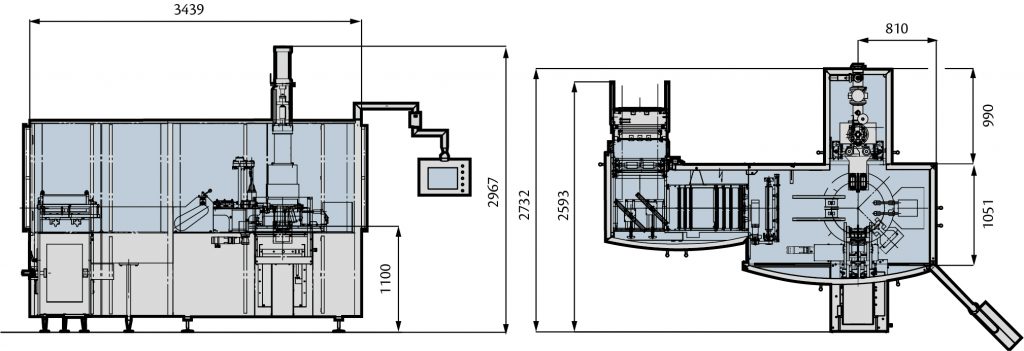

MULTIPACK 8600 Layout

MULTIPACK 8600 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Wrapper feeding system
search
Folding box
search
Dosing unit
search
End folding unit
search
Carton forming
search
Carton outfeed
