Multipack 7000

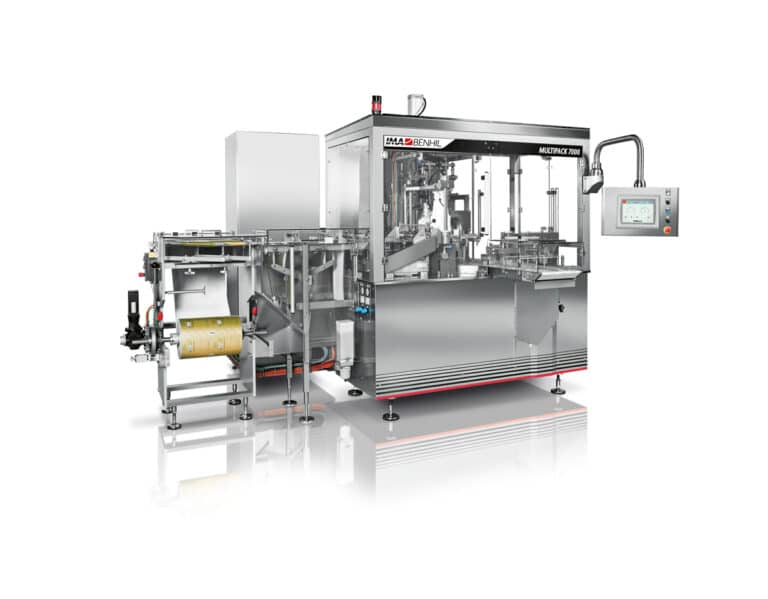

The MULTIPACK 7000, high speed dosing and wrapping machine for butter and margarine, outstanding for its modern, attractive design, for the integrated cip cleanable dosing system and the intelligent control technology.
The MULTIPACK 7000, high speed dosing and wrapping machine for butter and margarine, outstanding for its modern, attractive design, for the integrated cip cleanable dosing system and the intelligent control technology.
High-speed, top-value machine
With an output of up to 200 packets/min. in twin execution and a filling weight/ size range going from 50 to 250 g, the new double-cell Multipack 7000 combines performance and efficiency to provide a valid solution at an affordable price.
When faced with the need to switch frequently between different sizes, heights and packet footprints, the Multipack 7000 offers superb flexibility, and height adjustment procedures are fast, especially easy with the optional electrical packet height adjustment system. For complete changeovers, no more than 45 minutes are needed to replace size parts.
settings_applications
Production Plant
IMA Benhil
- Technical Data
- Machine Layout
| MULTIPACK 7000 TECHNICAL DATA | |
| Filled products | Butter, margarine, edible fats, fresh cheese |
| Dosing range | 50 g – 250 g |
| Nominal output | Up to 200 packets/min. |
| Filling accuracy | s= 0.2g for Qn ≤ 100 g; s= 0.3g for Qn ≤ 250 g |
| Product feed | Direct feed from the process plant or product hopper |
| Wrapping material | Aluminum laminated foil, plastic coated papers, PE foil, other materials on request |
| Folding and shapes | Bottom fold for bricks/cubes |
| End-of-line packaging | By downstream fully automatic or semi-automatic case packer |
| Equipment | Servo-driven main drive, individual servo-drives for wrapping material feed , servo driven dosing unit and lifting cells, Photo-electric unit for wrapper with printed scanning marks, CIP cleanable dosing unit, corrosion-resistant materials in the filling area |
| Options | CIP valve system, date coding, central lubrication, tendency control, discharge conveyor, remote access control, UL electrics. |
| Machine control | PLC by Allen Bradley with touch screen operating panel |
