MULTIPACK 5500
Dosing and Wrapping

The MULTIPACK 5500 features a servo-driven dosing device and servo-driven lifting cells, boosting operating speeds to make it the world’s top-performing, energy-efficient single-cell filling and wrapping machine for pasty products

The MULTIPACK 5500 features a servo-driven dosing device and servo-driven lifting cells, boosting operating speeds to make it the world’s top-performing, energy-efficient single-cell filling and wrapping machine for pasty products

The servo-driven benchmark for filling and wrapping pasty products

Flexible and energy-efficient thanks to its servo-driven concept, the MULTIPACK 5500 wrapping machine reduces power consumption by up to 30% and offers a range of dosing weights between 50 and 500 g of pasty type products, packing up to 140 ppm.

Boasting exceptional dosing accuracy (s=0.3 g for Qn<250 g), this machine can be fitted with a CIP cleanable dosing system which fulfils industry standard hygienic requirements.

IMA Benhil
settings_applications Production Plant
IMA Benhil

MULTIPACK 5500 Highlights

1.
Exceptional filling accuracy
2.
Energy efficient machine concept reduces power consumption of approximately 30%
3.
Size flexibility within the weight range of 50 - 500 g with very short changeover times
4.
Packet shapes: brick or cube

Product output options preview

keyboard_arrow_left keyboard_arrow_right
Butter & Margarine - Wrapping consumer portion
Butter & Margarine - Wrapping big portion
  • Technical Data
  • Machine Layout
TECHNICAL DATA MULTIPACK 5500
Filled products Butter, margarine, edible fats, fresh cheese and other pasty products
Dosing range 50 – 500 g
Nominal output Up to 140 packets/min., depending on the filled product
Filling accuracy s = 0.3 g for Qn < 250 g
Product feed Direct feed from the process plant, product hopper or trough with feeding augers
Wrapping material Parchment, aluminum laminated foil, plastic coated papers, other materials on request
Folding Bottom or length side fold
Standard packet shapes Brick/cube
Wrapper registration Photo-electric, for wrapper with printed scanning marks
Date coding By laser printer, inkjet or thermal transfer printer
End-of-line packaging By downstream fully automatic or semi-automatic case packer
Mode of operation Wrapping material unwinding, date coding, cutting, bag forming, product dosing and filling, packet closing, calibrating, discharge
Equipment Servo-driven main drive, individual servo-drives for wrapping material feed, dosing and cell lifting, corrosion-resistant materials in the filling area, central lubrication
Options CIP cleanable dosing unit, pneumatically operated tension axle, inkjet, several folding options for various products, discharge conveyor, USDA execution
Machine control PLC by Allen Bradley with touchscreen operating panel

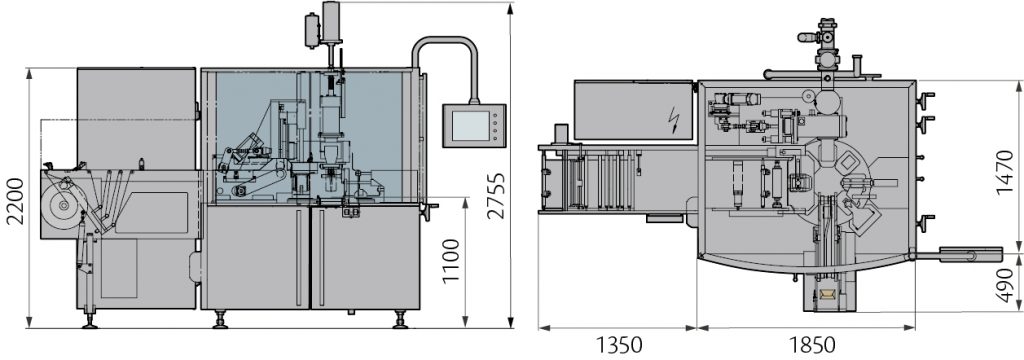

MULTIPACK 5500 Layout

MULTIPACK 5500 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Unwinding unit
search
Folding box
search
Dosing unit
search
End folding unit
search
Calibration unit
search
Product outfeed
