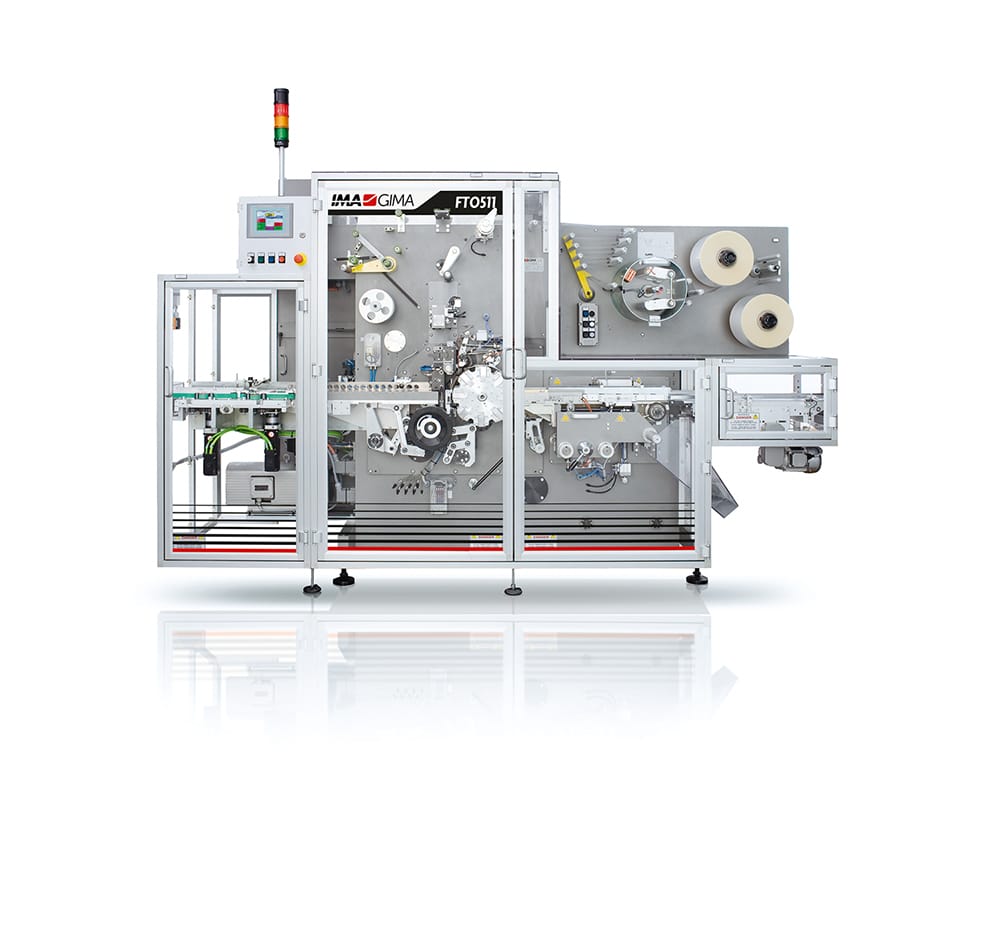

FTO511
Overwrapping

For ultra-high-speed overwrapping of display boxes, the FTO511 ensures maximum performance and incorporates a continuous carton feeding system to prevent products from pushing against each other, both at the start and at the end of the line.

For ultra-high-speed overwrapping of display boxes, the FTO511 ensures maximum performance and incorporates a continuous carton feeding system to prevent products from pushing against each other, both at the start and at the end of the line.

Ultra-high-speed overwrapping

The FTO511 handles up to 500 ppm and features a number of technically advanced solutions to ensure top quality appearance of the packages, enhancing the value of the confectionery items inside.

These include an inline tear-tape unit, a double reel holder and an automatic film splicing device.

settings_applications Production Plant

FTO511 Highlights

1.
Fitted with a tear-tape unit, a double reel holder, and an automatic film splicing device.
2.
Processing capability for all heat-sealable films, such as PP, PVC and Cellophane.
3.
Web-width up to 150 mm running on reels with max. diameter 300 mm and min. core diameter 76.2 mm.
4.
Oversize or undersize can be evaluated by our technical staff.
  • Technical Data
  • Machine Layout
TECHNICAL DATA FT0511
Production range Min. Max.
A 30 75
B 12 30
C 30 140
Production Up to 500 ppm
Average power consumption 20 kW
Operating pressure 6 bar
Maximum air consumption 100 Nl/min.
Weight 2,200 Kg

FTO511 Layout FTO511 Layout

FTO511 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Product infeed top view
search
Product infeed bottom view
search
Sealing area overview
search
Black seal
search
Reel automatic splice
search
6 Product side sealing
