FDZL
Dosing and Wrapping

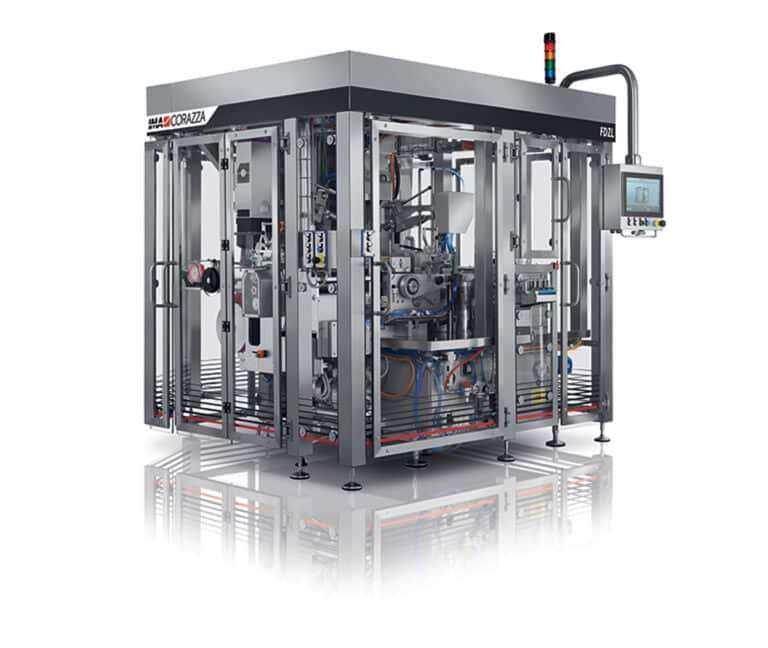

The FDZL is a double-headed automatic dosing and wrapping machine for yeast, available for cold or warm dosing with an independent-drive dosing unit, performing traditional portfolio-style, single-foil wrapping

The FDZL is a double-headed automatic dosing and wrapping machine for yeast, available for cold or warm dosing with an independent-drive dosing unit, performing traditional portfolio-style, single-foil wrapping

Cold, warm or hot dosing and wrapping of yeast

Thanks to a double-headed volumetric rotating filler and gasket-free dosing unit with servo-controlled augers as opposed to the traditional suck-in piston-rotary valve system, the FDZL yeast packaging solution handles 240 ppm.

Together with the standard cold or warm dosing configurations, an optional feature for hot portion sealing is available, although not with airtight completion.

IMA Corazza
settings_applications Production Plant
IMA Corazza

FDZL Highlights

1.
Motor-driven aluminium foil feeding, cutting and print-centring
2.
Water tight construction for water-jet washing purposes
3.
Fast and easy size change
4.
Optional check-weigher available

Product output options preview

keyboard_arrow_left keyboard_arrow_right
Yeast - Dosing & wrapping mini portion
Yeast - Dosing & Wrapping consumer portion
  • Technical Data
  • Machine Layout
Production capacity Up to 240 portions/min.
Full load current 3P x 400 Volt – 50 Hz – 18 Amp
Compressed air consumption 350 Nl/min. (min. op. pressure 6 bar)
Weight 2,600 Kg Approx.

Product dimensions

Shape A B C Weight
Square 40 max. 40 max. 34 max. 20g ÷ 50g
Rectangular 40 max. 41,5 max. 34 max. 20g ÷ 50g

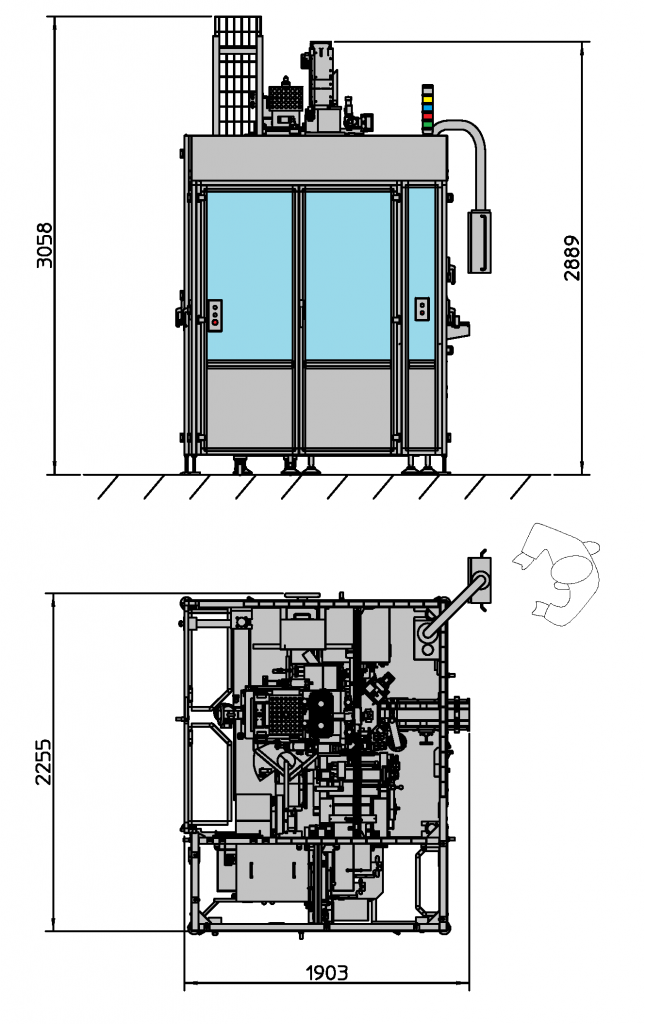

FDZL Layout

FDZL Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Shell forming
search
Dosing
search
Pressing unit
search
Grouping unit
search
Product outfeed
