FB SERIES
Dosing and Wrapping

The FB Series of dosing and wrapping machine for butter in square and rectangular portions, provides the optimum packaging solution at high or low speeds. Compact in size, each version ensures efficient performance and a top quality fold

The FB Series of dosing and wrapping machine for butter in square and rectangular portions, provides the optimum packaging solution at high or low speeds. Compact in size, each version ensures efficient performance and a top quality fold

Butter dosing and wrapping tailored to your needs

The FB Series is developed to suit the customer’s specific requirements in terms of processing speeds.

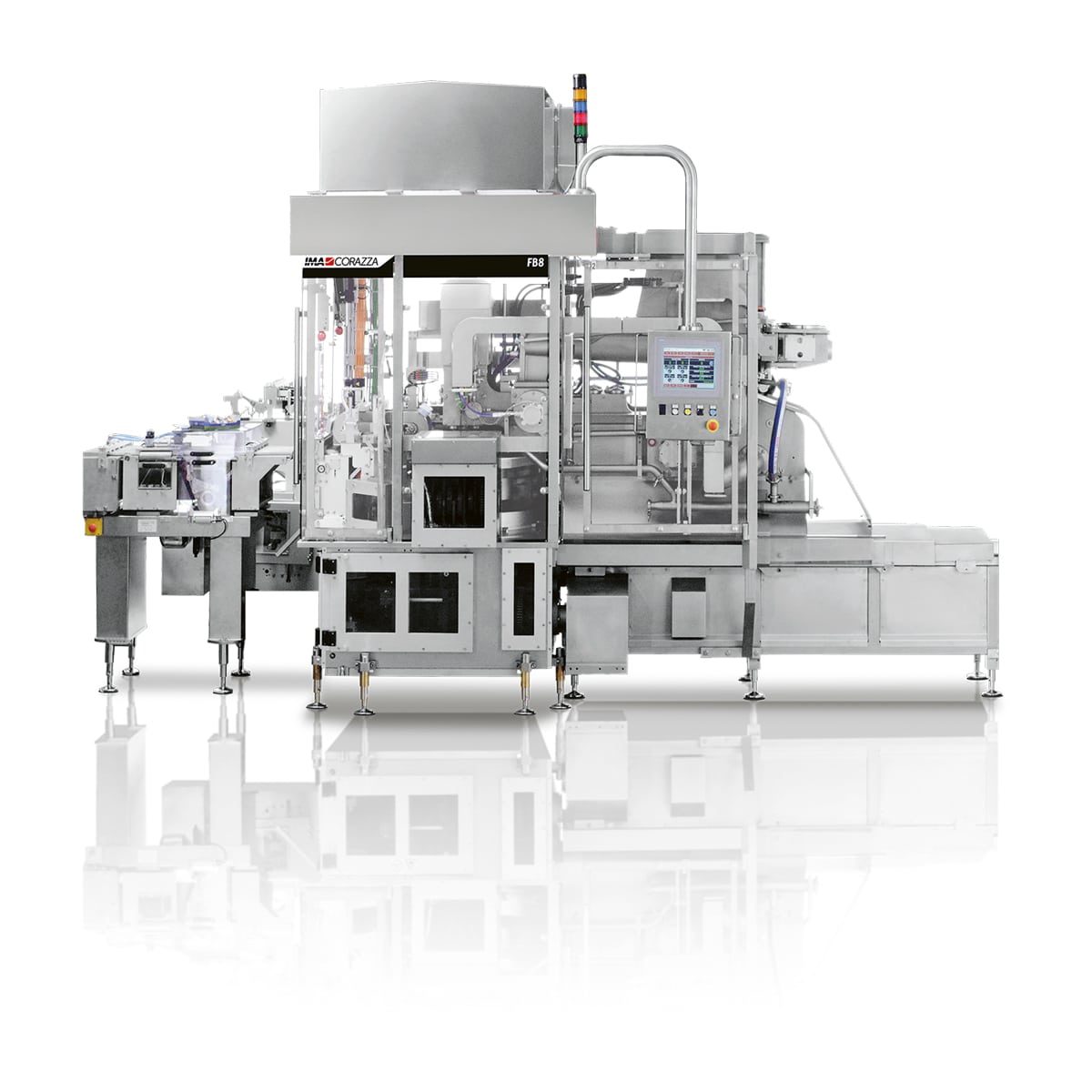

For customers requiring high-speed processing, the FB8 handles 800 ppm ranging from 7 to 20g. Thanks to a compact footprint, user-friendly HMI and a design which allows easy, quick changeover of the portion base size, the FB8 is the ideal choice for dairies wanting optimum productivity and efficiency.

The FB220 is a low-speed fully mechanical machine, offering a production capacity of up to 280 ppm of 7 to 25g wrapped portions.

IMA Corazza
settings_applications Production Plant
IMA Corazza

FB SERIES Highlights

1.
It features an independent, servo-driven dosing system
2.
The machine can be equipped with optional weight-checker featuring electronic feedback to each single dosing piston
3.
High efficiency and precise dosing accuracy

Product output options preview

keyboard_arrow_left keyboard_arrow_right
Butter Mini Portion - Dosing & Wrapping
  • Technical Data
  • Machine Layout
Machine model FB8 FB220
Production capacity Up to 800 portions/min. Up to 280 portions/min.
Full load current 3P x 400 Volt – 50 Hz – 18 Amp 3P x 400 Volt – 50 Hz – 5 Amp
Compressed air consumption 250 Nl/min. (min. op. pressure 6 bar) 100 Nl/min. (min. op. pressure 6 bar)
Weight 5,700 Kg approx. 2,250 Kg approx.
Shape Rectangular Square  Rectangular

Box dimensions



A (min ÷ max)
20 ÷ 30 30 max. 20 ÷ 30
B (min ÷ max)
20 ÷ 40 20 ÷ 50
C (min ÷ max)
7 ÷ 18 7 ÷ 18 6 ÷ 25
Weight (min ÷ max)
7g ÷ 20g 7g ÷ 20g 7g ÷ 25g

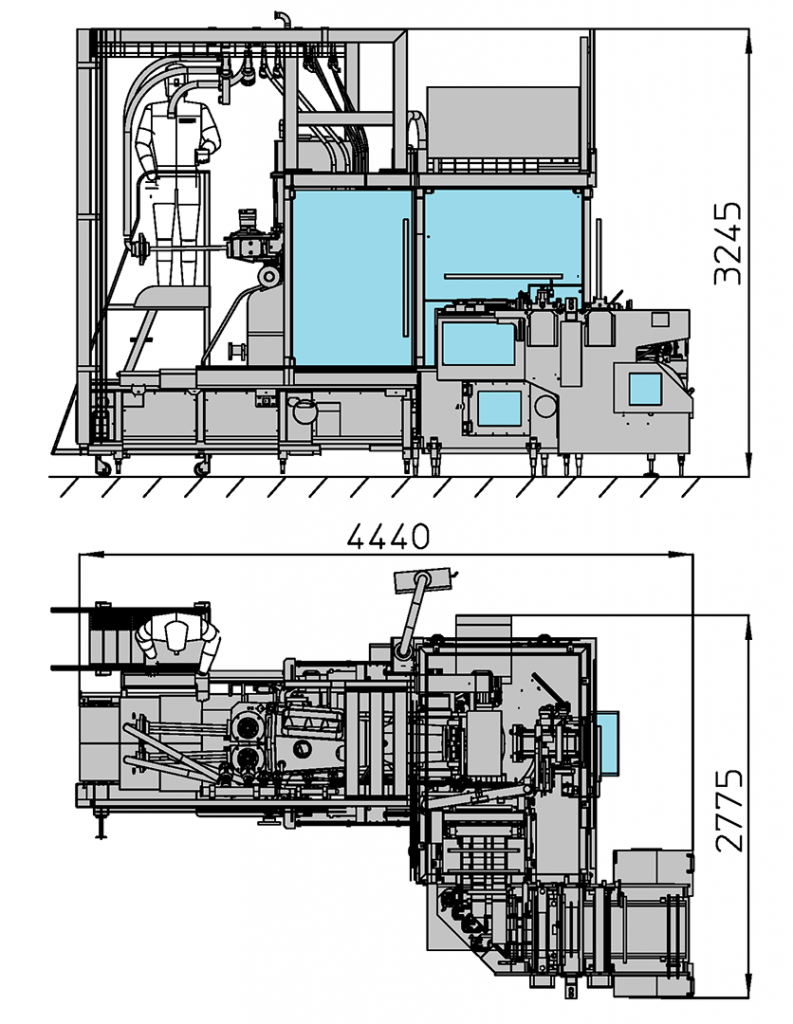

FB SERIES Layout FB SERIES Layout

FB SERIES Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Foil feeding
search
Shell forming
search
Dosing unit
search
Folding unit
search
Pressing unit
search
Product outfeed
