ECOPACK
Moulding and wrapping

Ideal for pasty products, the ECOPACK is a fully automatic moulding and wrapping machine performing end-side folding

Ideal for pasty products, the ECOPACK is a fully automatic moulding and wrapping machine performing end-side folding

Economical wrapping with extremely gentle product handling

Ideal for pasty products, the ECOPACK F1000/1500 is a fully automatic moulding and wrapping machine performing end-side folding, and ensuring extremely gentle product handling, low wrapping material consumption and excellent dosing accuracy (s=0,4 g for Qn=100 g).

With dosing weights ranging between 50 and 500 g and a nominal output of 120/125 ppm, the ECOPACK F1000/1500 wrapping machine is flexible and provides accurate dosing and reduces wrapping material consumption by up to 30% compared to traditional folding styles.

The CARTOMAT 8554 is a fully automatic wrap-around cartoner with carton closing by cold glue or hot melt (inserted flaps or gluing all around types).

Starting from flat blank cartons and with an output up to 250 cartons per minute, it allows many product configurations by handling 2-24 portions: from 2×1 in one layer up to 8×2 in one layer, or 4×3 in two layers. The CARTOMAT 8554 is suitable for working in line with small portions machine MULTIPACK 8358 as well as with the ECOPACK and other MULTIPACK machines.

IMA Benhil
settings_applications Production Plant
IMA Benhil

Ecopack Highlights

1.
Extremely gentle product handling
2.
Exceptional filling accuracy, extremely high reliability and long service life
3.
30% reduction on wrapping material consumption compared to traditional folds

Product output options preview

keyboard_arrow_left keyboard_arrow_right
Butter & Margarine - Wrapping consumer portion
Butter & Margarine - Cartoning
  • Technical Data
TECHNICAL DATA ECOPACK
Model F 120 F 140 F 165

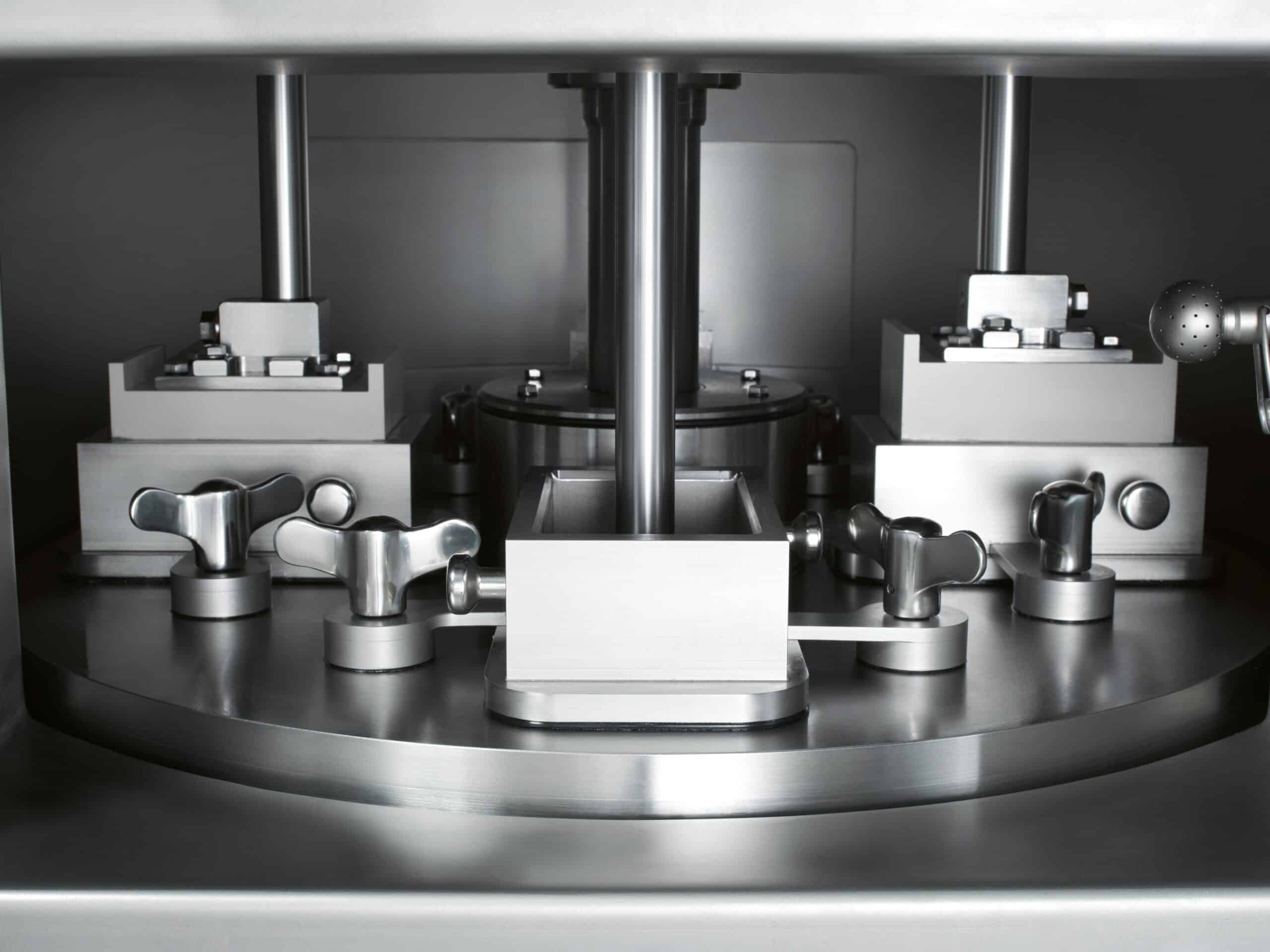

Dosing range 80 – 500 g 80 – 500 g 80 – 250 g
Nominal output Up to 120 p/min. Up to 140 p/min. Up to 165 p/min
Filling accuracy Better than s=1.0 for Qn < 100 g
Product feed Direct feed from the process plant, trough with feeding augers

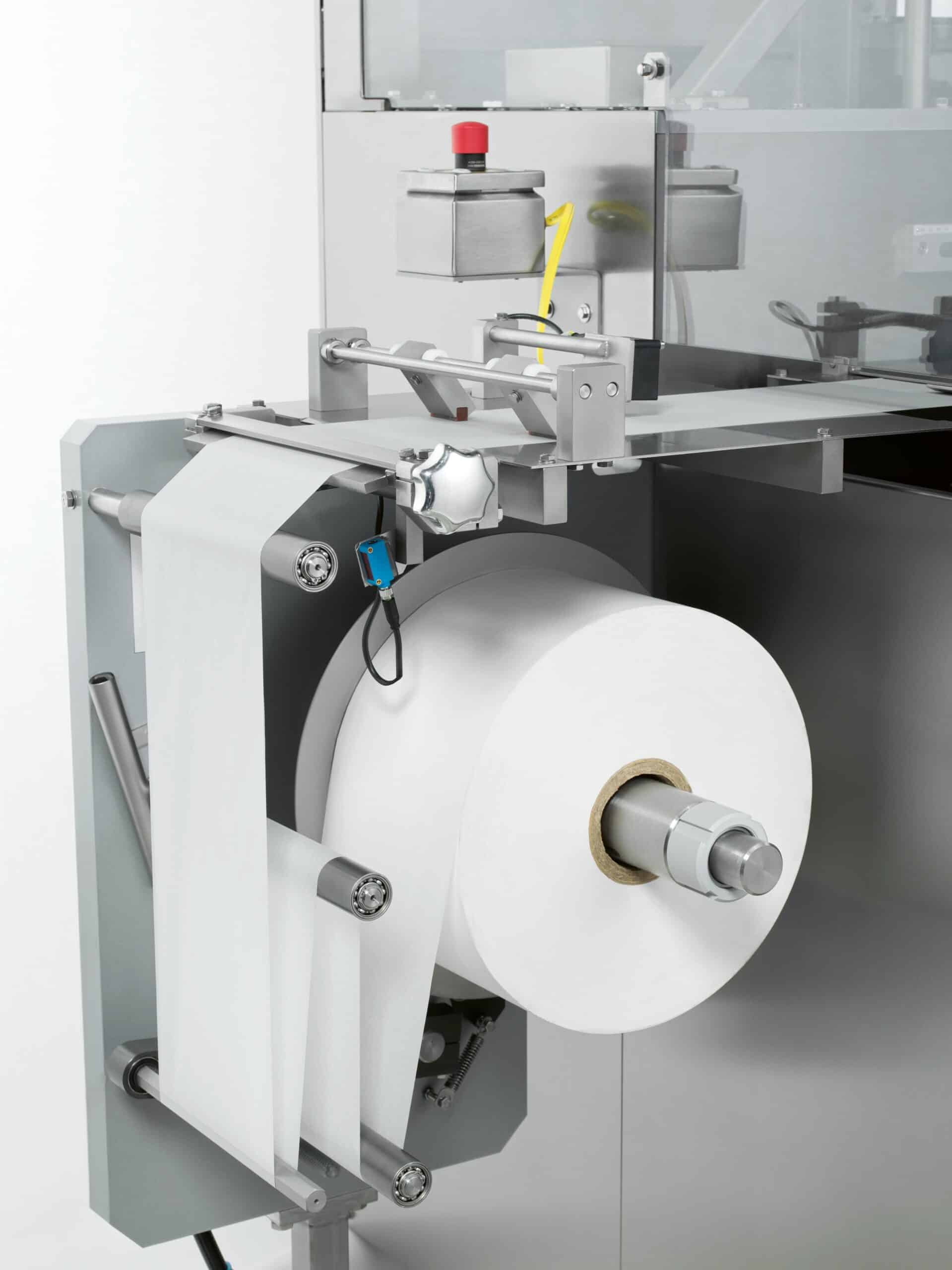

Wrapping material Parchment, aluminum laminated foil, plastic coated papers, other material on request
Folding End-side folding
Wrapper registration Photocell pendulum Photocell pendulum Photocell with servo motor
Date coding Hot embossing and inkjet
End-of-line packaging By downstream fully automatic or semi-automatic case packer
Mode of operation Wrapping material unwinding, date coding, cutting, receipt of the moulded product block with wrapper in the moving folding chambers, folding section to close packets at the head side, pressing section, ejection onto discharge belt and packet turning
Equipment By frequency controlled main motor, intermittent driven moulding wheel, discharge conveyor, non-corrosive or other proven food-grade materials in the product area
Special Equipment Double reel unwinding, tamper evident closure, product stamping, electrical weight adjustment
Machine control PLC with touch screen panel made by Siemens
