EB80
Boxing and Banding

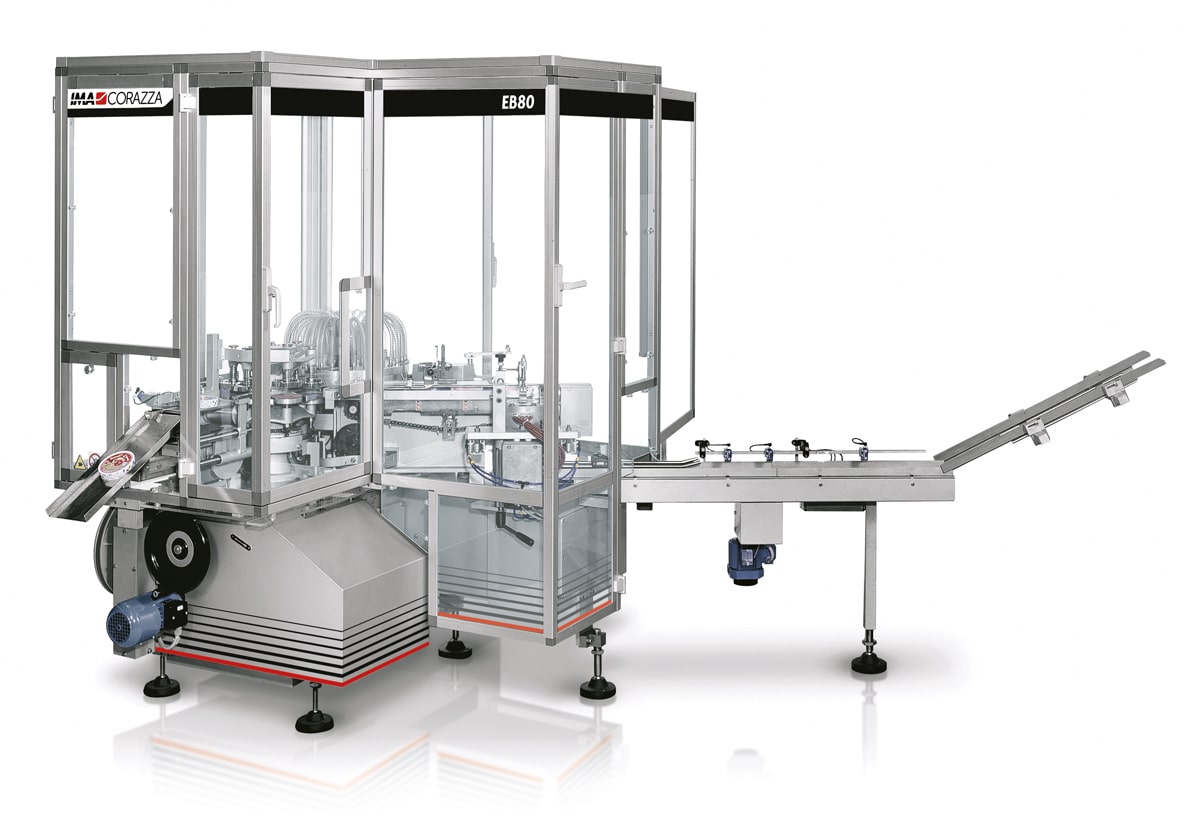

The EB80 applies paper sealing bands with an easy-to-open tear string around round boxes containing triangular portions of processed cheese. As an optional feature, the EB80 will apply round paper labels to box lids

The EB80 applies paper sealing bands with an easy-to-open tear string around round boxes containing triangular portions of processed cheese. As an optional feature, the EB80 will apply round paper labels to box lids

The secure banding solution with lid label option

Suitable for banding 1 to 4-layer boxes with the simple replacement of relevant size-dedicated parts, the EB80 can be equipped with an optional box calibrator to optimise band application on irregularly shaped boxes.

Both bands and labels are cold glue applications.

With the lid label unit, processing speeds reach 60 finished boxes/min, while the absence of a lid label unit enhances speed to 70/75 finished boxes/min.

IMA Corazza
settings_applications Production Plant
IMA Corazza

Product output options preview

keyboard_arrow_left keyboard_arrow_right
Cheese - Banding
  • Technical Data
  • Machine Layout
Production capacity with label unit Up to 60 boxes/min.
Production capacity without label unit Up to 70-75 boxes/min.
Full load current 3P x 400 Volt – 50 Hz – 6 Amp
Compressed air consumption 45 Nl/min. (min. op. pressure 6 bar)
Vacuum 40 m³/h (op. vacuum 600 ± 50 mm Hg)
Weight 1,500 Kg Approx.

Box dimensions

Box configuration
6/6 – 8/8 – 12/12
A (min ÷ max)
110 ÷ 112
B (min ÷ max)
21 ÷ 49
Layers 1 ÷ 4

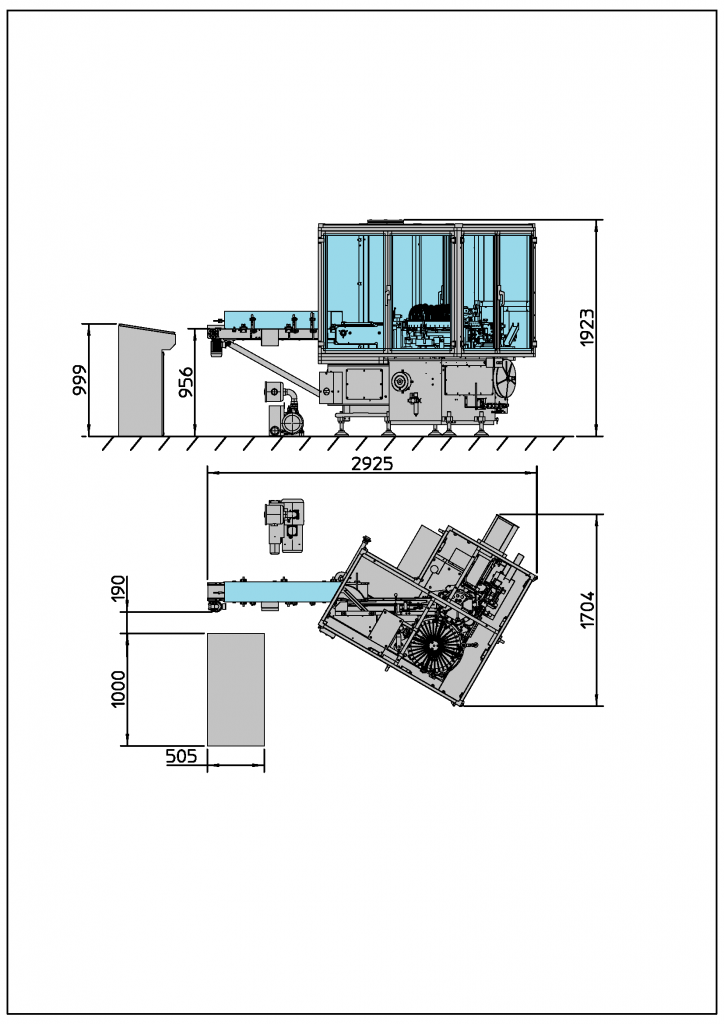

EB80 Layout
