CP38
Side loading case packing machine

Specifically designed to handle loose or bundled cartons, the CP38 is a high-speed, side-loading case packer benefiting from operator-friendly cantilever design ensuring complete accessibility and easy cleaning.

Specifically designed to handle loose or bundled cartons, the CP38 is a high-speed, side-loading case packer benefiting from operator-friendly cantilever design ensuring complete accessibility and easy cleaning.

High-speed case packing with unrivalled operator ergonomics.

The only case packer on the market where all the parts of the machine can be reached from the operator’s side without having to walk to the opposite side to reach the carton stacking unit, the CP38 is ideal for handling a wide range of products.

Using servo technology for extremely smooth product handling, the CP38 packs up to 30 cases/min and has a compact footprint. During loading, the case is positively erected and held in position on 2 sides enabling effective use of lower-quality corrugated cardboard.

The case erecting mechanism now ensures extremely low positioning of the horizontal case magazine, thus increasing machine autonomy.

nature_people

Sustainability

The IMA machines are designed so that the production process involves minimal environmental impact:

  • energy consumption is reduced to a minimum,
  • the waste materials are minimized,
  • compatibility with the use of recycled materials.
IMA BFB
settings_applications Production Plant
IMA BFB

CP38 Highlights

1.
Tool-free size changeover assisted by large, easy-to-use HMI, for increased speed and simplicity.
2.
Cases can be closed with adhesive tape or hot-melt glue.
3.
Full-size transparent panels interlocked with safety switches in order to ensure operator safety, compliant with European Standards.
4.
Options include case labelling and checking, case rejection at discharge and case overturning at discharge.
The CP38 side loading case packer is able to achieve high speed running in full aggregation mode. Production speed is one of the key factors impacting on the functionality and successful. Thanks to the case pre-opening station CP38 is able to reach the highest production speed.

Case Packer - Palletizer integrated versions

CP38 is available in different palletizer-integrated versions, according to the output speed required.

CP38 Thumbnail
  • Technical Data
  • Machine Layout
TECHNICAL DATA CP38
Product dimensions A B C
Min. 200 110 90
Max. 500 350 350
Max. speed Up to 30 Cases/min.

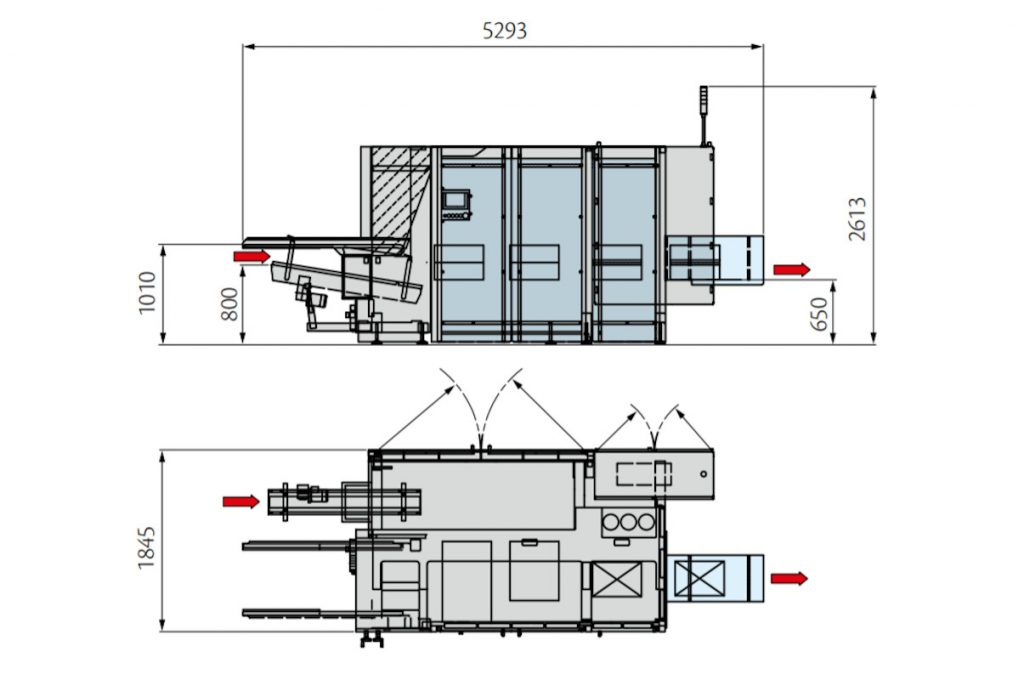

CP38 Layout CP38 Layout

CP38 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Case magazine
search
Case forming area
search
Case forming detail
search
Flap closing area
search
Flap closing detail
