BRI Series
Banding

Automatic banding machine for applying pre-cut self-adhesive banderole on round boxes of processed cheese

Automatic banding machine for applying pre-cut self-adhesive banderole on round boxes of processed cheese

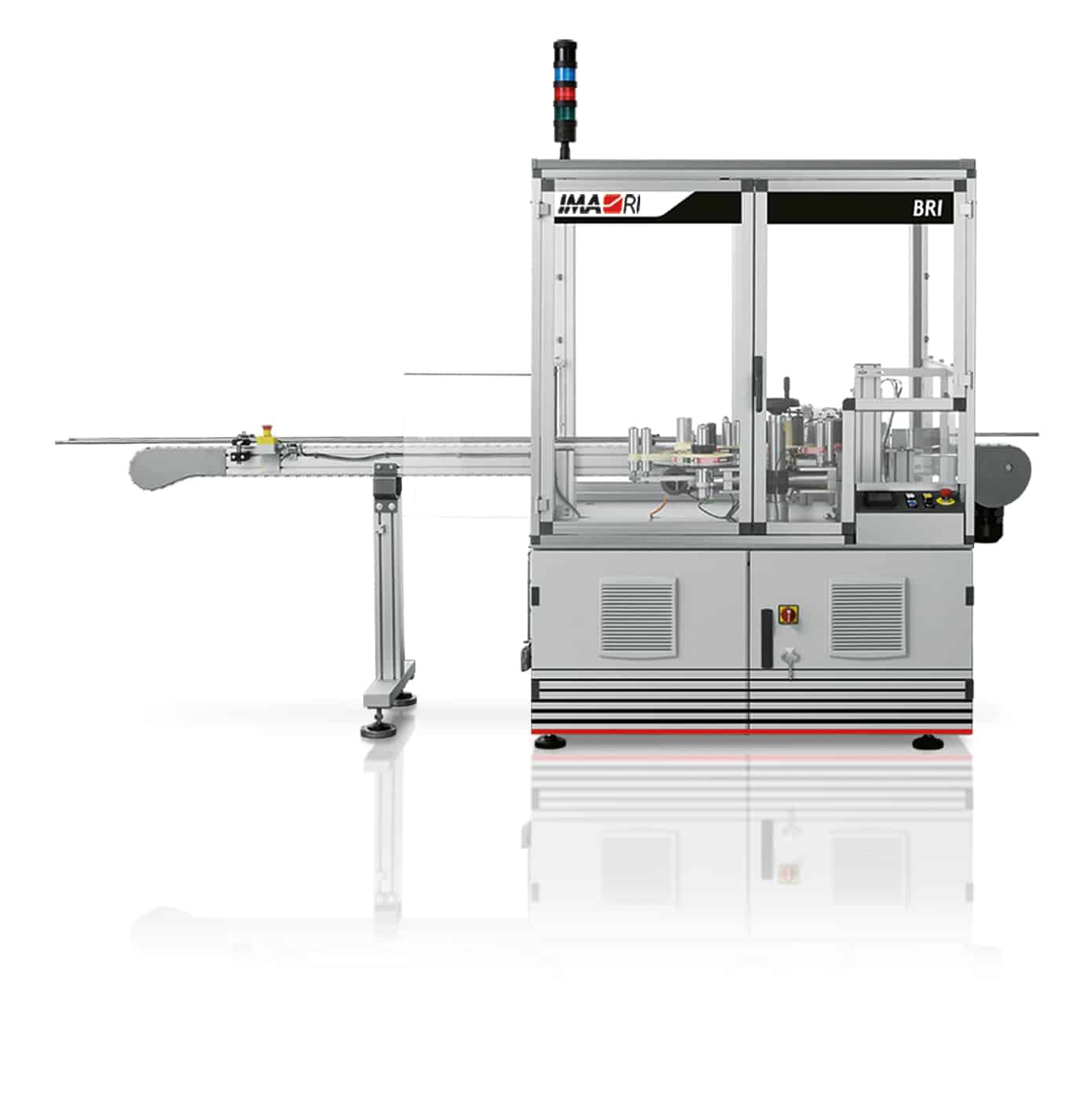

Automatic banding machine

Automatic banding machine for applying pre-cut self-adhesive banderoles on round boxes of processed cheese.

The BRI Series can be completed with a stacking unit system and can be available in single or double lanes configurations reaching a speed of up 75 boxes/min.

IMA R.I.
settings_applications Production Plant
IMA R.I.

Product output options preview

keyboard_arrow_left keyboard_arrow_right
Cheese - Banding
  • Technical Data
  • Machine Layout
Machine model BRI 103 BRI 103 DUO
Production capacity Up to 55 boxes/min. Up to 100 boxes/min.
Full load current 3P x 400 Volt – 50 Hz – 5 Amp 3P x 400 Volt – 50 Hz – 5 Amp
Compressed air consumption 50 Nl/min. (min. op. pressure 6 bar) 100 Nl/min. (min. op. pressure 6 bar)
Weight 800 Kg Approx. 1,200 Kg Approx.

Box dimensions

Box configuration Box configuration
6/6 – 8/8 – 12/12 6/6 – 8/8 – 12/12
A (min ÷ max) A (min ÷ max)
110 ÷ 112 110 ÷ 112
B (min ÷ max) B (min ÷ max)
14 ÷ 90 14 ÷ 90

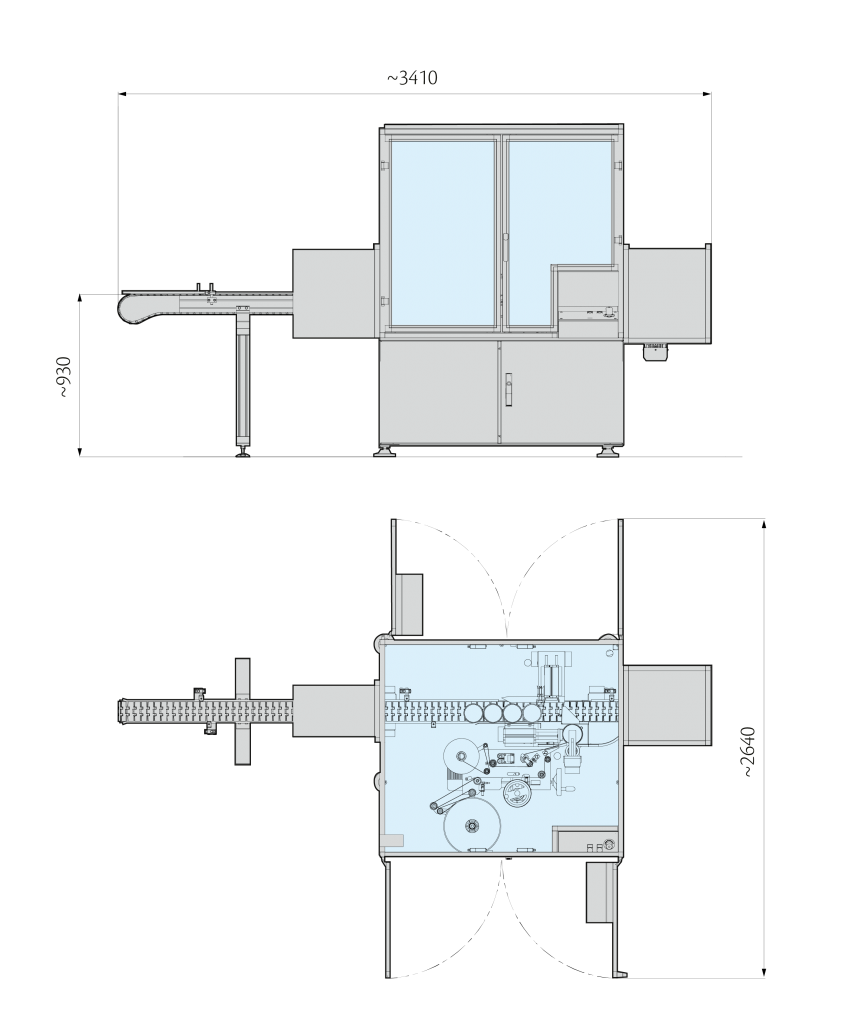

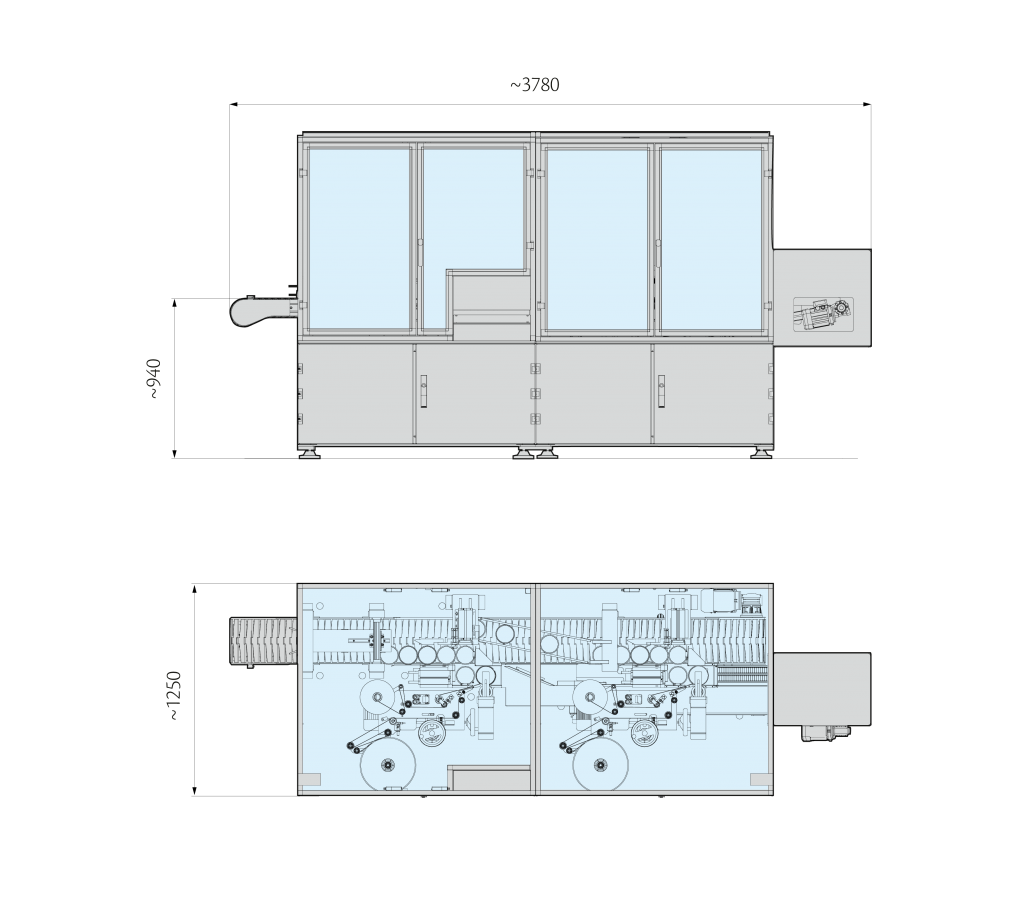

BRI Series Layout BRI Series Layout

BRI Series Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Box infeed
search
Reel banding unit
search
Banding unit detail
search
Box outfeed
