AF60
Over wrapping machine

Latest-generation, servo driven, technological solutions make the AF60 a premium over wrapper for collated material, easy-to-operate and able to process cartons at very high speeds despite its remarkably compact footprint.

Latest-generation, servo driven, technological solutions make the AF60 a premium over wrapper for collated material, easy-to-operate and able to process cartons at very high speeds despite its remarkably compact footprint.

More over wrapping speed, less floor space.

Ideal for pharma items, equipped with a high-speed stacking unit capable of stacking up to 225 layers/min., the AF60 can also be set up with a carton tilting unit (AF60AM) capable of standing on edge as many as 400 cartons/min.

Production speeds reaching 60 cycles/min. make it an ideal partner for any high-speed packaging line for cartons. Maximum accessibility to all components is possible due to the balcony design, so that cleaning and maintenance are facilitated.

The machine’s main standard features include a scissor knife, film transport by pincers, transversal edge-sealing, driven movement of bottom and lateral film folders, and reciprocating lateral sealing plates.

IMA BFB
settings_applications Production Plant
IMA BFB

AF60 Highlights

1.
Tool-free size changeover in just 5 minutes with digital indicators to assist with adjustments.
2.
Suitable for Track and Trace purpose.
3.
Ergonomic design with shaft featuring quick expansion lock device for rapid film reel change.
4.
Optional bypass mode improves Balcony style concept, ideal for easy line clearance.
5.
Product flow through the machine.
6.
Further optional groups include automatic bundle discharge, servo-driven step-by-step exit system and lateral sealing belts on exit.
  • Technical Data
  • Machine Layout
TECHNICAL DATA AF60
Wrapping film CELLOPH.PVC.PE.PP
Product dimensions A B C D E F H
Min. 20 12 60 60 25 60 100
Max. 360 120 230 360 170 260 450

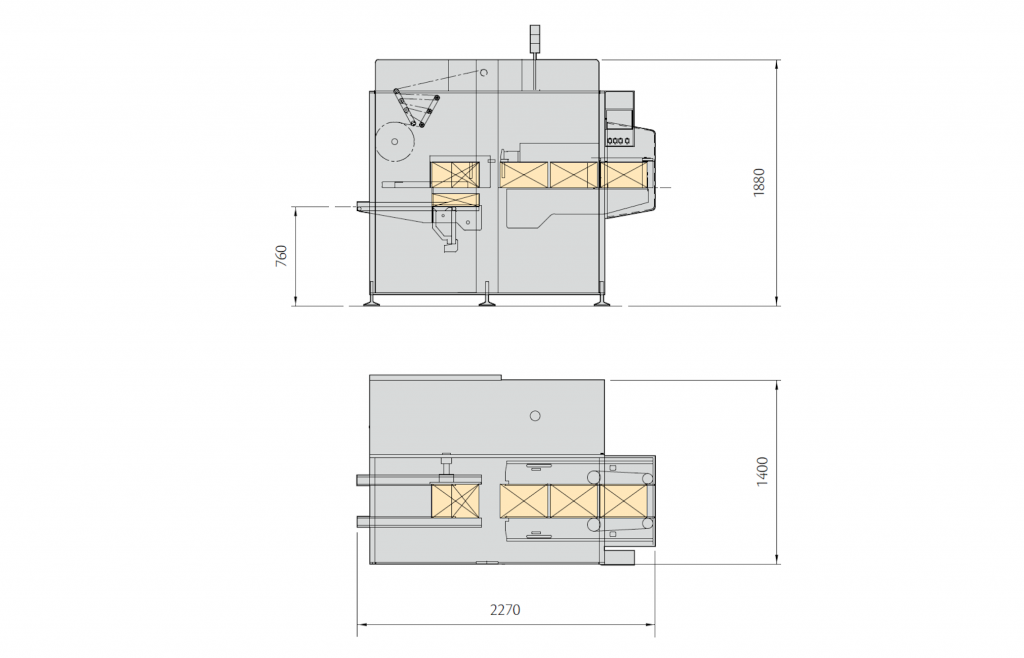

AF60 Layout AF60 Layout

AF60 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Stacking area
search
Scissor knife area
search
Folding area
search
Folding detail
