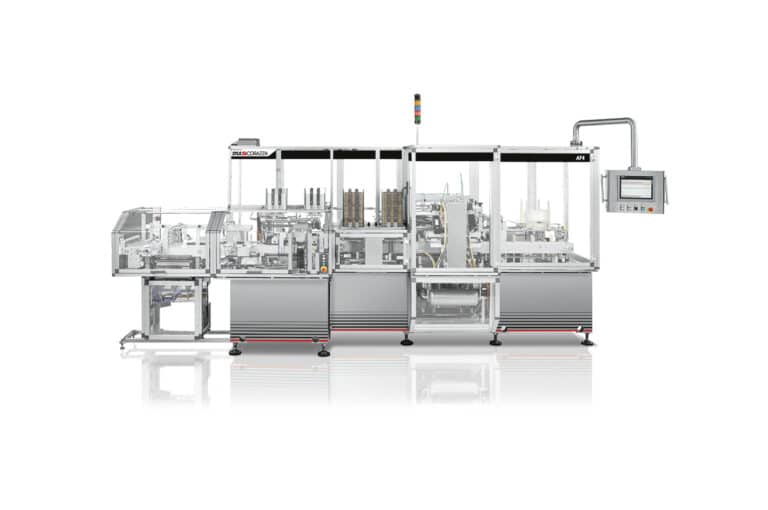

AF4
Cartoning

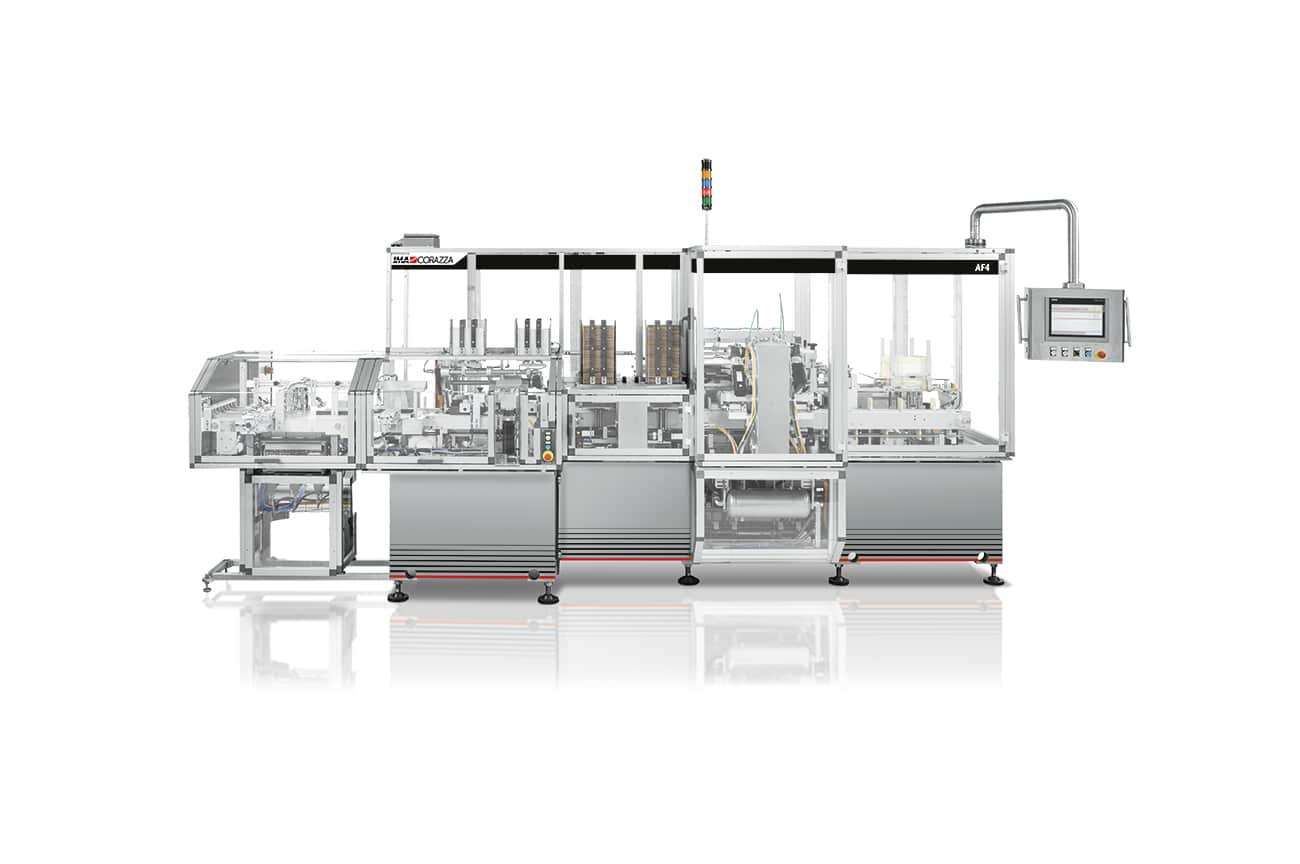

Built to process square or rectangular portions of processed cheese, the AF4 collects flat blanks from the magazine and automatically wraps them around the pre-formed bundles of cheese portions

Built to process square or rectangular portions of processed cheese, the AF4 collects flat blanks from the magazine and automatically wraps them around the pre-formed bundles of cheese portions

Cartoning made simple

With a capacity of up to 75 cartons/minute, the AF4 cartoning machine is able to 4-lane product configuration and between 1 and 4 layers.

IMA Corazza
settings_applications Production Plant
IMA Corazza

AF4 Highlights

1.
Interlayer group available
2.
Fake Bottom group available, pre-cut by magazine
3.
Compact footprint

Product output options preview

keyboard_arrow_left keyboard_arrow_right
Cheese - Cartoning
Cheese - Cartoning
  • Technical Data
  • Machine Layout
Production capacity Up to 75 boxes/min.
Full load current 3P x 400 Volt – 50 Hz – 12 Amp
Compressed air consumption 350 Nl/min. (min. op. pressure 6 bar)
Vacuum 5 m³/h (op. vacuum 600 ± 50 mm Hg)

Box dimensions

A (min ÷ max)
85 max.
B (min ÷ max)
80 ÷ 200
C (min ÷ max)
75 max.
Lanes 4
Layers 1 ÷ 4

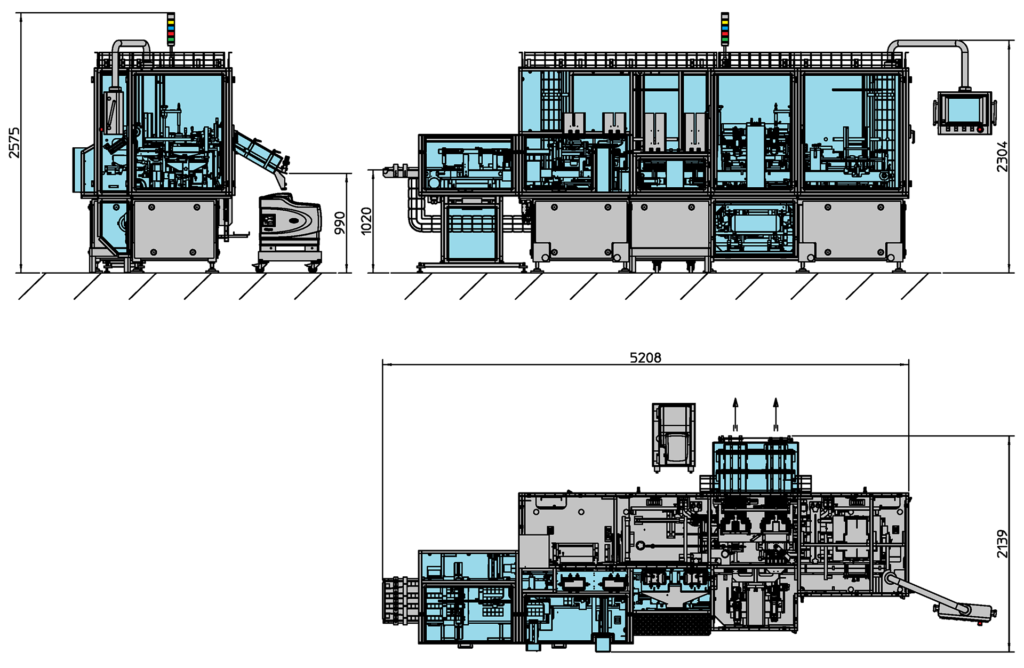

AF4 Layout
