AD8 Series
Cartoning

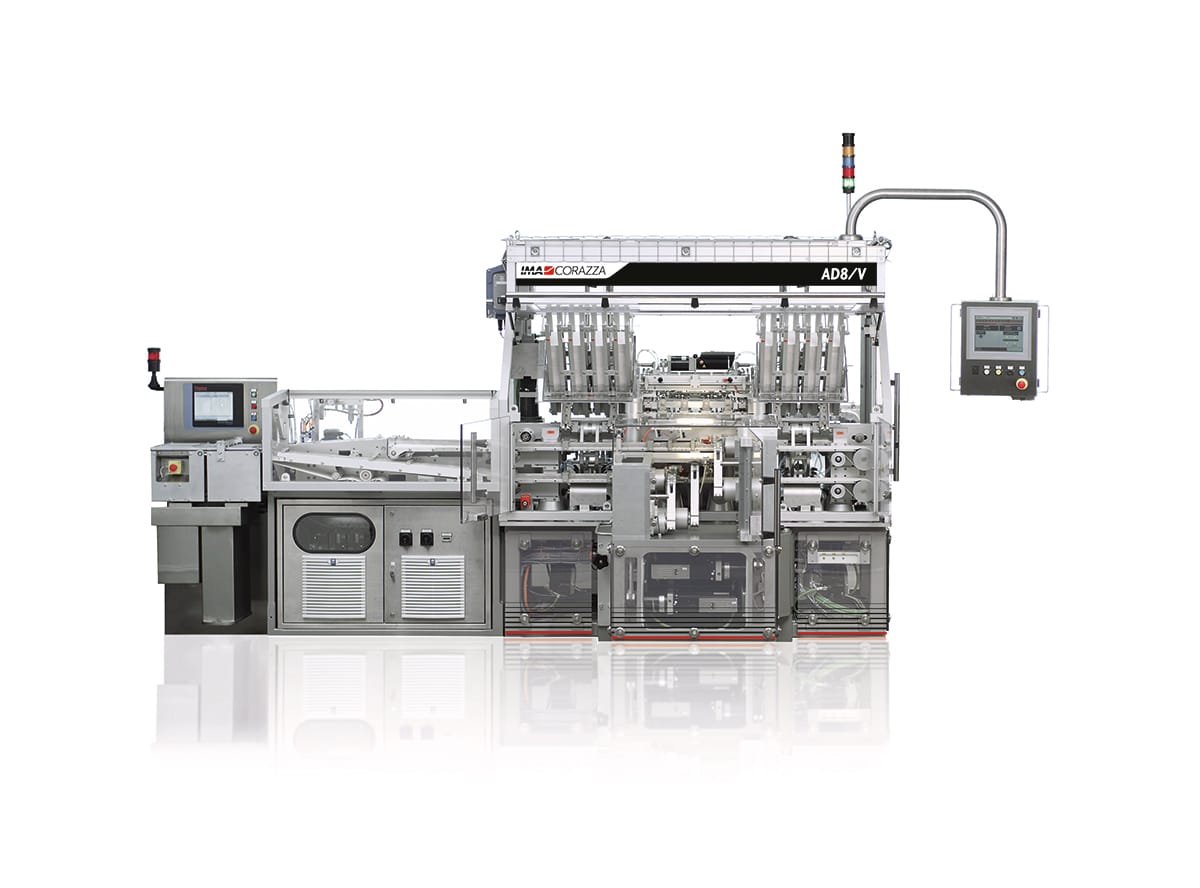

The AD8 Series is a wrap-around solution for the packaging of soup cubes fed from an upstream dosing machine. By taking flat blanks, the machine forms cartons with tucked-in end flaps and glued longitudinal seams

The AD8 Series is a wrap-around solution for the packaging of soup cubes fed from an upstream dosing machine. By taking flat blanks, the machine forms cartons with tucked-in end flaps and glued longitudinal seams

Efficient cartoning for soup cubes

The AD8 Series packs soup cubes into cardboard boxes that can be of different sizes ranging from those with a capacity of 2 to 48 cubes.

State-of-the-art motion control, thanks to fully electronic mechanisms, ensures excellent packaging results and the machine overall footprint is conveniently small, thus enabling also an easy access for operators needing to handle machine components. Processing speeds can reach a maximum of 600 cartons/min.

IMA Corazza
settings_applications Production Plant
IMA Corazza

AD8 Series Highlights

1.
Wrap-around cartoning from flat blanks saves on procurement costs
2.
Able to handle different-sized cartons
3.
Compact footprint and easy accessibility to machine components

Product output options preview

keyboard_arrow_left keyboard_arrow_right
Paste soup cubes - Cartoning
  • Technical Data
  • Machine Layout
TECHNICAL DATA AD8
Production capacity  Up to 400 boxes/minute
Full load current 3P x 400 Volt – 50Hz – 10 Amp
Compressed air 15 Nl/min (Min. Op. Pressure 6 bar)
Vacuum 10 m³/h (Op. Vacuum 600 ± 50 mm Hg)
Weight 3,000 Kg approx.



Box dimensions  A(MIN.÷MAX.)   (MIN.÷MAX.)   (MIN.÷MAX.)  Lanes Layers
30 ÷ 97 49 ÷ 189 11 ÷ 45 1 ÷ 4 1 ÷ 3
Wrap-around
STANDARD LINE: FD8-AD8



TECHNICAL DATA AD8V
Production capaciy Up to 600 boxes/minute
Full load current 3P x 400 Volt – 50Hz – 10 Amp
Compressed air 15 Nl/min (Min. Op. Pressure 6 bar)
Vacuum 10 m³/h (Op. Vacuum 600 ± 50 mm Hg)
Weight 3,000 Kg approx.



Box dimensions A (MIN.÷MAX.) (MIN.÷MAX.) (MIN.÷MAX.) Lanes Layers

30 ÷ 97

49 ÷ 189

11 ÷ 45

1 ÷ 4

1 ÷ 3

Wrap around
STANDARD LINE: FD12-AD8V

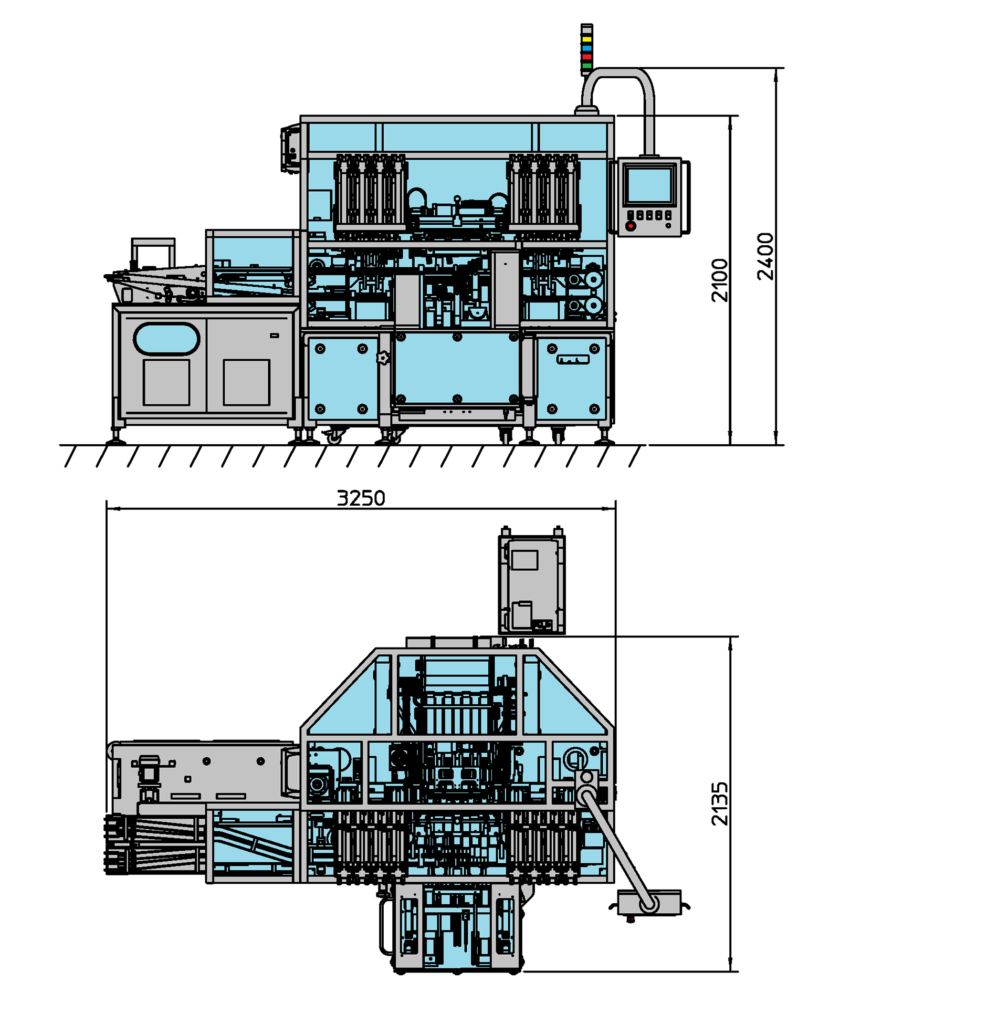

AD8 Series Layout

AD8 Series Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Product infeed
search
Blank denesting
search
Box forming
search
Finished box outfeed
