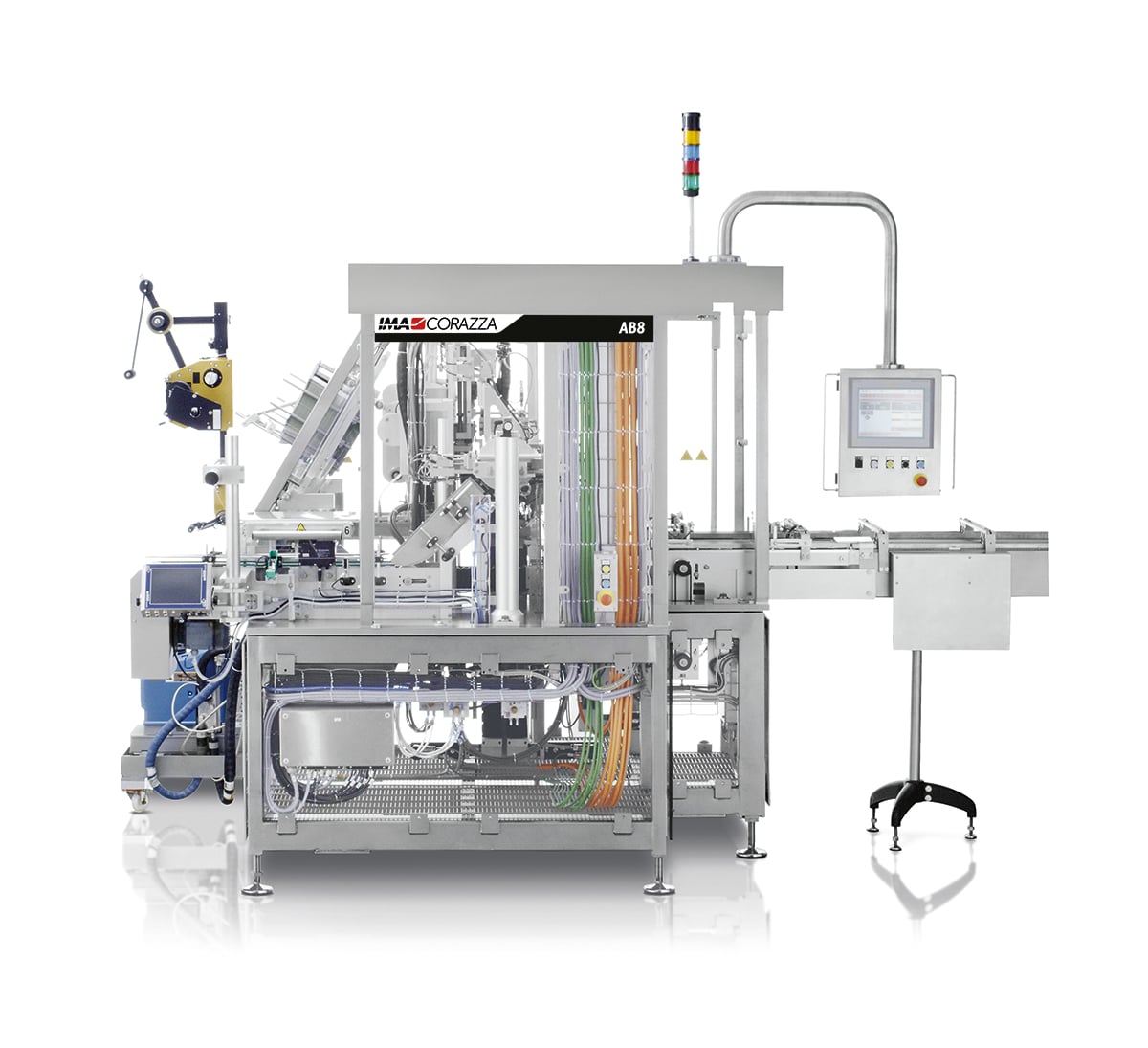

AB8
Cartoning

The AB8 is a wrap-around solution for boxing butter or yeast, drawing on flat blanks, which are sealed using hot-melt glue on the end flaps

The AB8 is a wrap-around solution for boxing butter or yeast, drawing on flat blanks, which are sealed using hot-melt glue on the end flaps

Butter and yeast, bundled and boxed

Processing stacked bundles received on the indexing table, the AB8 wraps a flat blank around the formed bundle, closes and seals the carton before capsizing it 180° so that portions are face-up.

The AB8 can process up to 80 boxes/min.

IMA Corazza
settings_applications Production Plant
IMA Corazza

Product output options preview

keyboard_arrow_left keyboard_arrow_right
Butter, margarine, yeast - Cartoning
  • Technical Data
  • Machine Layout
TECHNICAL DATA AB8
Production capacity 80 max. box / minute (Depending on Box Dimension)
Full load current 3P x 400 Volt – 50 Hz – 10 Amp
Compressed air 50 Nl/min. (Min. Op. Pressure 6 bar)
Vacuum 10 m³/h (Op. Vacuum 600 ± 50 mm Hg)
Weight 3,100 Kg approx.



Box dimensions A (MIN.÷MAX.) B (MIN.÷MAX.) C (MIN.÷MAX.) Lanes Layers
100 ÷ 235 100 ÷ 335 20 ÷ 75 4 ÷ 5 2 ÷ 5
Wrap around
STANDARD LINE: FB8-AB8

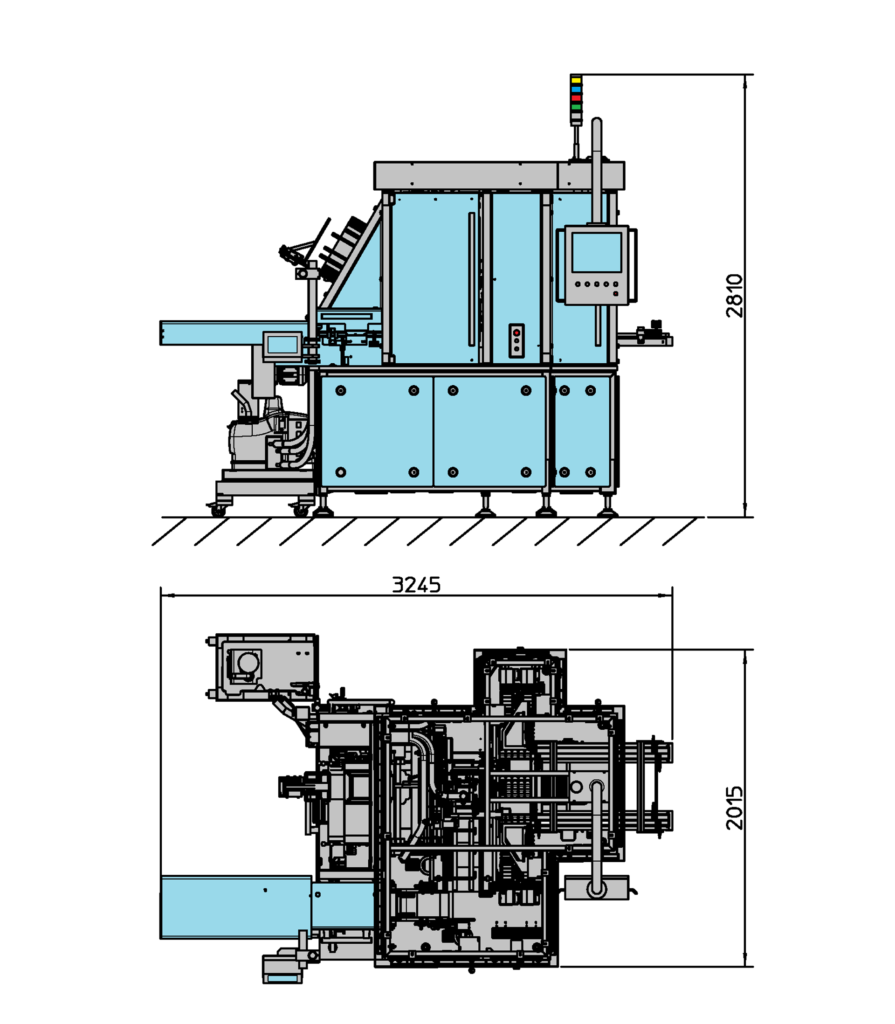

AB8 Layout

AB8 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Grouping and layering
search
Box blank denesting
search
Box filling and wrapping
search
Side gluing and closing
search
Pressing unit
search
Box outfeed
