MMP400
Wrap around case packing machine

Electronically driven, high-performance wrap around case packer, the MMP400 benefits from astute ergonomic design features enabling user-friendly operation and optimum productivity, with a flat blanks magazine positioned to allow easy case loading.

Electronically driven, high-performance wrap around case packer, the MMP400 benefits from astute ergonomic design features enabling user-friendly operation and optimum productivity, with a flat blanks magazine positioned to allow easy case loading.

Smart solutions catering for all Coffee packagings

Built to pack individual or bundled products into cases, display boxes or trays starting from flat blanks or pre-glued cases, the MMP400 wrap around case packer has been engineered to protect and preserve the highest integrity of the content. This system is so effective, it allows to handle all kinds of coffee containers: from single serve capsules to bags.

The MMP400 features servo technology enabling speeds of up to 30 cases/minute and extremely smooth handling.

Ergonomically positioned components help to significantly improve operator intervention and thanks to a newly designed case erection mechanism, the horizontal case magazine is as low as possible to achieve increased autonomy.  Cases are erected and held in position on two sides during loading.

IMA BFB
settings_applications Production Plant
IMA BFB

MMP400 Highlights

1.
Independent modules on infeed to allow for the efficient handling of all kinds of coffee containers: pillow bags, sticks, envelopes, block bottom bags, flowpacks, dispensing boxes, pre-glued boxes, filp top boxes, jars, capsules.
2.
Flexible machine offering the widest range of packaging solutions: wrap-around cases, RSC cases, trays, trays with internal or external hood and display boxes.
3.
Machine fully servo equipped.
4.
New 830 mm height case magazine for easy loading of cases, equipped with two driven belts to store display boxes with irregualr shapes.
5.
Can be equipped either with a 6 axes robot or with a 2 axes loading system (pusher or pick&place), allowing for efficient handling of any products even if they are unstable or critical to run at high speed.
6.
Cantilever design for optimum accessibility and easy cleaning.
7.
Internal or external lid unit available.
8.
MMP600 version available for bigger case sizes (C/width dimension up to 600mm)

Wrap around case packer - palletizer integrated versions

MMP400 is available in different palletizer-integrated versions, according to the output speed required.

MMP400 Thumbnail
  • Technical Data
  • Machine Layout
TECHNICAL DATA MMP400
MMP400 A B C
Case dimensions (MIN) 80 80 140
Case dimensions (MAX) 420 325 420
MMP600 A B C
Case dimensions (MIN) 80 80 250
Case dimensions (MAX) 420 325 600
Speed: up to 30 cases/min

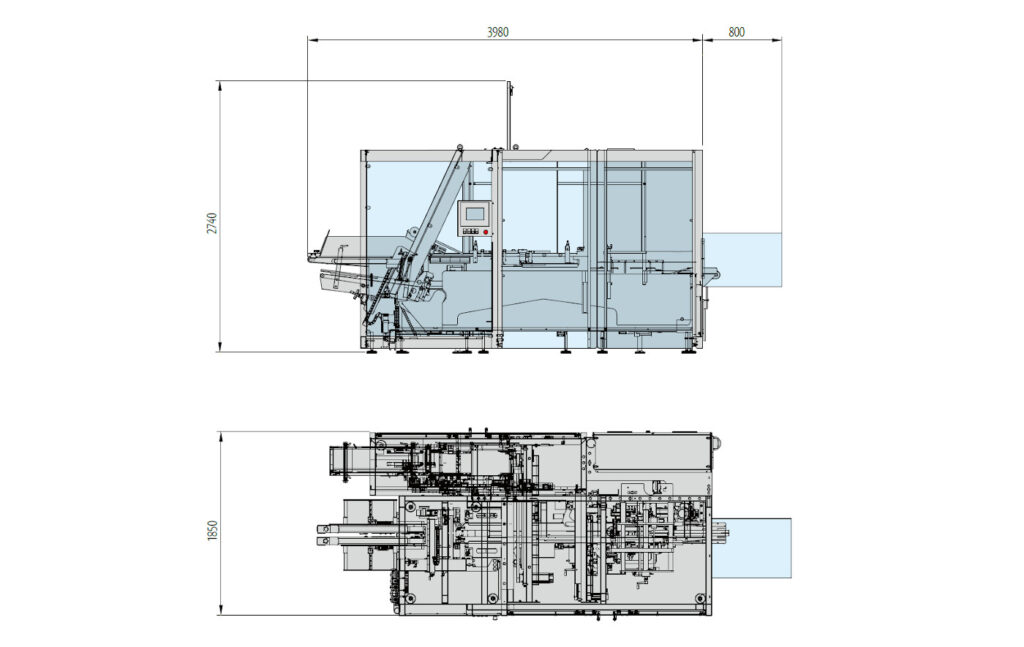

MMP400 Layout

MMP400 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Product infeed: cartons
search
Product infeed: bags, single row, high speed (90/100 bags/min.)
search
Product infeed: bags
search
Product infeed: square bags
search
Product infeed: jars
search
Product infeed: ncomp capsules, horizontal-single face display box presentation
search
Product infeed: ncomp capsules, vertical-single face display box presentation
search
Product infeed: ncomp capsules, vertical-double face tray presentation
search
Option: application of the lid
search
Case magazine
search
Case closure with hot melt guns
search
Case closing head
