MD20 PLUS
Tea bag packaging

Ultimate packaging flexibility is the hallmark of the MD20 PLUS, a versatile solution for knotted bags for tea and herbs, naked or in heatsealed or crimped outer envelopes, which also handles both pre-erected cartons and cartons from flat blanks.

Ultimate packaging flexibility is the hallmark of the MD20 PLUS, a versatile solution for knotted bags for tea and herbs, naked or in heatsealed or crimped outer envelopes, which also handles both pre-erected cartons and cartons from flat blanks.

Maximum flexibility

The MD20 PLUS produces non-heatsealable, double-chamber, knotted naked bags for tea and herbs at speeds of up to 200 bags/min. To protect the naked bag, the MD20 PLUS produces crimped outer envelopes and in order to further preserve the flavour of the tea or herbs, it also processes totally airtight, waterproof, heatsealed outer envelopes.

Greater variety is provided by the possibility of fitting different cartoning attachments starting from flat blanks or pre-erected cartons. Optional carton closing units handle tear-off, flip-top and other cartons styles.

Production is constantly monitored by dedicated supervision software and a video camera which checks knotting and teabag conformity.

nature_people

Sustainability

The MD20 Plus allows the use of sustainable packaging materials for a complete eco-friendly package.

IMA R.I.
settings_applications Production Plant
IMA R.I.

MD20 Plus Highlights

1.
Bags closed firmly with two subsequent knots using the same connected thread.
2.
Special rotating hopper ensures better handling of non-free-flowing products.
3.
Single bag rejection increases production efficiency and quality.
4.
Maximum flexibility for naked bags or bags in heatsealed or crimped outer envelopes.
5.
Knot conformity constantly controlled via video camera.
6.
Significant savings on packaging material reaching up to 8% on best-in-class solutions.
7.
Can be fitted with an automatic multi-row carton attachment using flat blanks.
8.
Reduced needs for spare parts.
In order to ensure a more firmly knotted teabag, safeguarding the flavour and contents of the tea or herbs, the MD20 Plus fixes each bag with two subsequent knots from single connected thread, without the need for auxiliary thread.
  • Technical Data
  • Machine Layout
TECHNICAL DATA MD20 PLUS (WITH CARTONING ATTACHMENT FOR PRE-GLUED CARTONS)
Overall dimensions
Output Up to 200 bags/minute
Bag capacity Up to 4.0 grams
Bag volume Max 14.2 cm³
Power installed 12 kW
Power consumption 6 kW
Air consumption 800 Nl/min. at 6 bar
Machine net weight max. 5,200 Kg



TECHNICAL DATA MD20 PLUS (WITH CARTONING ATTACHMENT FROM FLAT BLANKS)
Overall dimensions
Output Up to 200 bags/minute
Bag capacity Up to 4.0 grams
Bag volume Max 14.2 cm³
Power installed 13 kW
Power consumption 7 kW
Air consumption 800 Nl/min. at 6 bar
Machine net weight Max. 5,400 Kg

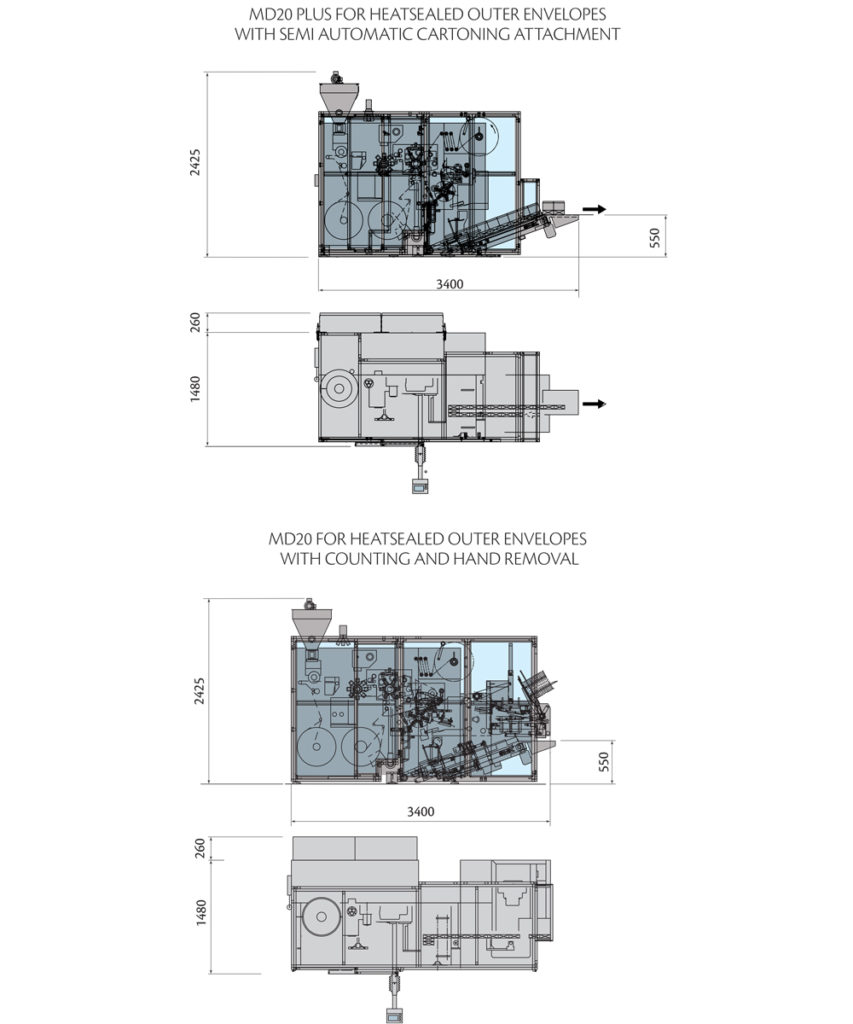

MD20 Plus Layout

MD20 Plus Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Pneumatic tea feeding system
search
Special rotating feeding unit for herbs
search
Video camera for knot conformity control
search
Electronic check weigher
