EC15
Tea bag packaging

The brand new EC15 is the first double chamber teabag packaging machine by IMA Maisa. Simple and compact solution for double chamber knotted teabags.

The brand new EC15 is the first double chamber teabag packaging machine by IMA Maisa. Simple and compact solution for double chamber knotted teabags.

Simply a double chamber.

The EC15 filter bag is based on a traditional non heatsealable double chamber bag and guarantees optimum infusion efficiency enabling the natural tea aroma to flow out.

No metal staple or additional packaging materials are required to fix the bag to the tag and the cotton thread. Fixing is achieved   by two simple knots – one to fix the cotton thread to the filter bag head and the other to fix the cotton thread to the tag. This innovative feature avoids the presence of metals during infusion, whilst guaranteeing, at the same time, a discerning and functional filter bag.

The EC15 flexibility allows the production of different filter bag sizes suitable to respond to dedicated market trends. A variety of packaging materials can be used on the EC15 for the production of heatsealed outer envelopes, such as cellophane, oriented polypropylene (OPP), paper PE, paper Alu Foil.

IMA MAI S.A.
settings_applications Production Plant
IMA MAI S.A.

EC15 Highlights

1.
Production speed: 150 bags per minute.
2.
Non heatsealable filter paper
3.
Knot technology: environmentally friendly thanks to absence of metal staple.
4.
Compact lay-out
5.
No lubrication
6.
Filter bag conformity controlled by a video camera, whose detection contributes to rejection signals collection.
7.
PC programmable control: all main machine stations have been provided with a specific product control device to guarantee the maximum product quality.
8.
Electronic counting unit for simple, fast count changeover with a minimum number of mechanical parts replacement.
Fruit of a joint effort with IMA Tea & Herbs R&D, the EC15 represents a new, revolutionary frontier for the tea bag market.
  • Technical Data
  • Machine Layout
TECHNICAL DATA EC15
Production speed (bags/min) Up to 150 bags or envelopes per minute
Teabag capacity
  • Up to approximately 3.0 g
  • Filter bag maxium volume: 9.0 cm3
Power required
  • Total installed power: 9 kw
  • Average power consumption: 2 kw
  • Maximum power consumption: 2,5 kw
Compressed air
  • Exercise pressure: 6 bar
  • Consumption: up to max. 10 Nl/min
Machine net weight

Max. 2200 kg

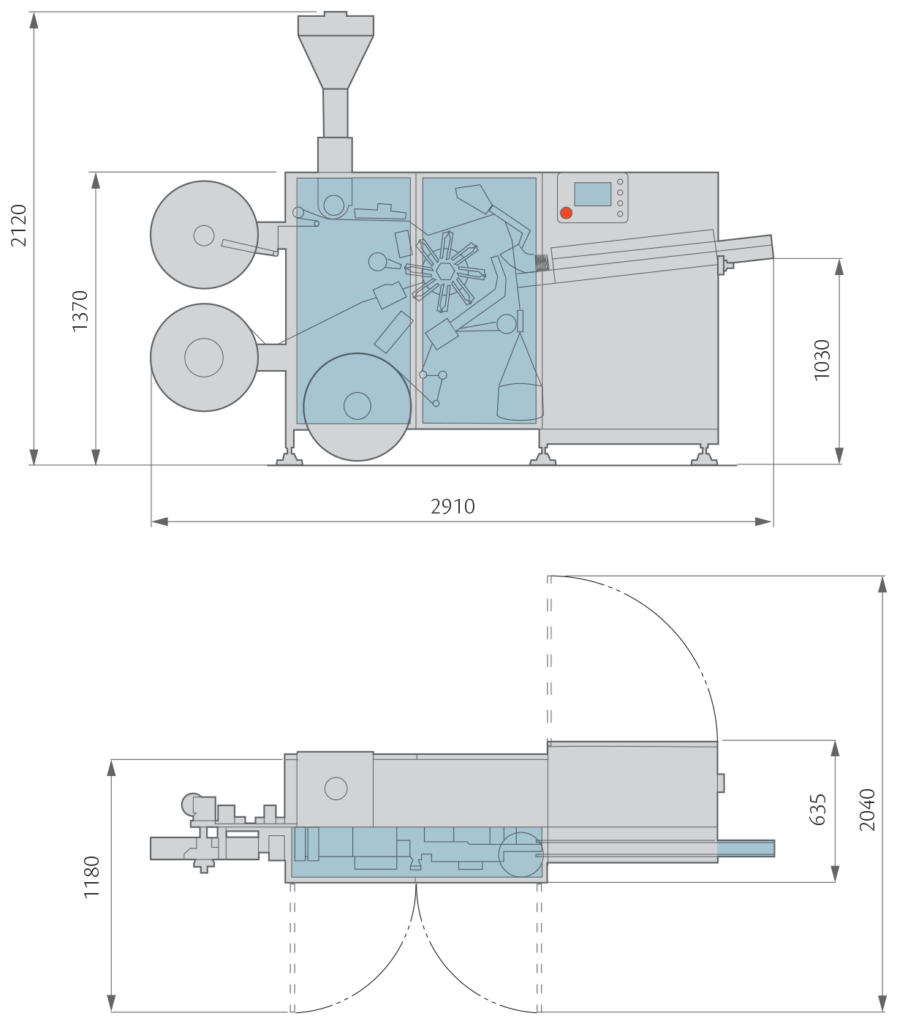

EC15 Layout

EC15 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Filter paper unwinding
search
Product dosing unit
search
Filter bag erection
search
Central weel
search
Filter bag knotting
search
Outer envelope paper cutting and filter bag insertion
search
Envelope splicing and registration sensor
