C59
Tea bag packaging

The highly compact C59 is the new packaging solution for heatsealed, single-chamber bags without string and tag. For tea, and especially for herbs, it accomplishes packaging into flow packs for improved product preservation.

The highly compact C59 is the new packaging solution for heatsealed, single-chamber bags without string and tag. For tea, and especially for herbs, it accomplishes packaging into flow packs for improved product preservation.

Bag and pack. Inside out.

Conceived to enhance the look and feel of essential single-chamber bags, the C59 produces gusseted, string and tag-free, heatsealed filter bags. Reaching speeds of up to 900 bags/minute, it processes black tea and is an ideal choice for non free-flowing products.

Featuring an integrated flow pack unit as standard, the C59 completes the packaging process by inserting counted naked bags into heatsealed flow packs, which can be personalised by the customer.

A unique solution as of today, full integration of this unit enables single overall process control covering each step from bag forming to flow pack sealing, as well as enabling a surprisingly limited footprint.

IMA Tea & Herbs
settings_applications Production Plant
IMA Tea & Herbs

C59 Highlights

1.
Full integration of flow pack unit enables total process control and extremely compact footprint.
2.
Gusseted single-chamber bags give tea or herbs more room to move enabling better infusion.
3.
Flow pack, ideal to ensure product preservation for herbs, also avoids need for outer cellophane wrapping.
4.
High production speed: up to 900 bags/minute on integrated equipment, without efficiency loss usually due to separate inline processing.
5.
Continuous flow doser and forced filling mechanism to accelerate process and significantly enhance productivity.
6.
Automatic filter paper and film splicing units further enhance production efficiency.
7.
Single-source electronic componentry to ensure 100% compatibility and servicing efficiency.
8.
Easy connection to end-of-line equipment allows customers to benefit from final packaging diversification.
Bag and pack in one machine enables maximum process control over all aspects and provides customers with a highly efficient, space-saving solution for higher volume requirements for both black tea and herbs.
  • Technical Data
  • Machine Layout
TECHNICAL DATA C59
Machines speed Up to 900 bags/minute
Teabag Capacity Max 3,125 grams
Filter bag maximum volume 9,5 cubic centimeters
Power required of basic machine Total installed power: 38 kW
Average power consumption: 4,5 kW
Maximun power consumption: 8,6 kW
Note: consumption depends on the thermic groups fitted on the machine
Compressed air Exercise pressure: 6 bar
Consumption: up to max. 235 Nl/min.
Machine net weight  Max 4580 Kg

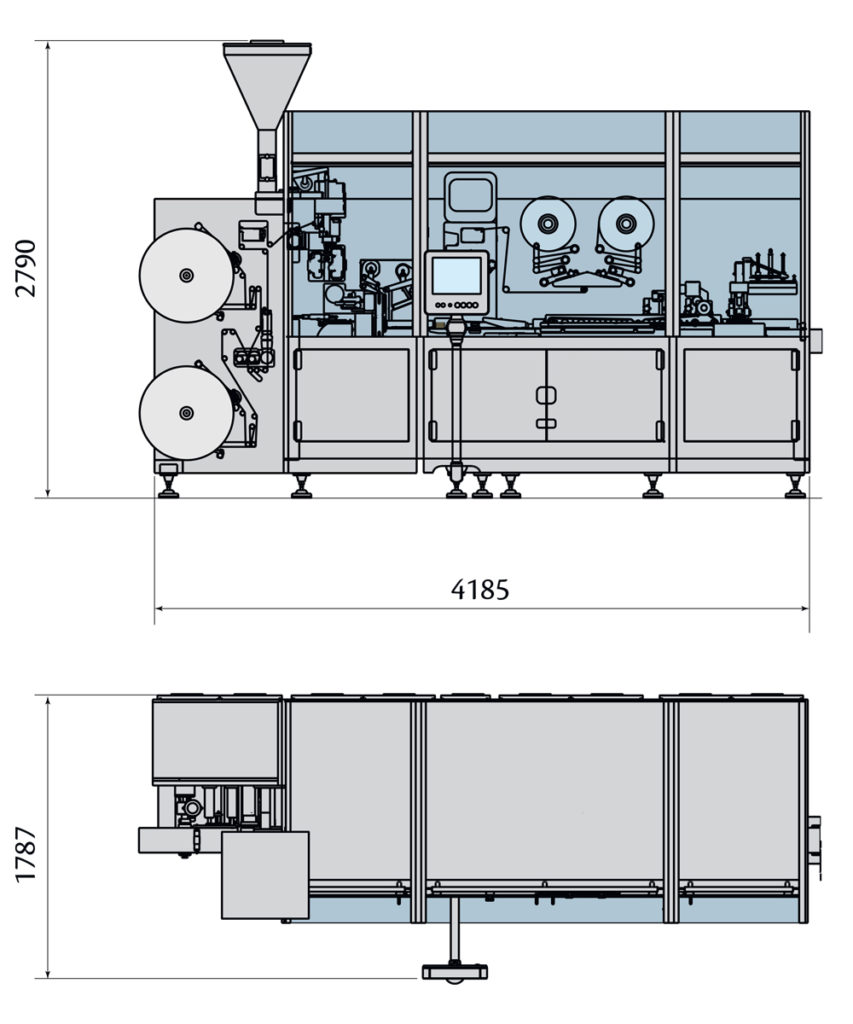

C59 Layout

C59 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Filter paper automatic splicing
search
Filter paper tube forming
search
Filter paper alignment
search
Filter bag sealing
search
Misplaced product
search
Flow pack film automatic
